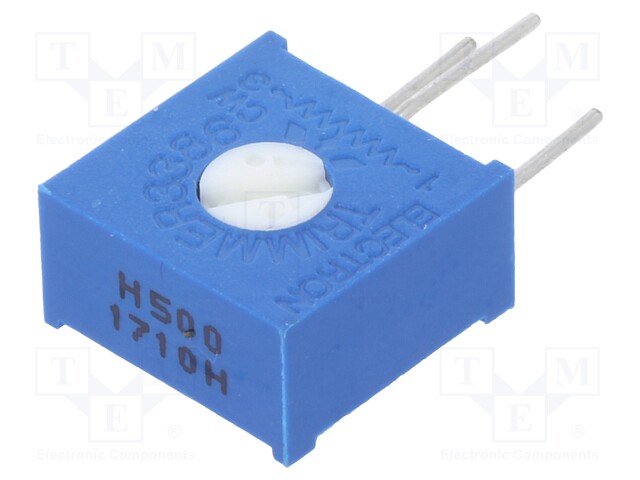

Potentiometer: mounting; single turn,vertical; 50Ω; 500mW; ±10%

    Multiples: 1.0
    Minimum quantity: 5.0
    Product code: 1028H-50R
    Manufacturer: SR PASSIVES
    Manufacturer code: 1028H-50R
    • Mounting
    • Power
    • Resistance
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Max. operating voltage
    • Kind of potentiometer
    • Kind of potentiometer
    • Type of potentiometer
    • Characteristics
    • Mechanical rotation angle
    • Potentiometer standard
    • Torque
    • Electrical rotation angle

    1.12 € 1.12 € (wo VAT) 1.12 EUR

    1.12 €

    This combination does not exist.

    Add to Cart

    Specification for Potentiometer: mounting; single turn,vertical; 50Ω; 500mW; ±10%

    Mounting THT
    Power 500mW
    Resistance 50Ω
    Operating temperature -55...125°C
    Tolerance ±10%
    Terminal pitch 2.5x5mm
    Max. operating voltage 250V
    Kind of potentiometer single turn, vertical
    Type of potentiometer mounting
    Characteristics linear
    Mechanical rotation angle 280°
    Potentiometer standard 3/8"
    Torque 2Ncm
    Electrical rotation angle 260°
