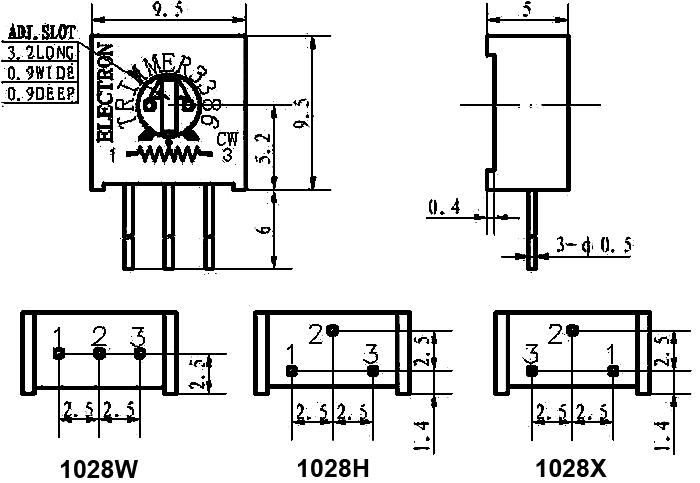

Spetsifikatsioon tootele Potentiometer: mounting; single turn,vertical; 50Ω; 500mW; ±10%
| Mounting | THT |
| Power | 500mW |
| Resistance | 50Ω |
| Operating temperature | -55...125°C |
| Tolerance | ±10% |
| Terminal pitch | 2.5x5mm |
| Max. operating voltage | 250V |
| Kind of potentiometer | single turn, vertical |
| Type of potentiometer | mounting |
| Characteristics | linear |
| Mechanical rotation angle | 280° |
| Potentiometer standard | 3/8" |
| Torque | 2Ncm |
| Electrical rotation angle | 260° |
