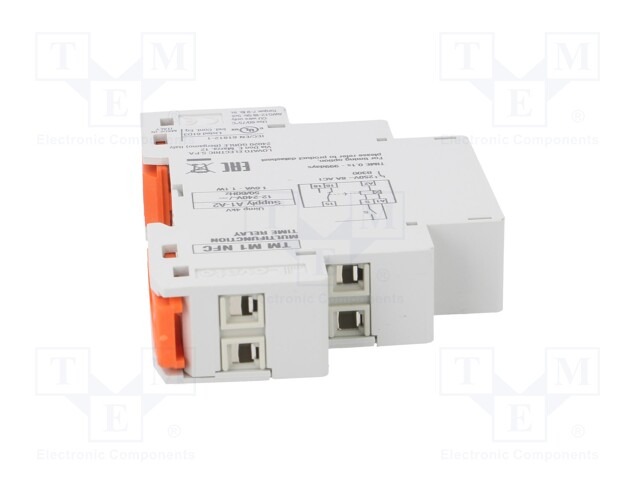

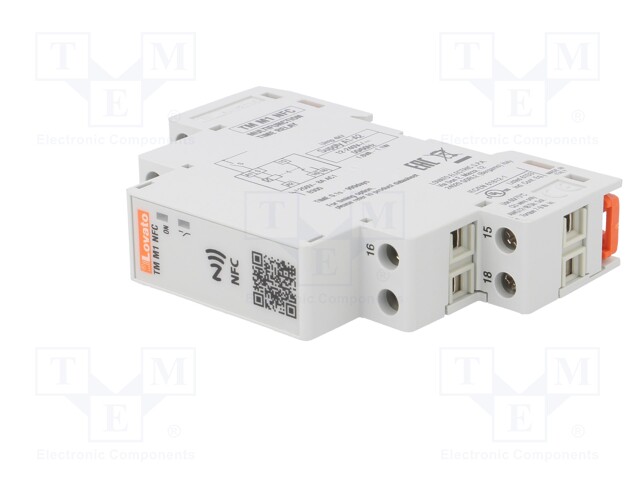

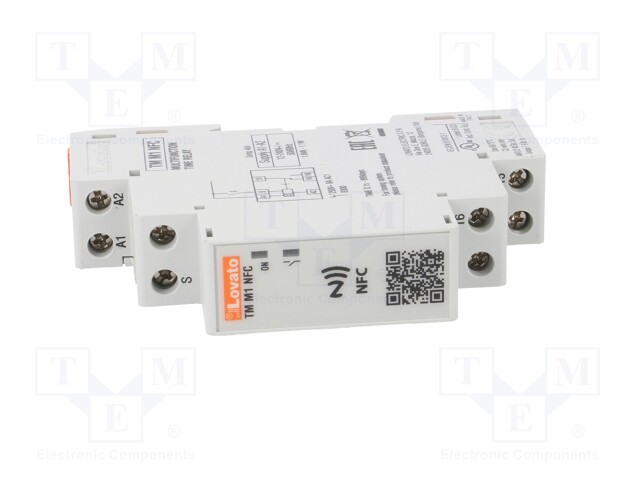

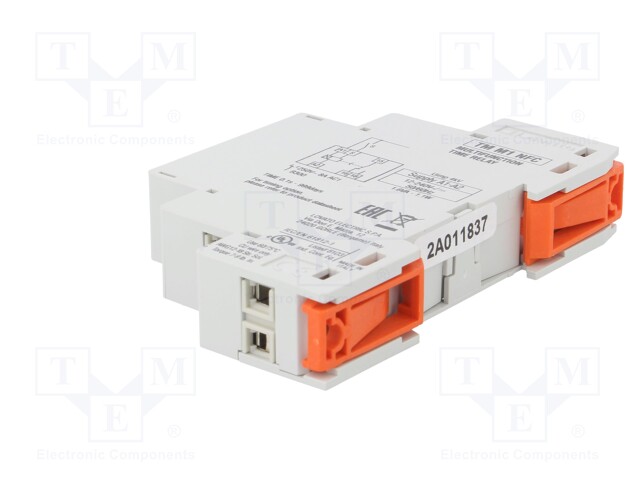

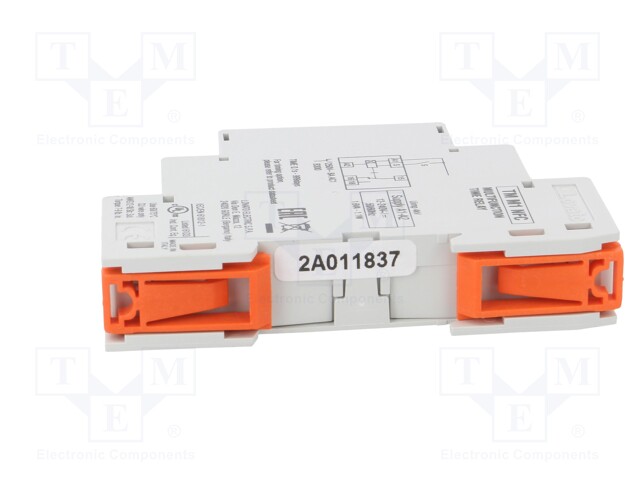

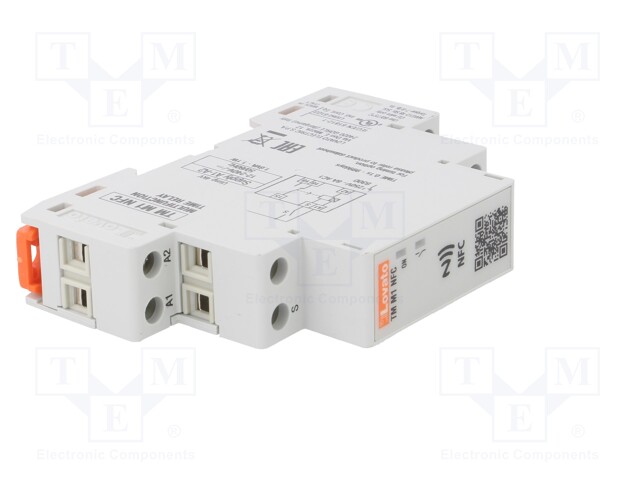

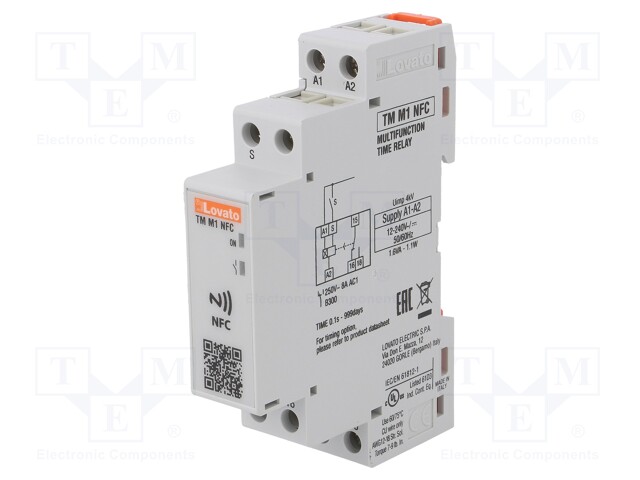

Timer; 1÷10days; SPDT; 250VAC/8A; 12÷240VAC; 12÷240VDC; DIN
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
TMM1NFC
Tootja: LOVATO ELECTRIC
Tootja tootekood: TMM1NFC
Product downloads
Spetsifikatsioon tootele Timer; 1÷10days; SPDT; 250VAC/8A; 12÷240VAC; 12÷240VDC; DIN
| Mounting | for DIN rail mounting |
| Supply voltage | 12...240V AC, 12...240V DC |
| Operating temperature | -20...60°C |
| IP rating | IP40 (from the front) |
| Type of module | timer |
| Kind of output | SPDT |
| Indication | LED |
| Electrical connection | screw terminals |
| Counting range | 1...10days |
| Counter operation modes | ON and OFF delay, ON for the set interval, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first |
