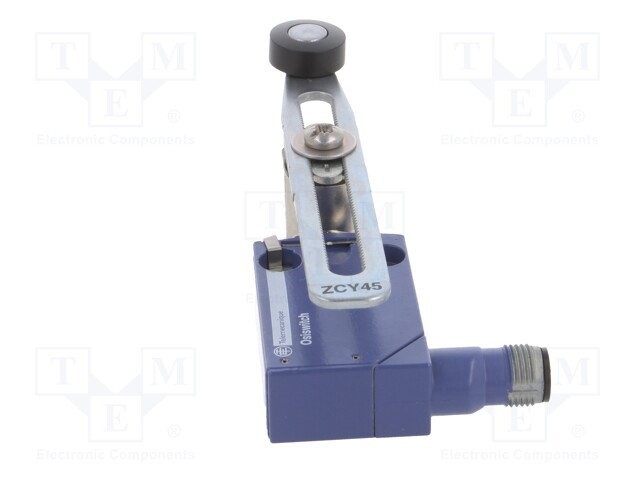

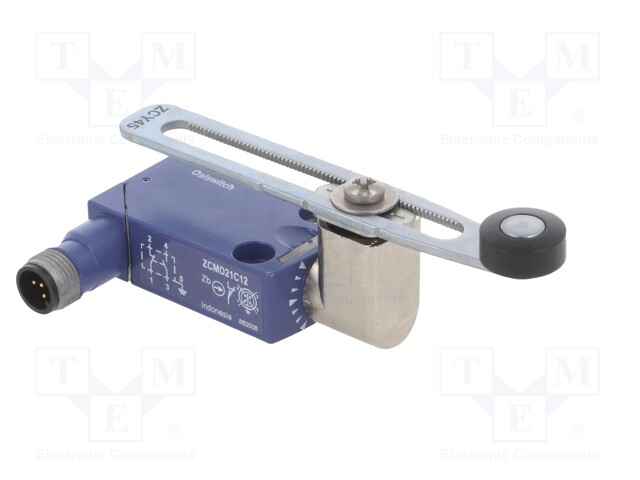

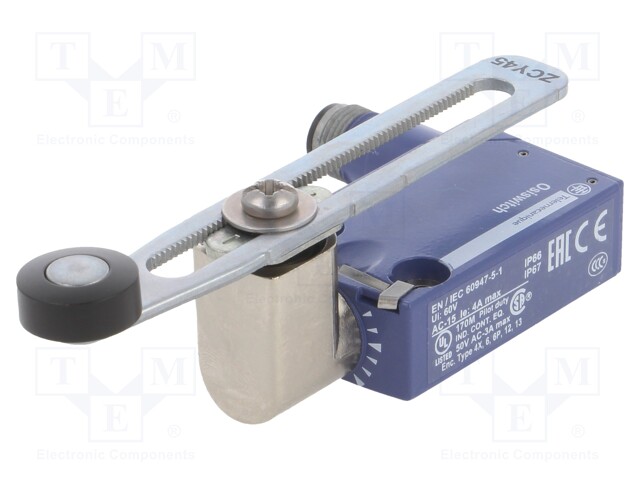

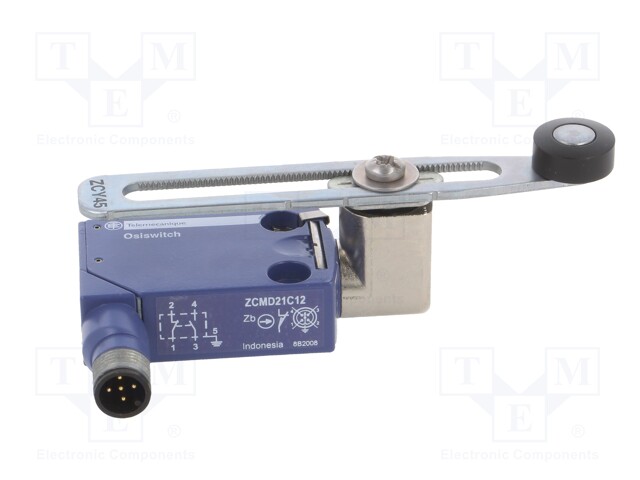

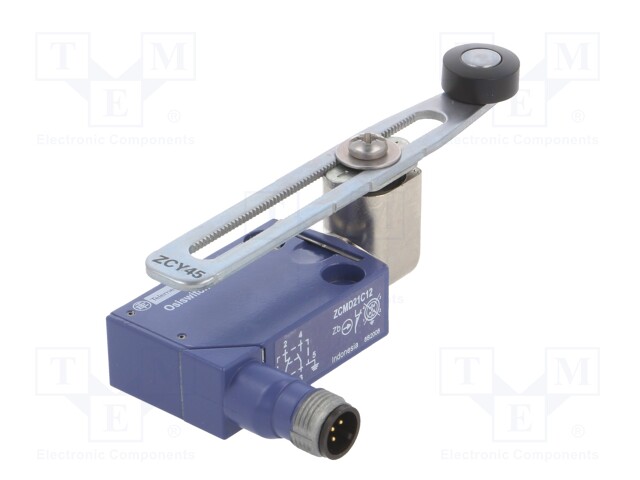

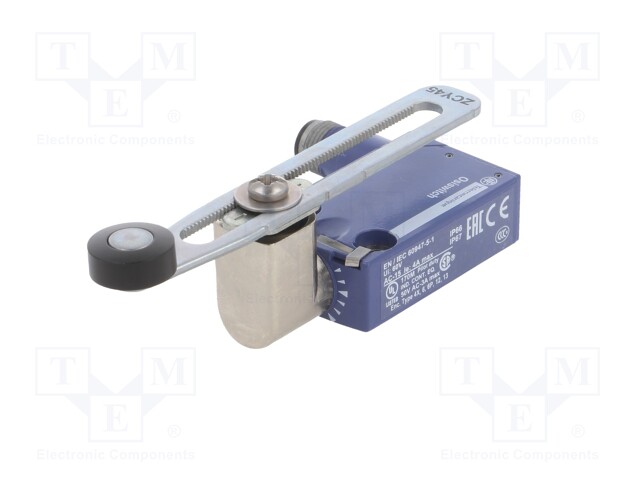

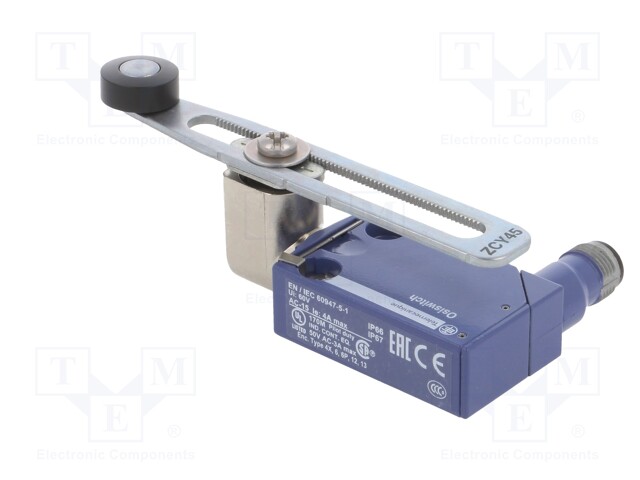

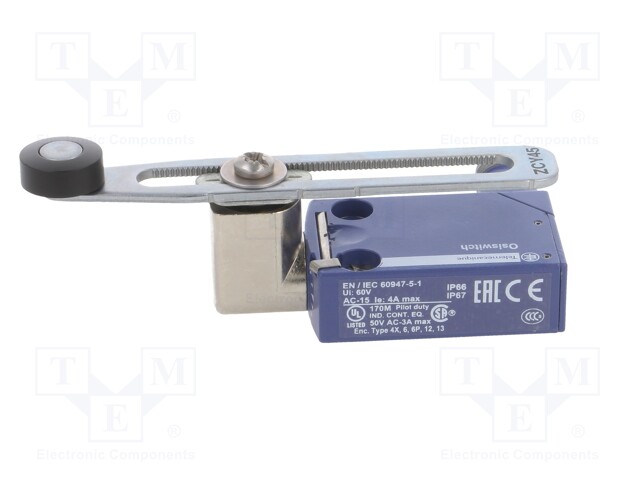

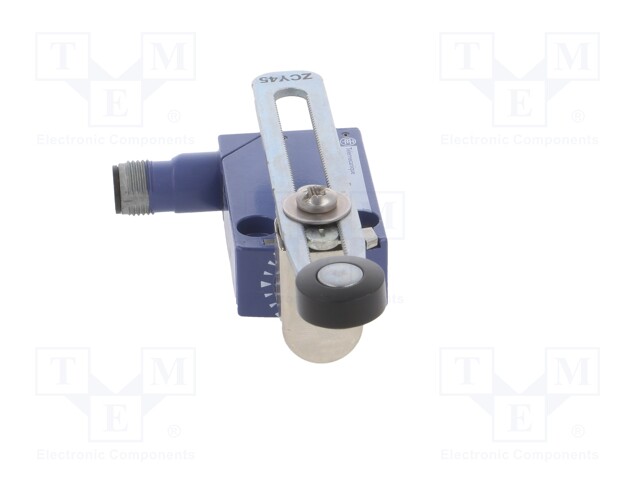

Limit switch; NO + NC; 6A; max.250VAC; max.250VDC; connector M12

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: XCMD2145C12
    Manufacturer: SCHNEIDER ELECTRIC
    Manufacturer code: XCMD2145C12
    • Operating temperature
    • IP rating
    • Switches features
    • Number of pins
    • Body material
    • Body dimensions
    • Mounting holes pitch
    • Switched voltage
    • Switched voltage
    • Output configuration
    • Type of sensor
    • Number of mounting holes
    • DC contacts rating @R
    • AC contacts rating @R
    • Connection
    • Contact current max.
    • Kind of actuator

    80.29 € 80.29 € (wo VAT) 80.29 EUR

    80.29 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Limit switch; NO + NC; 6A; max.250VAC; max.250VDC; connector M12

    Operating temperature -25...70°C
    IP rating IP66
    Switches features snap action contacts
    Number of pins 5
    Body material metal
    Body dimensions 30x50x16mm
    Mounting holes pitch 20mm
    Switched voltage max. 250V AC, max. 250V DC
    Output configuration NO + NC
    Type of sensor limit switch
    Number of mounting holes 2
    DC contacts rating @R 1.5A / 24V DC
    AC contacts rating @R 1.5A / 240V AC
    Connection connector M12
    Contact current max. 6A
    Kind of actuator adjustable lever R 33,5-83,5mm, plastic roller Ø16mm
