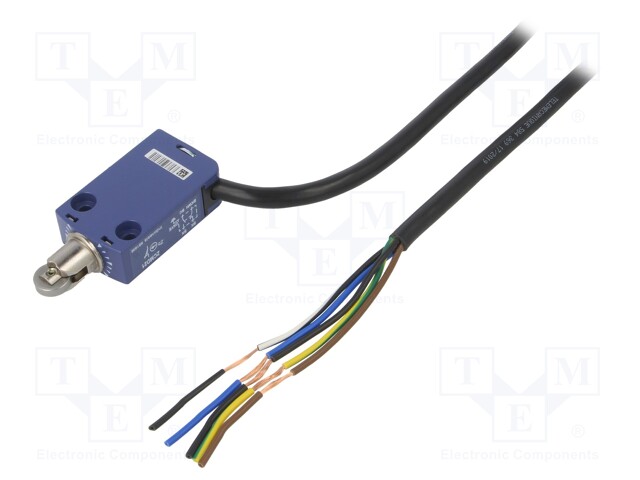

Limit switch; metal roller Ø11,6mm; NO + NC; 6A; max.250VAC; IP66

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: XCMD2102L5
    Manufacturer: SCHNEIDER ELECTRIC
    Manufacturer code: XCMD2102L5
    • Operating temperature
    • IP rating
    • Switches features
    • Body material
    • Body dimensions
    • Mounting holes pitch
    • Switched voltage
    • Switched voltage
    • Output configuration
    • Type of sensor
    • Number of mounting holes
    • DC contacts rating @R
    • AC contacts rating @R
    • Connection
    • Contact current max.
    • Kind of actuator

    104.94 € 104.94 € (wo VAT) 104.94 EUR

    104.94 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Limit switch; metal roller Ø11,6mm; NO + NC; 6A; max.250VAC; IP66

    Operating temperature -25...70°C
    IP rating IP66
    Switches features snap action contacts
    Body material metal
    Body dimensions 30x50x16mm
    Mounting holes pitch 20mm
    Switched voltage max. 250V AC, max. 250V DC
    Output configuration NO + NC
    Type of sensor limit switch
    Number of mounting holes 2
    DC contacts rating @R 1.5A / 24V DC
    AC contacts rating @R 1.5A / 240V AC
    Connection lead 5m
    Contact current max. 6A
    Kind of actuator metal roller Ø11,6mm
