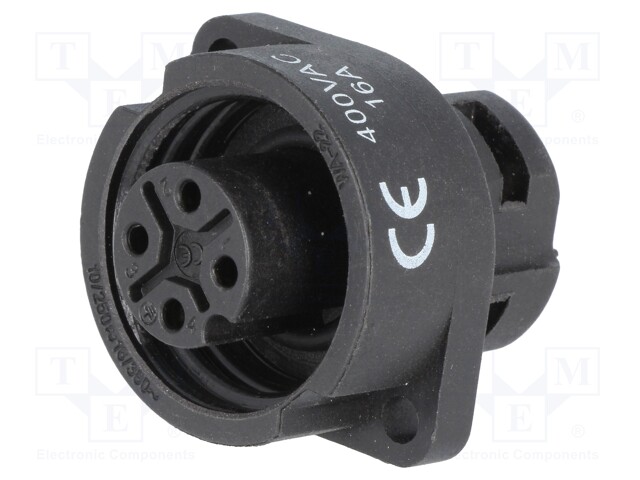

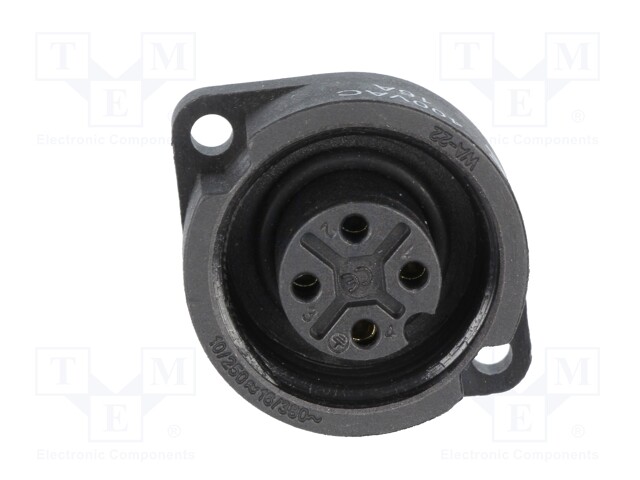

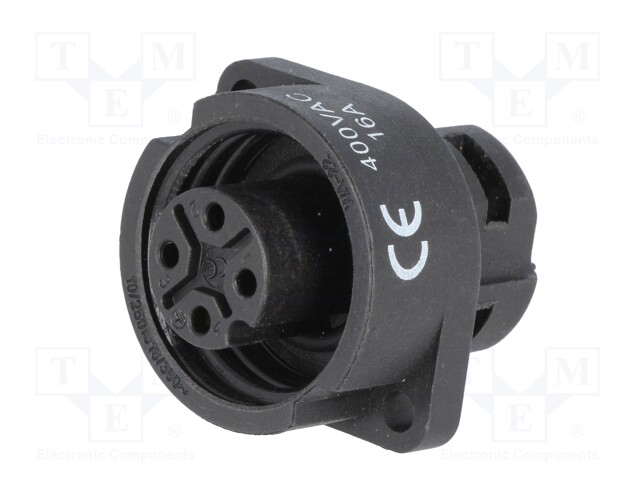

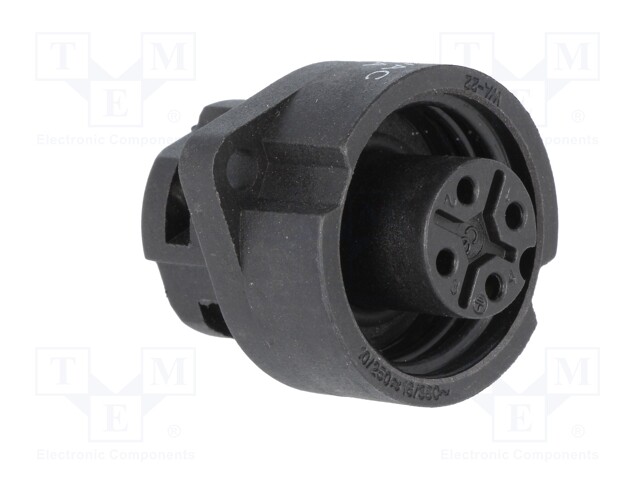

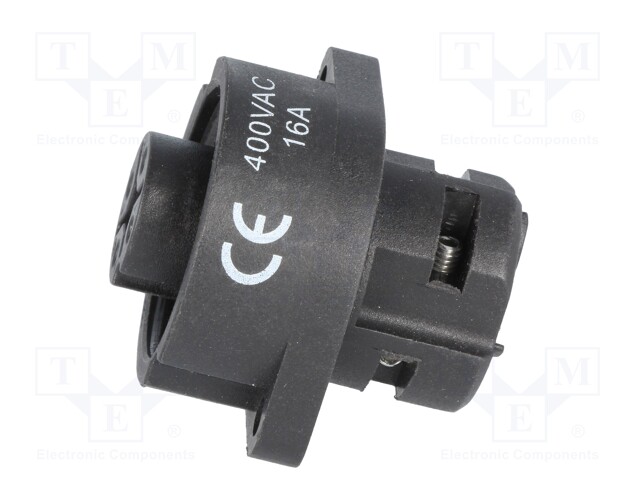

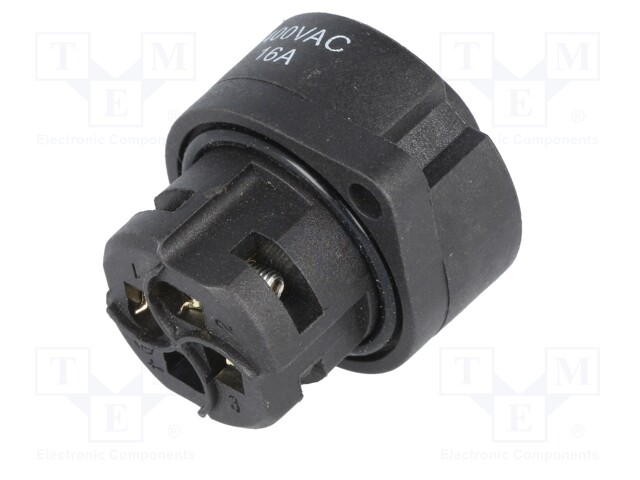

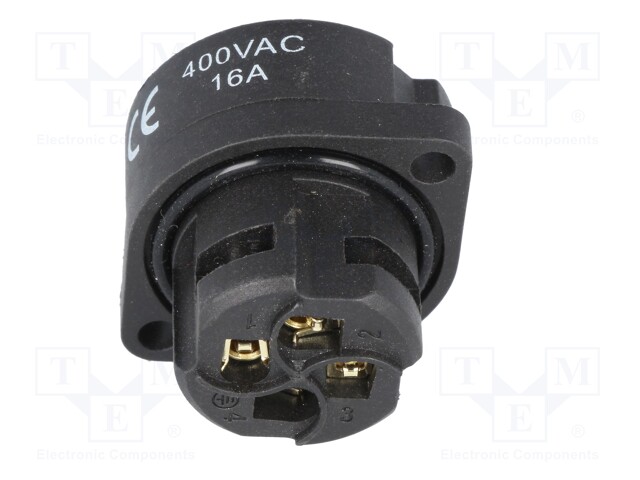

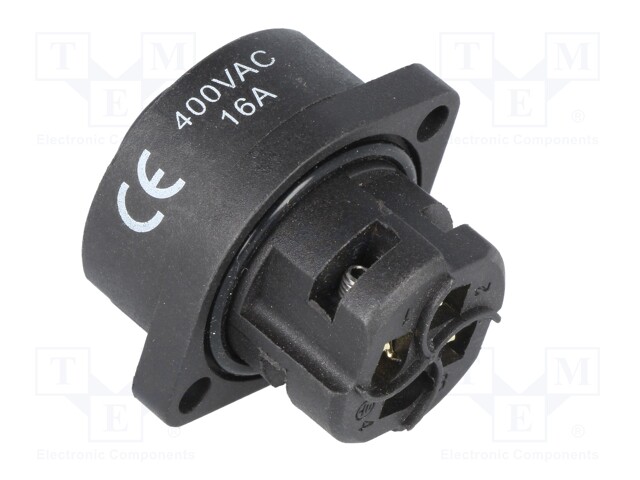

Socket; female; WA22; PIN: 4; 3+PE; IP67; 16A; screw terminal; 400V

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: WA22K4Z2
    Manufacturer: WEIPU
    Manufacturer code: WA22K4Z2
    • IP rating
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Mechanical mounting
    • Contact plating
    • Type of connector
    • Number of pins
    • Current rating
    • Type of pin configuration
    • Rated voltage
    • Locking system
    • Locking system

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Socket; female; WA22; PIN: 4; 3+PE; IP67; 16A; screw terminal; 400V

    IP rating IP67
    Electrical mounting screw terminal
    Connector socket
    Kind of connector female
    Mechanical mounting flange (2 holes), for panel mounting
    Contact plating gold-plated
    Type of connector circular
    Number of pins 4
    Current rating 16A
    Type of pin configuration 3+PE
    Rated voltage 400V
    Locking system internal thread, threaded joint
