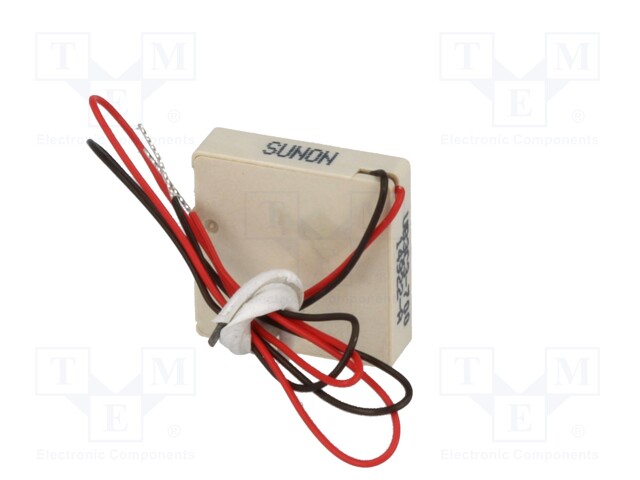

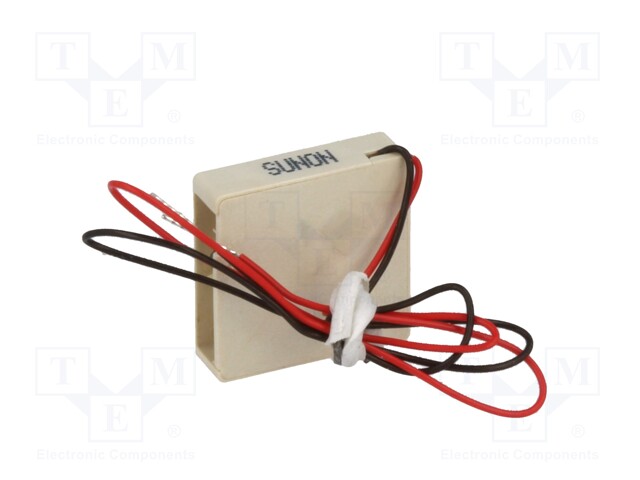

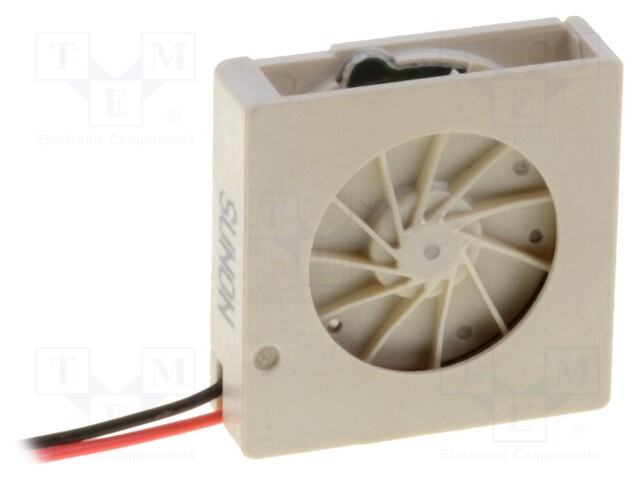

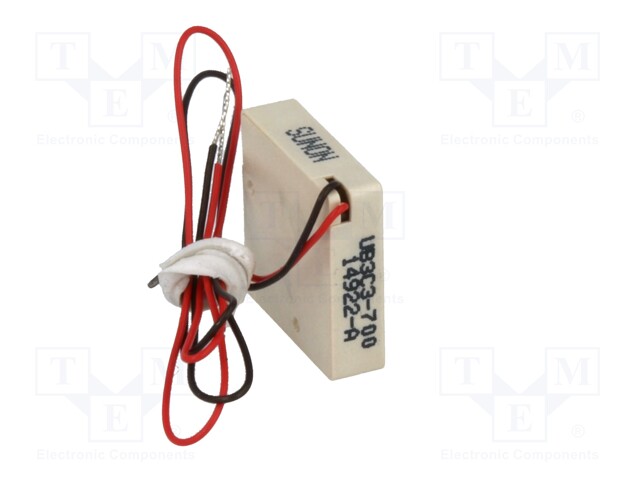

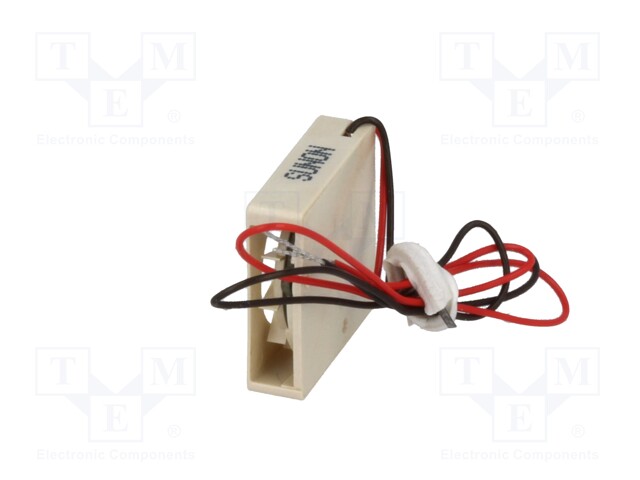

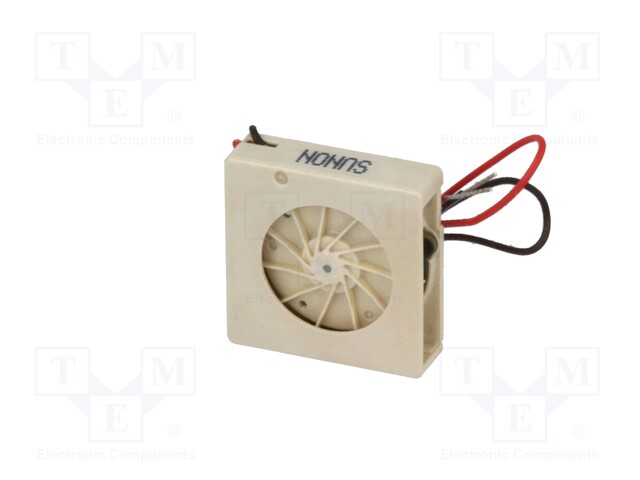

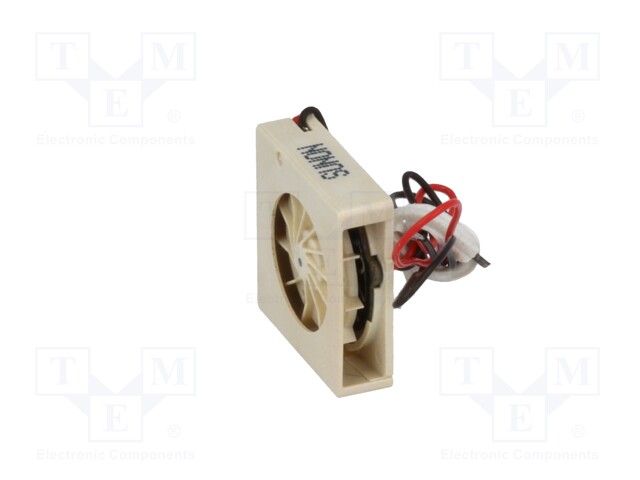

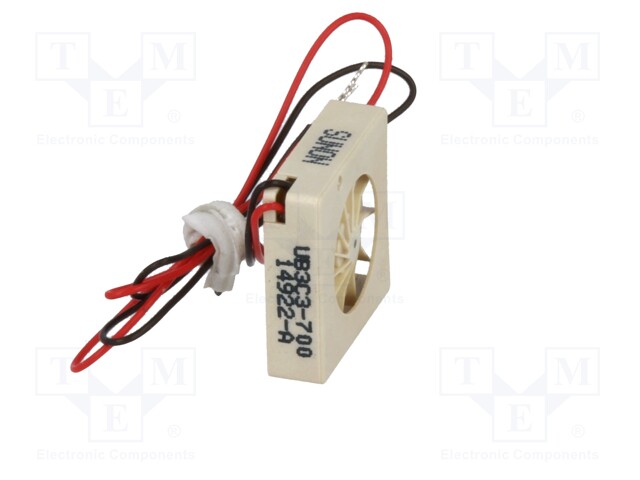

Fan: DC; blower; 3VDC; 12x12x3mm; 0.16m3/h; 15.5dBA; Vapo; 2.34mmH2O

Multiples: 1.0
Minimum quantity: 1.0
Product code: UB3C3-700
Manufacturer: SUNON
Manufacturer code: UB3C3-700
  • Supply voltage
  • Operating temperature
  • Enclosure material
  • Leads
  • Version
  • Current rating
  • Fan efficiency
  • Power consumption
  • Rotational rate/speed
  • Fan dimensions
  • Kind of Bearing
  • Min. insulation resistance
  • Impeller material
  • Kind of fan
  • Type of fan
  • Static pressure
  • Noise level

17.15 € 17.15 € (wo VAT) 17.150000000000002 EUR

17.15 €

This combination does not exist.

Add to Cart

Product downloads

Specification for Fan: DC; blower; 3VDC; 12x12x3mm; 0.16m3/h; 15.5dBA; Vapo; 2.34mmH2O

Supply voltage 3V DC
Operating temperature -10...70°C
Enclosure material thermoplastic
Leads FPCB lead
Version Might&Mini
Current rating 36mA
Fan efficiency 0.16m<sup>3</sup>/h
Power consumption 100mW
Rotational rate/speed 15500 (±30%)rpm
Fan dimensions 12x12x3mm
Kind of Bearing Vapo
Min. insulation resistance 20MΩ
Impeller material thermoplastic
Kind of fan blower
Type of fan DC
Static pressure 2.34mm H<sub>2</sub>O
Noise level 15.5dBA
