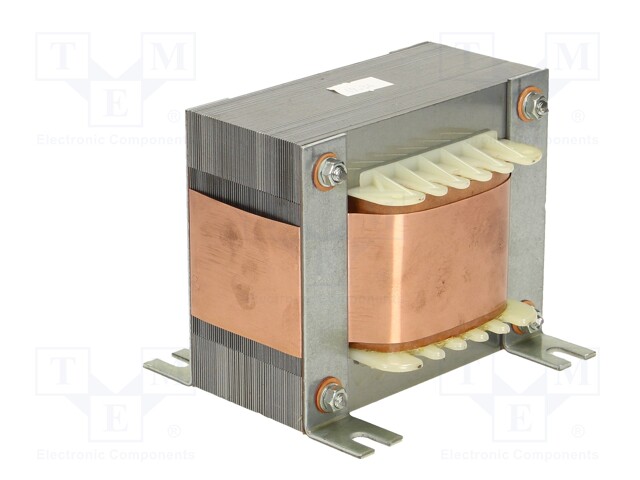

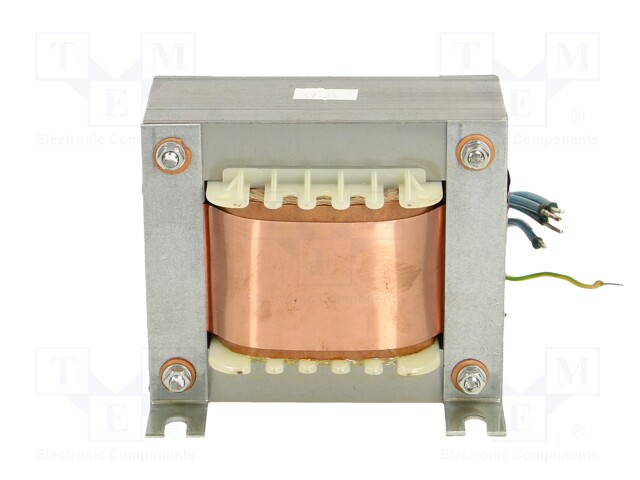

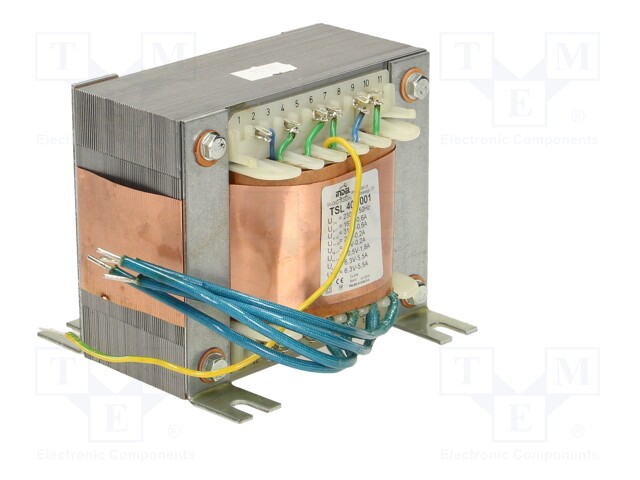

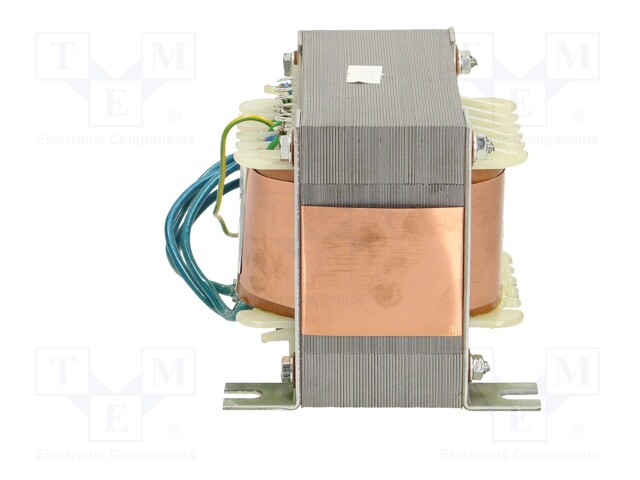

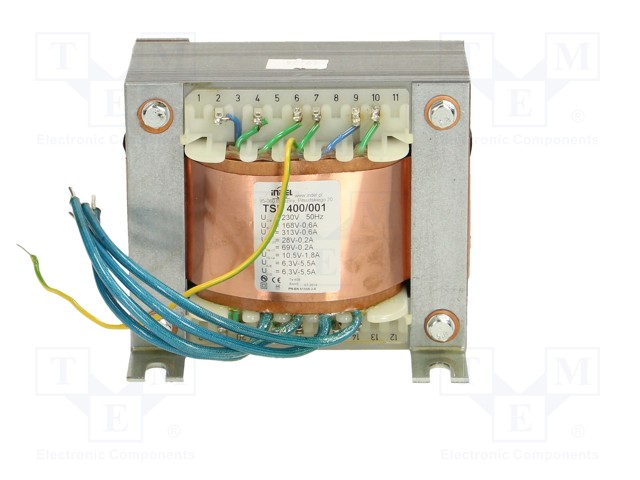

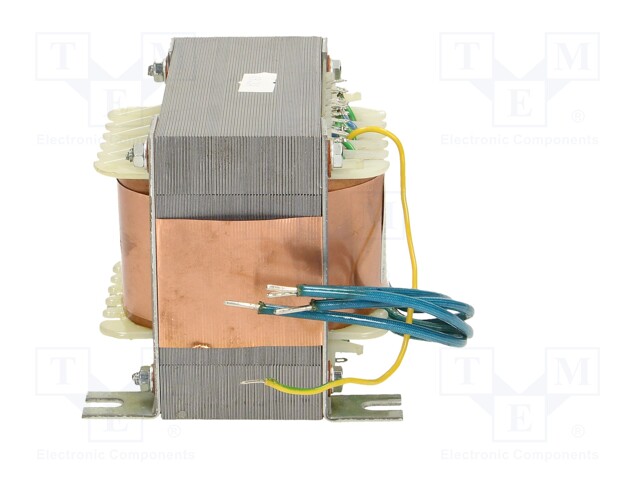

Transformer: mains; 230VAC; 168V; 313V; 28V; 10.5V; 6.4V; 6.4V; 69V

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: TSL 400/001
    Manufacturer: INDEL
    Manufacturer code: TSL 400/001
    • Type of transformer
    • Primary voltage
    • Secondary voltage 1
    • Secondary voltage 2
    • Secondary winding current 1
    • Secondary winding current 2
    • Secondary voltage 4
    • Secondary winding current 3
    • Secondary voltage 3
    • Secondary winding current 4
    • Secondary voltage 5
    • Secondary voltage 6
    • Secondary winding current 5
    • Secondary winding current 6
    • Secondary voltage 7
    • Secondary winding current 7

    191.50 € 191.50 € (wo VAT) 191.5 EUR

    191.50 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Transformer: mains; 230VAC; 168V; 313V; 28V; 10.5V; 6.4V; 6.4V; 69V

    Type of transformer mains
    Primary voltage 230V AC
    Secondary voltage 1 168V
    Secondary voltage 2 313V
    Secondary winding current 1 600mA
    Secondary winding current 2 600mA
    Secondary voltage 4 10.5V
    Secondary winding current 3 0.2A
    Secondary voltage 3 28V
    Secondary winding current 4 1.8A
    Secondary voltage 5 6.4V
    Secondary voltage 6 6.4V
    Secondary winding current 5 5.5A
    Secondary winding current 6 5.5A
    Secondary voltage 7 69V
    Secondary winding current 7 0.2A
