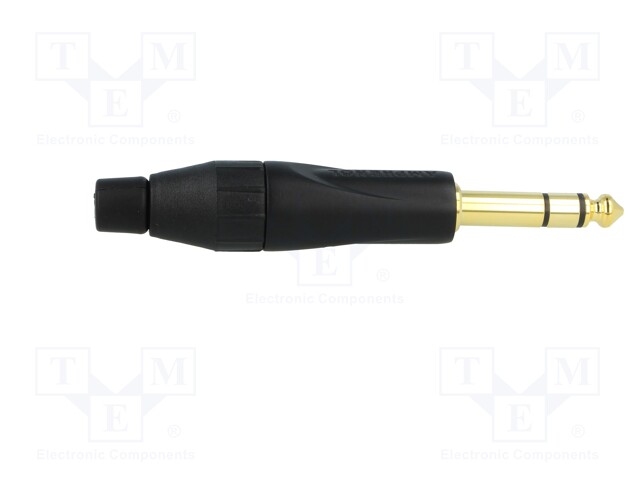

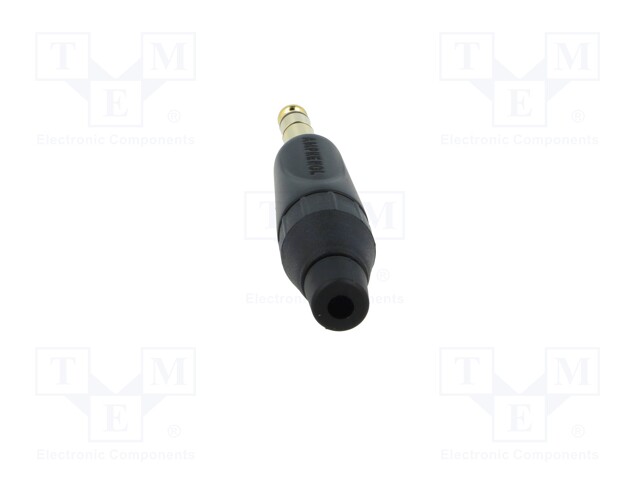

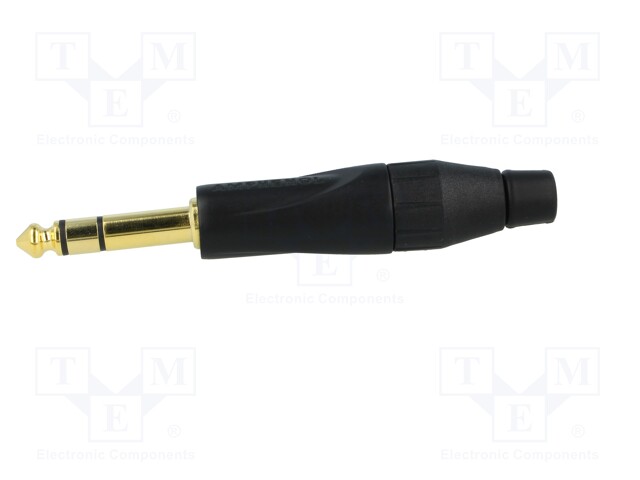

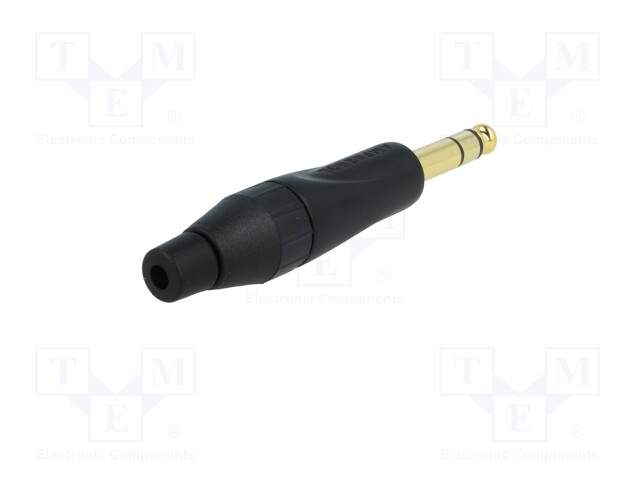

Plug; Jack 6,35mm; male; stereo; straight; for cable; soldering

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: TS3PB-AU
    Manufacturer: AMPHENOL
    Manufacturer code: TS3PB-AU
    • Operating temperature
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Contact plating
    • Enclosure material
    • Type of connector
    • Contact material
    • Flammability rating
    • Body colour
    • Number of ways
    • Cable external diameter
    • Connector variant
    • Spatial orientation

    8.85 € 8.85 € (wo VAT) 8.85 EUR

    8.85 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Plug; Jack 6,35mm; male; stereo; straight; for cable; soldering

    Operating temperature -25...75°C
    Electrical mounting soldering
    Connector plug
    Kind of connector male
    Mechanical mounting for cable
    Contact plating gold-plated
    Enclosure material thermoplastic
    Type of connector Jack 6,3mm
    Contact material bronze
    Flammability rating UL94V-0
    Body colour black
    Number of ways 3
    Cable external diameter 3...6mm
    Connector variant stereo
    Spatial orientation straight
