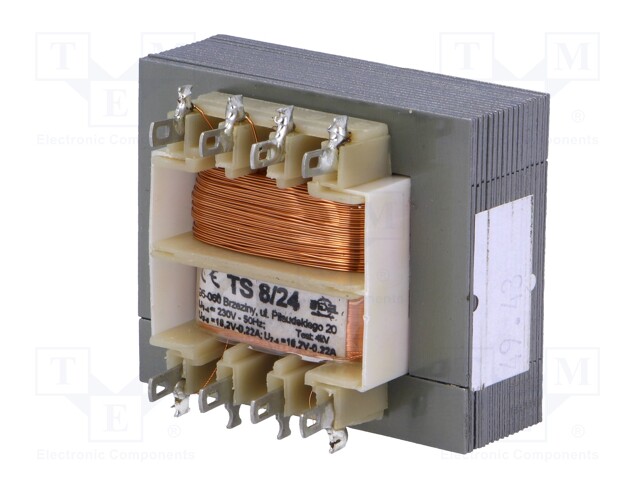

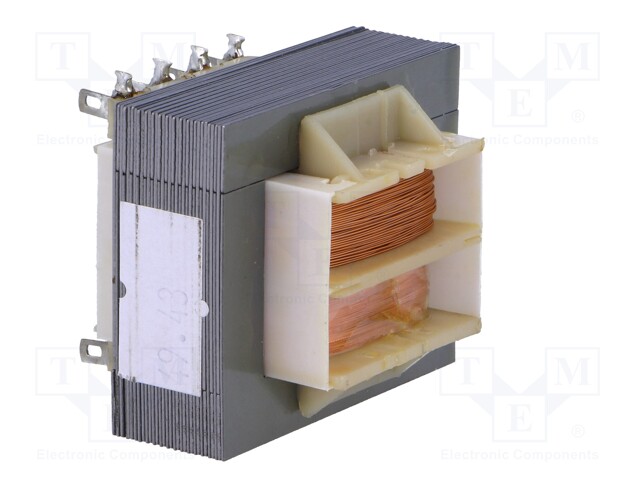

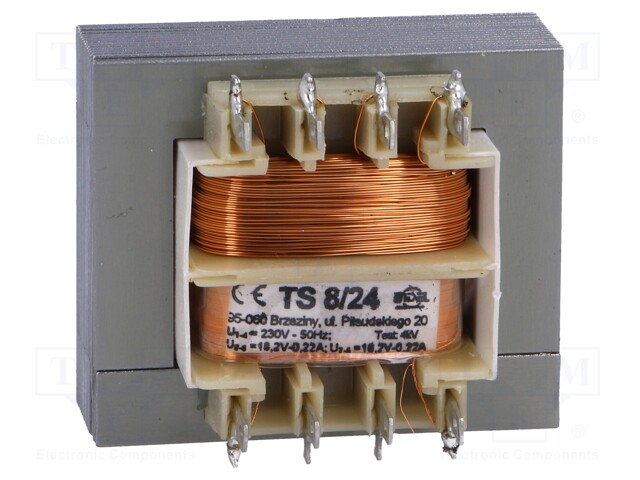

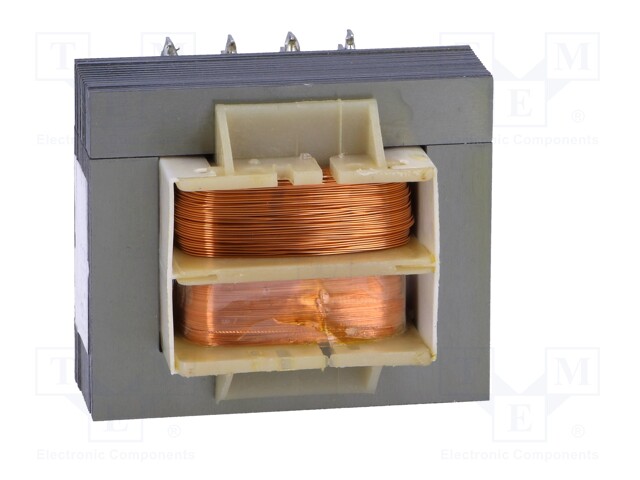

Transformer: mains; 8VA; 230VAC; 18.2V; 18.2V; 0.22A; 0.22A; IP00

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: TS 8/24
    Manufacturer: INDEL
    Manufacturer code: TS 8/24
    • Mounting
    • IP rating
    • Leads
    • Insulation class
    • Conform to the norm
    • Type of transformer
    • Primary voltage
    • Secondary voltage 1
    • Thermal class
    • Secondary voltage 2
    • Secondary winding current 1
    • Primary winding terminals
    • Secondary winding terminals
    • Power VA

    12.96 € 12.96 € (wo VAT) 12.96 EUR

    12.96 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Transformer: mains; 8VA; 230VAC; 18.2V; 18.2V; 0.22A; 0.22A; IP00

    Mounting screw type
    IP rating IP00
    Leads solder lugs
    Insulation class I
    Conform to the norm PN-EN 61558
    Type of transformer mains
    Primary voltage 230V AC
    Secondary voltage 1 18.2V
    Thermal class Ta40B
    Secondary voltage 2 18.2V
    Secondary winding current 1 0.22A
    Primary winding terminals 1-4
    Secondary winding terminals 8-6, 7-5
    Power VA 8VA
