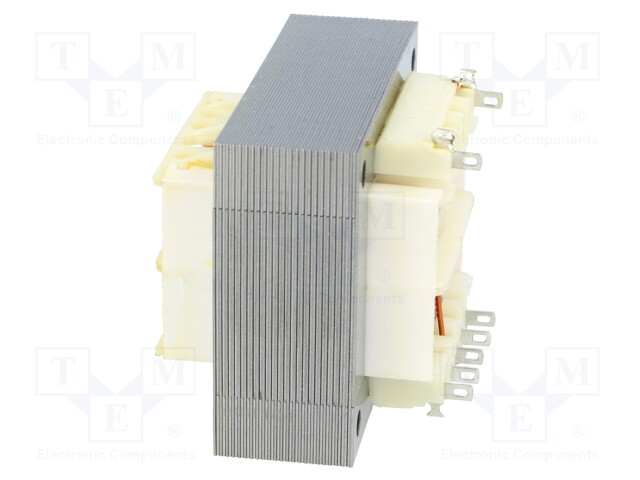

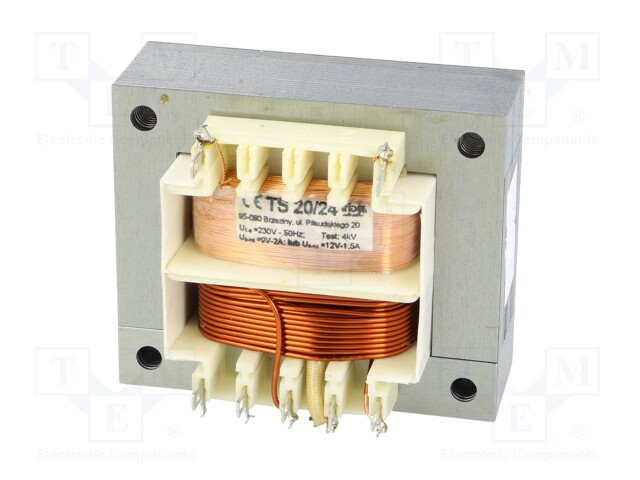

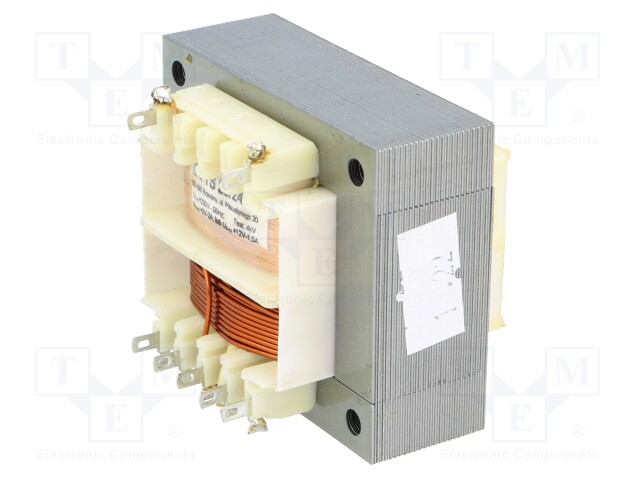

Transformer: mains; 20VA; 230VAC; 9V; 3V; 2A; 1.5A; IP00; Ins.class: I

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: TS 20/24
    Manufacturer: INDEL
    Manufacturer code: TS 20/24
    • Mounting
    • IP rating
    • Leads
    • Insulation class
    • Conform to the norm
    • Type of transformer
    • Primary voltage
    • Secondary voltage 1
    • Thermal class
    • Secondary voltage 2
    • Secondary winding current 1
    • Primary winding terminals
    • Secondary winding current 2
    • Secondary winding terminals
    • Power VA

    20.79 € 20.79 € (wo VAT) 20.79 EUR

    20.79 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Transformer: mains; 20VA; 230VAC; 9V; 3V; 2A; 1.5A; IP00; Ins.class: I

    Mounting screw type
    IP rating IP00
    Leads solder lugs
    Insulation class I
    Conform to the norm PN-EN 61558
    Type of transformer mains
    Primary voltage 230V AC
    Secondary voltage 1 9V
    Thermal class Ta40B
    Secondary voltage 2 3V
    Secondary winding current 1 2A
    Primary winding terminals 1-5
    Secondary winding current 2 1.5A
    Secondary winding terminals 10-9, 9-8
    Power VA 20VA
