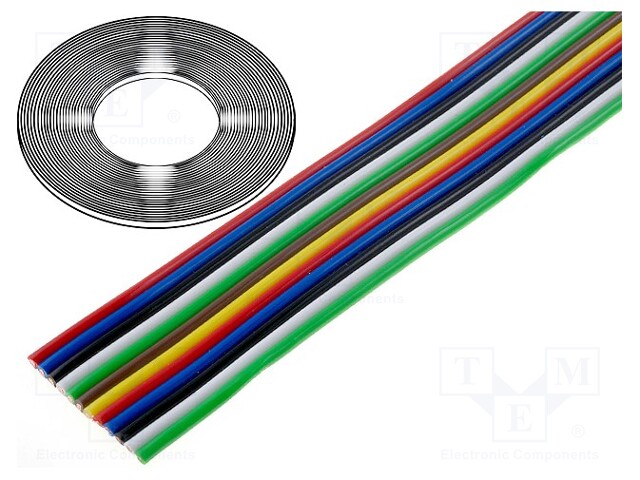

Wire: ribbon; stranded; Cu; 12x0,75mm2; unshielded; PVC; 500V; 25m

Multiples: 1.0
Minimum quantity: 1.0
Product code: TLWY12/0.75
Manufacturer: BQ CABLE
Manufacturer code: TLWY12/0.75
  • Operating temperature
  • Core structure
  • Kind of core
  • Number of cores
  • Wire insulation material
  • Rated voltage
  • Max. wire diameter
  • Insulation colour
  • Insulation colour
  • Insulation colour
  • Insulation colour
  • Insulation colour
  • Insulation colour
  • Insulation colour
  • Type of wire
  • Shield structure
  • Core marking
  • Earth core

15.11 € 15.11 € (wo VAT) 15.11 EUR

15.11 €

This combination does not exist.

Add to Cart

Product downloads

Specification for Wire: ribbon; stranded; Cu; 12x0,75mm2; unshielded; PVC; 500V; 25m

Operating temperature -40...105°C
Core structure stranded
Kind of core Cu
Number of cores 12
Wire insulation material PVC
Rated voltage 500V
Max. wire diameter 2mm
Insulation colour black, blue, brown, green, red, white, yellow
Type of wire ribbon
Shield structure unshielded
Core marking colours with colour repetition
Earth core without earth core
