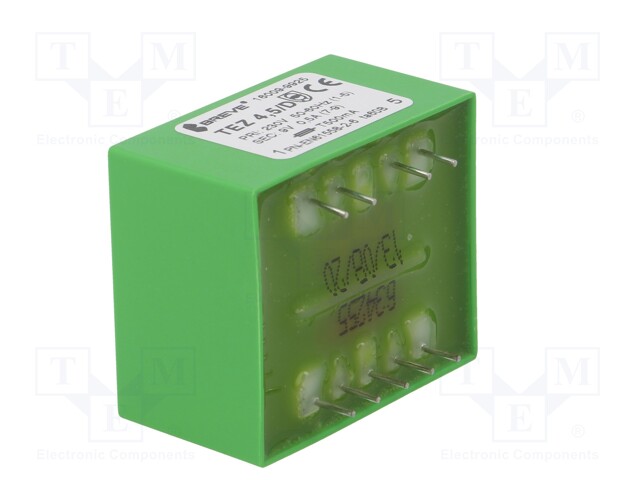

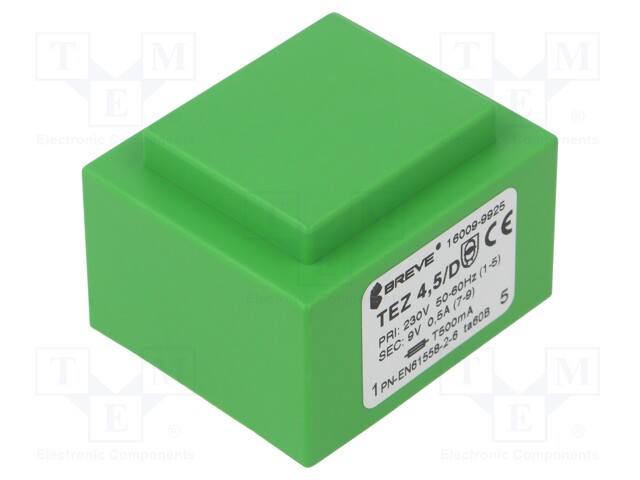

Transformer: encapsulated; 4.5VA; 230VAC; 9V; 500mA; Mounting: PCB

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: TEZ4.5/D230/9V
    Manufacturer: BREVE TUFVASSONS
    Manufacturer code: TEZ4.5/D230/9V
    • Mounting
    • IP rating
    • B dimension
    • A dimension
    • Conform to the norm
    • Conform to the norm
    • Conform to the norm
    • C dimension
    • Type of transformer
    • A1 dimension
    • Primary voltage
    • Secondary voltage 1
    • Thermal class
    • Secondary winding current 1
    • Primary winding terminals
    • Secondary winding terminals
    • A2 dimension
    • Power VA

    5.85 € 5.85 € (wo VAT) 5.8500000000000005 EUR

    5.85 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Transformer: encapsulated; 4.5VA; 230VAC; 9V; 500mA; Mounting: PCB

    Mounting PCB
    IP rating IP00
    B dimension 42mm
    A dimension 35mm
    Conform to the norm PN-EN 61558-1:2000, PN-EN 61558-2-1:2000, PN-EN 61558-2-6:2000
    C dimension 29mm
    Type of transformer encapsulated
    A1 dimension 25mm
    Primary voltage 230V AC
    Secondary voltage 1 9V
    Thermal class Ta60B
    Secondary winding current 1 500mA
    Primary winding terminals 1-5
    Secondary winding terminals 7-9
    A2 dimension 20mm
    Power VA 4.5VA
