Converter: DC/DC; 60W; Uin: 36÷160V; 12VDC; Iout: 5000mA; 2"x1"

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: TEN 60-7212WIR
    Manufacturer: TRACO POWER
    Manufacturer code: TEN 60-7212WIR
    • Output current
    • Case
    • Power
    • Operating temperature
    • Protection
    • Series
    • Body dimensions
    • Output voltage
    • Insulation voltage
    • Efficiency
    • Number of outputs
    • Conform to the norm
    • Switching frequency

    131.53 € 131.53 € (wo VAT) 131.53 EUR

    131.53 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Converter: DC/DC; 60W; Uin: 36÷160V; 12VDC; Iout: 5000mA; 2"x1"

    Output current 5A
    Case 2"x1"
    Power 60W
    Operating temperature -40...90°C
    Protection voltage drop
    Series TEN 60WIR

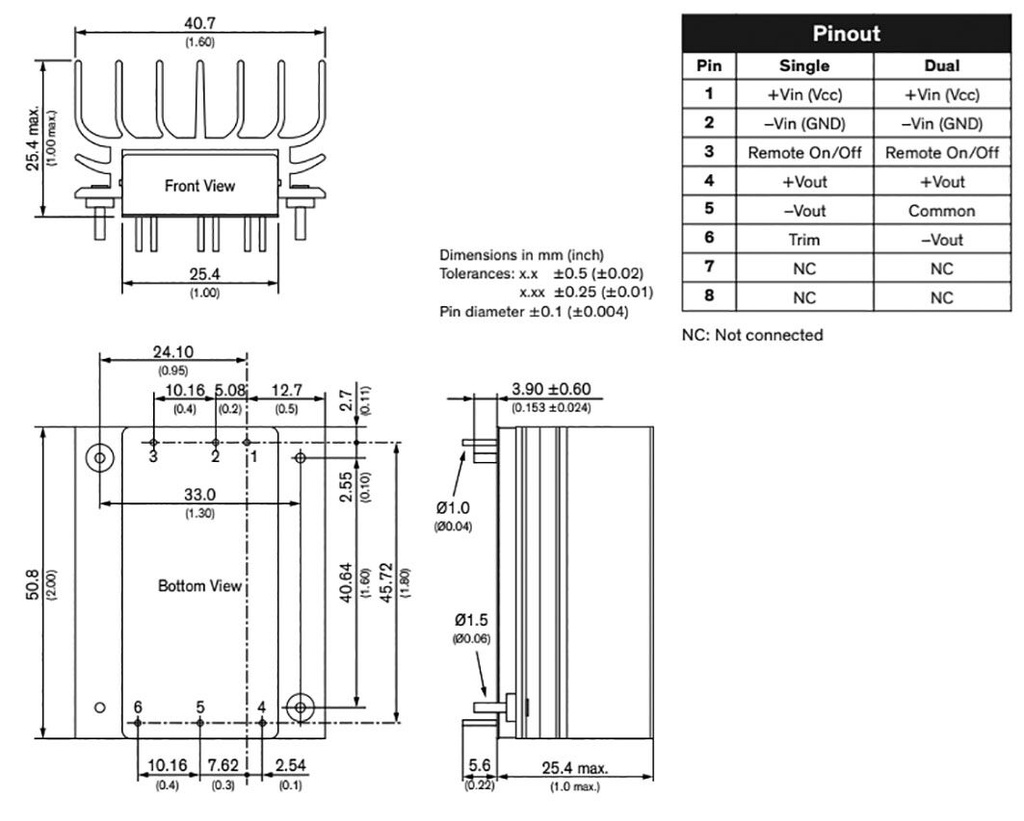

    Body dimensions 50.8x40.7x25.4mm
    Output voltage 12V DC
    Insulation voltage 3kV
    Efficiency 92%
    Number of outputs 1
    Conform to the norm EN 50155
    Switching frequency 250kHz
