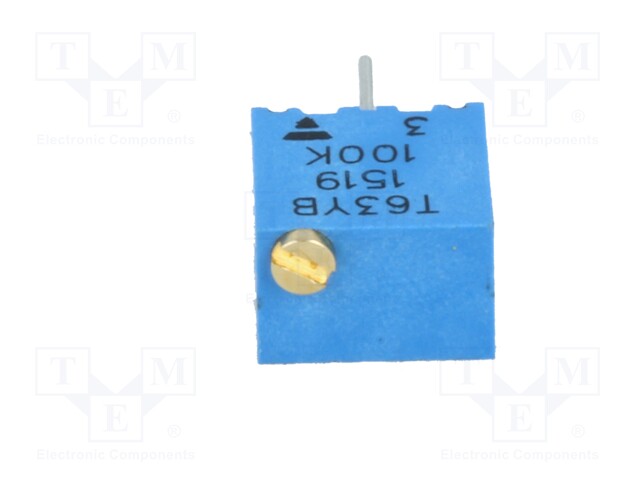

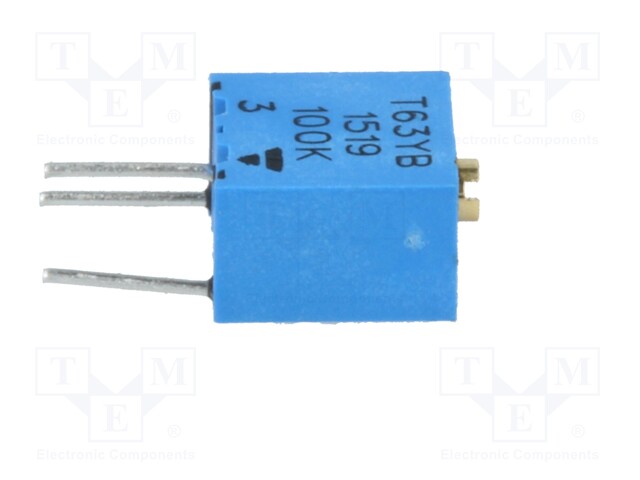

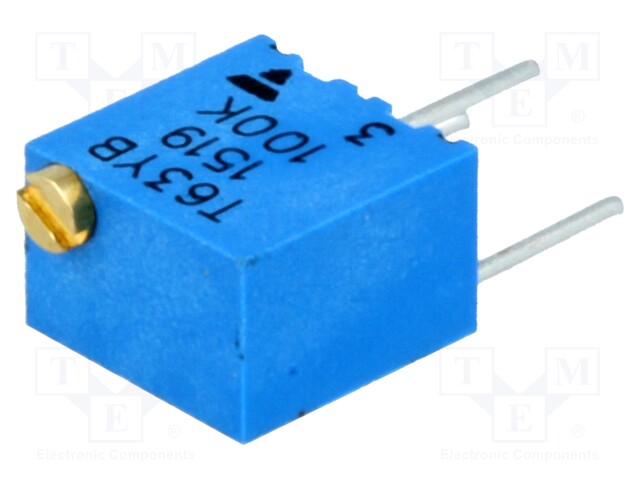

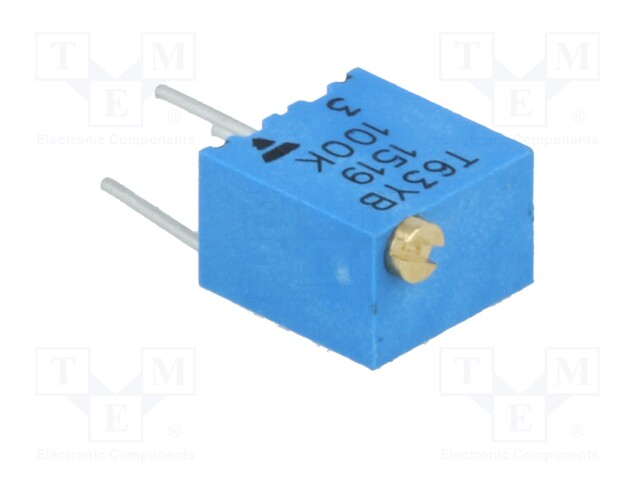

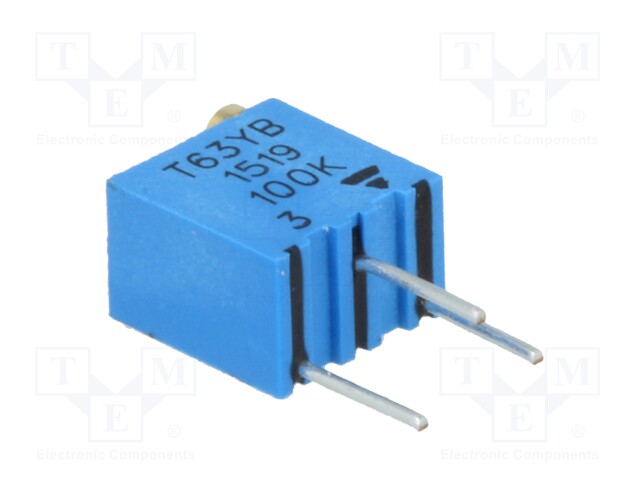

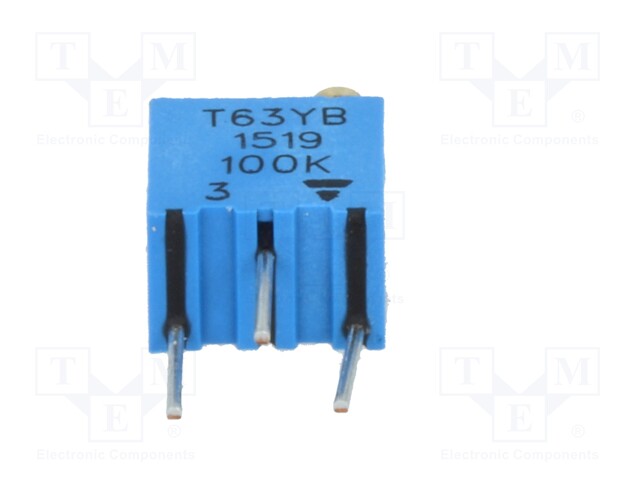

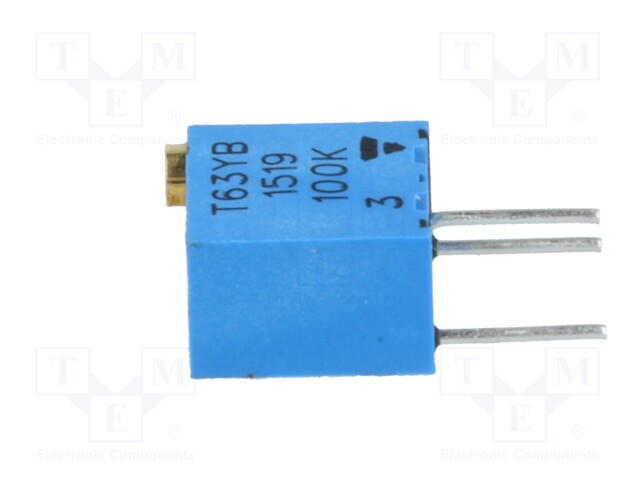

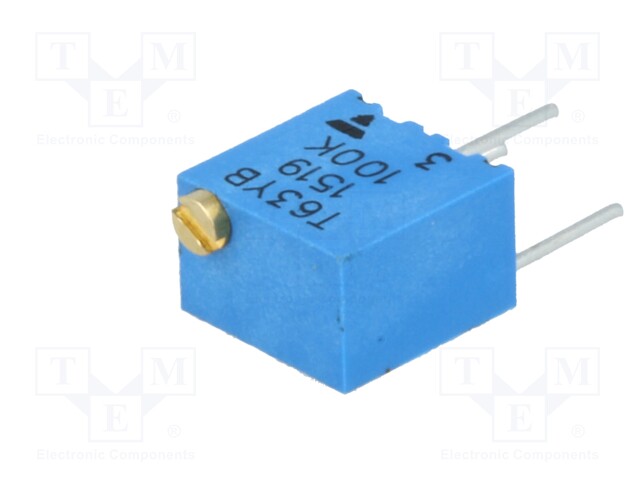

Potentiometer: mounting; multiturn; 100kΩ; 250mW; ±10%; linear

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: T63YB104KT20
    Manufacturer: VISHAY
    Manufacturer code: T63YB104KT20
    • Mounting
    • Power
    • Resistance
    • Operating temperature
    • IP rating
    • Tolerance
    • Terminal pitch
    • Body dimensions
    • Max. operating voltage
    • Kind of potentiometer
    • Number of electrical turns
    • Type of potentiometer
    • Track material
    • Characteristics
    • Temperature coefficient
    • Potentiometer standard
    • Torque
    • Potentiometer series
    • Number of mechanical turns

    4.43 € 4.43 € (wo VAT) 4.43 EUR

    4.43 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Potentiometer: mounting; multiturn; 100kΩ; 250mW; ±10%; linear

    Mounting THT
    Power 250mW
    Resistance 100kΩ
    Operating temperature -55...155°C
    IP rating IP67
    Tolerance ±10%
    Terminal pitch 2.5x2.5mm
    Body dimensions 6.8x6.8x5mm
    Max. operating voltage 250V
    Kind of potentiometer multiturn
    Number of electrical turns 13 ±2
    Type of potentiometer mounting
    Track material cermet
    Characteristics linear
    Temperature coefficient 100ppm/°C
    Potentiometer standard 1/4"
    Torque 1Ncm
    Potentiometer series T63YB
    Number of mechanical turns 15 ±5
