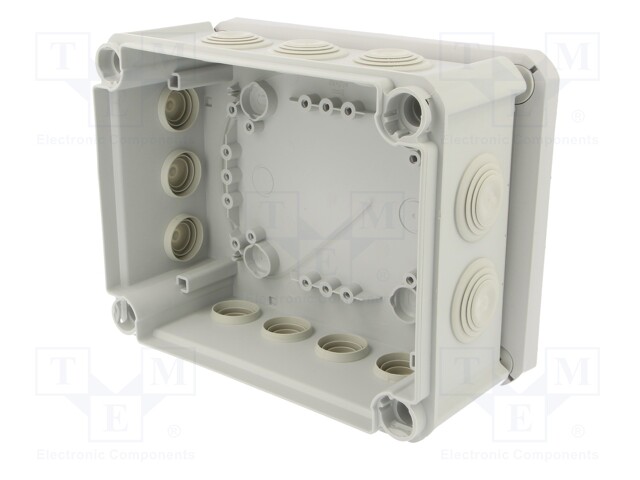

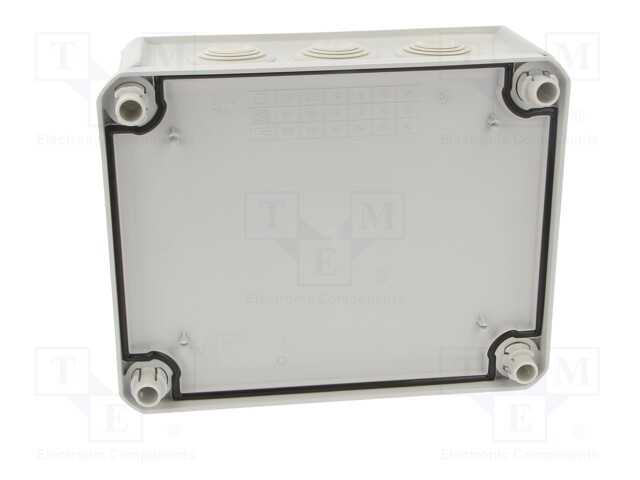

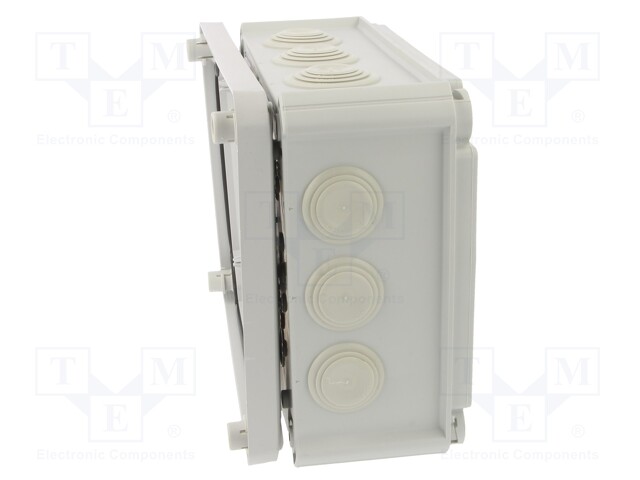

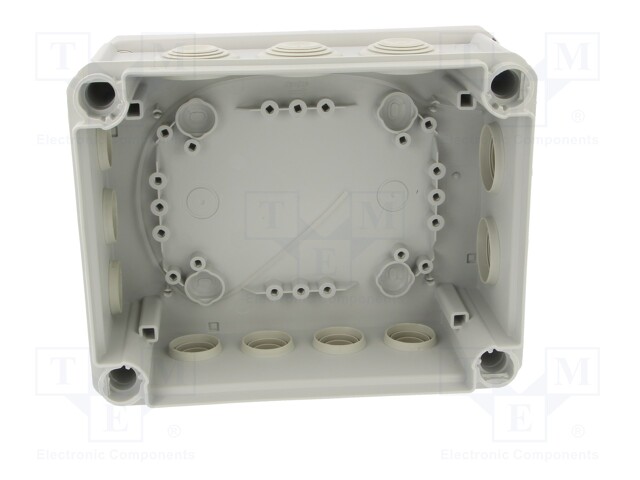

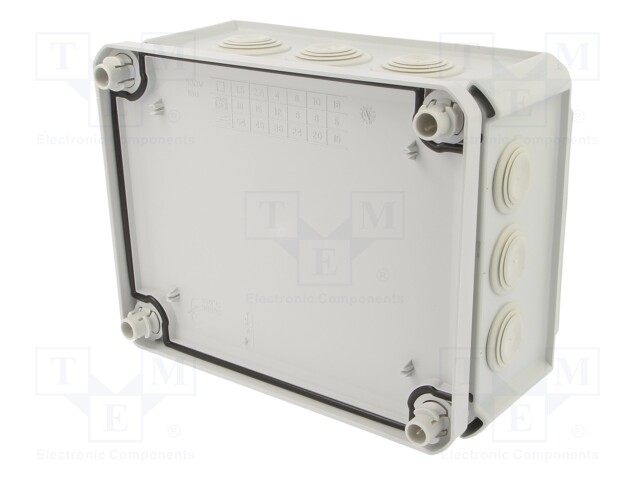

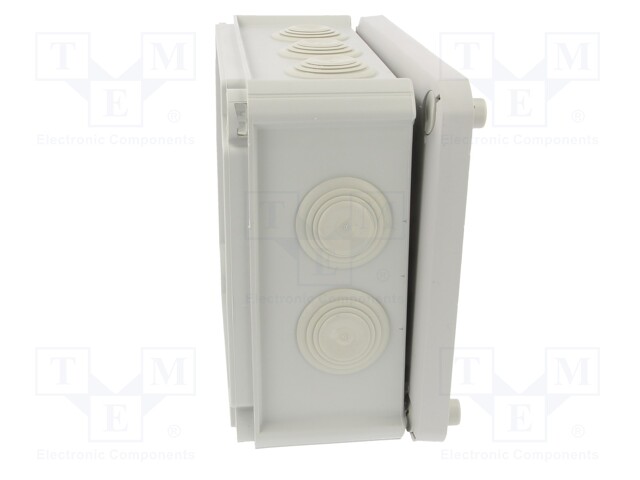

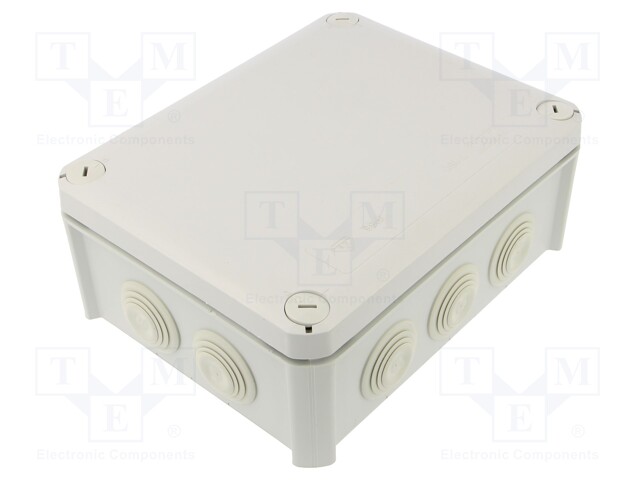

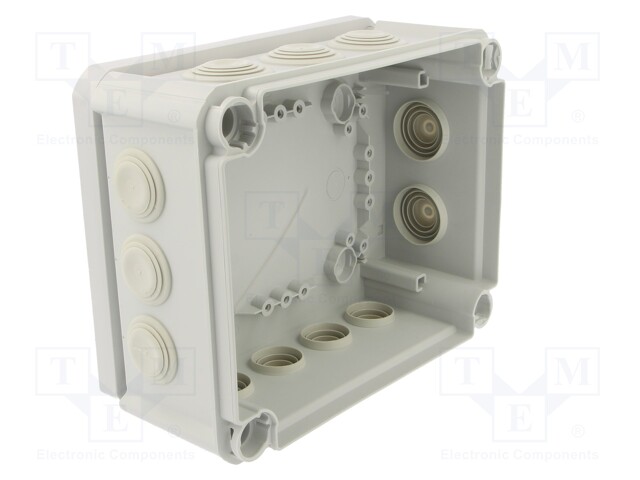

Enclosure: junction box; X: 150mm; Y: 190mm; Z: 77mm; IP66

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: T 160 F
    Manufacturer: OBO BETTERMANN
    Manufacturer code: T 160 F
    • IP rating
    • Enclosure material
    • Enclosure material
    • Type of enclosure
    • Resistance to
    • Version
    • Dimension Y
    • Body colour
    • Dimension X
    • Dimension Z
    • Cover colour
    • Conform to the norm
    • Mechanical impact resistance
    • Enclosure description

    16.27 € 16.27 € (wo VAT) 16.27 EUR

    16.27 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Enclosure: junction box; X: 150mm; Y: 190mm; Z: 77mm; IP66

    IP rating IP66
    Enclosure material fiberglass, polypropylene
    Type of enclosure junction box
    Resistance to UV rays
    Version with membrane cable glands
    Dimension Y 190mm
    Body colour light grey
    Dimension X 150mm
    Dimension Z 77mm
    Cover colour light grey
    Conform to the norm DIN EN 60695-2-11
    Mechanical impact resistance IK06
    Enclosure description 12 x gland
