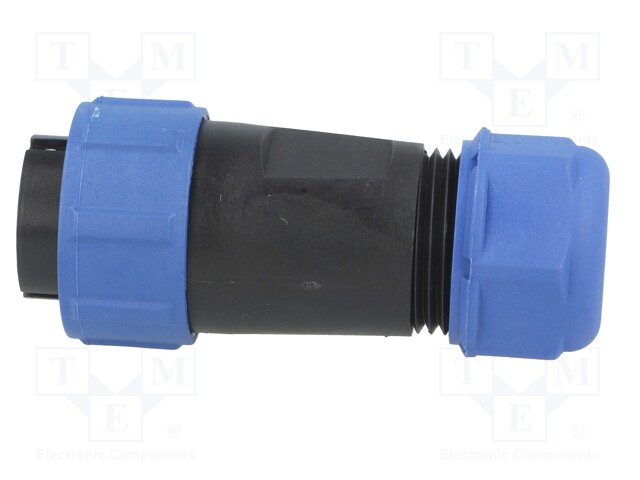

Plug; female; SP21; PIN: 5(2+3); IP68; 7÷12mm; soldering; for cable
Multiples:
1.0
Minimum quantity:
1.0
Product code:
SP2110/S5BII-1N
Manufacturer: WEIPU
Manufacturer code: SP2110/S5BII-1N
Product downloads
Specification for Plug; female; SP21; PIN: 5(2+3); IP68; 7÷12mm; soldering; for cable
| Operating temperature | -40...85°C |
| IP rating | IP68 |
| Electrical mounting | soldering |
| Connector | plug |
| Kind of connector | female |
| Mechanical mounting | for cable |
| Type of connector | circular |
| Current rating | 5A, 30A |
| Rated voltage | 500V |
| Cable external diameter | 7...12mm |
| Locking system | internal thread, threaded joint |
| Wire cross-section 2 | 0.75mm<sup>2</sup> |
| Wire cross-section 1 | 4mm<sup>2</sup> |
