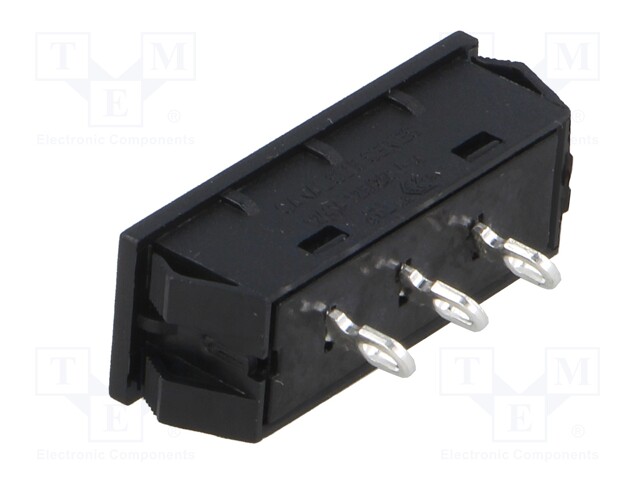

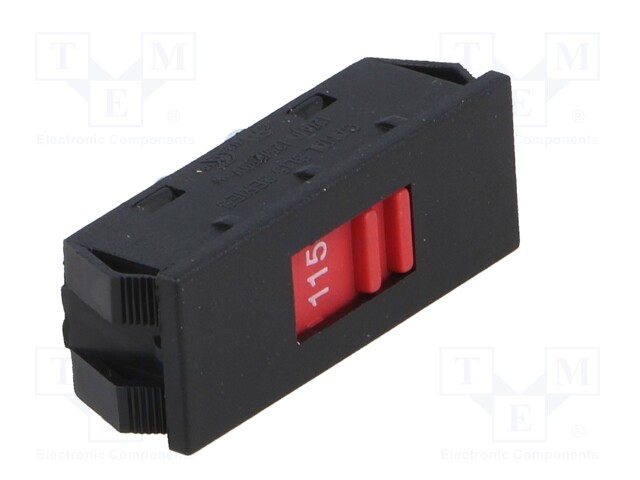

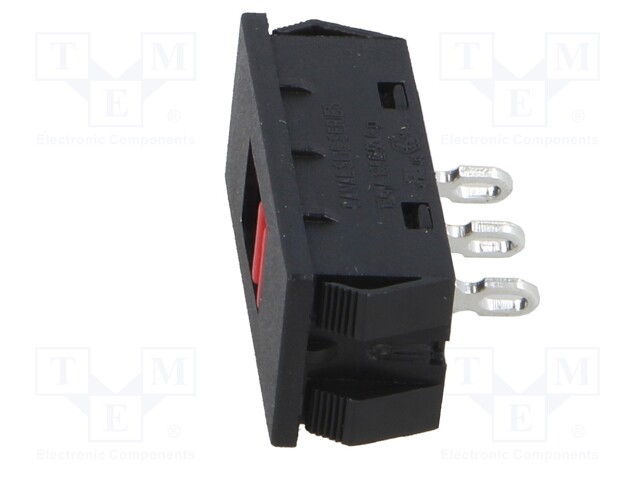

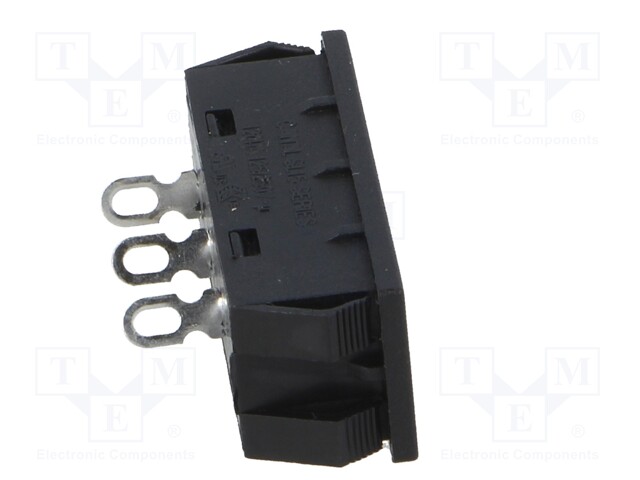

Switch: slide; Pos: 2; SPDT; 12A/250VAC; ON-ON; Leads: for soldering

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: SL15-121AJBJ-P3A-1JCN
    Manufacturer: CANAL ELECTRONIC
    Manufacturer code: SL15-121AJBJ-P3A-1JCN
    • Mounting
    • Mounting
    • Type of switch
    • Number of positions
    • Leads
    • Max. contact resistance:
    • Terminal pitch
    • Mounting hole diameter
    • Body colour
    • Body dimensions
    • Panel thickness
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Actuator colour
    • Button marking

    1.12 € 1.12 € (wo VAT) 1.12 EUR

    1.12 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: slide; Pos: 2; SPDT; 12A/250VAC; ON-ON; Leads: for soldering

    Mounting on panel, snap-fastener
    Type of switch slide
    Number of positions 2
    Leads for soldering
    Max. contact resistance: 20mΩ
    Terminal pitch 6.8mm
    Mounting hole diameter 29.8x10.8mm
    Body colour black
    Body dimensions 31x11.4x9.8mm
    Panel thickness max. 2mm
    Contacts configuration SPDT
    AC contacts rating @R 12A / 250V AC
    Switching method ON-ON
    Stable positions number 2
    Actuator colour red
    Button marking 115/230
