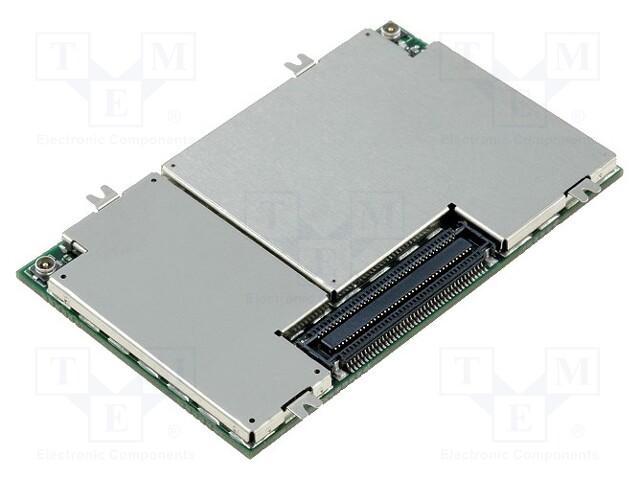

Module: GPS/GSM; 2G; GPRS; 1800MHz,900MHz; 34x55x3mm

• Supply voltage 3.4...4.5V DC
• Operating temperature -20...55°C
• Kind of connector SIM 3V/1,8V
• Dimensions 34x55x3mm
• Frequency 1.8GHz
• Type of communications module GPS/GSM
• Communications modules features AT commands controlled (GSM07.07, 07.05 and extended AT SIMCOM commands)
• Communications modules features compatible with GSM phase 2/2+
• Communications modules features GPRS mobile station class B
• Communications modules features GPRS multi-slot class 10/8
• Standard 2G
• Transmission GPRS
• GPS features 0.1 m/s acceleration
• GPS features 3.3V supply voltage
• GPS features 10m CEP positioning accuracy
• GPS features 20 channels, L1 1575,42MHz, C/A code, 1,023MHz chip rate
• GPS features cold start <42s
• GPS features hot start <1s
• GPS features low power consumption
• GPS features protocols: NMEA-0183, binary SiRF, RTCM SC-104
• GPS features synchronisation time with GSP up to 1µs
• GPS features warm start <38s
• GPS features WGS-84 data format
• Module output power 1 W (class 1 @ 1800/1900MHz)
• Module output power 2 W (class 4 @ 850/900MHz)
