Fan: AC; axial; 115VAC; 80x80x25mm; 37(±5%)m3/h; 34.5dBA; 2900rpm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: SF11580AT1082HBL.GN
    Manufacturer: SUNON
    Manufacturer code: SF11580AT1082HBL.GN
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Flammability rating
    • Current rating
    • Frequency
    • Power consumption
    • Rotational rate/speed
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Static pressure
    • Noise level

    14.96 € 14.96 € (wo VAT) 14.96 EUR

    14.96 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fan: AC; axial; 115VAC; 80x80x25mm; 37(±5%)m3/h; 34.5dBA; 2900rpm

    Supply voltage 115V AC
    Operating temperature -10...70°C
    Enclosure material aluminium
    Flammability rating UL94V-0
    Current rating 100mA
    Frequency 60Hz
    Power consumption 11W
    Rotational rate/speed 2900rpm

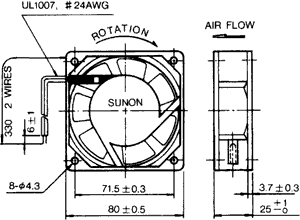

    Fan dimensions 80x80x25mm
    Kind of Bearing ball bearing
    Min. insulation resistance 500MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Type of fan AC
    Static pressure 4.82mm H<sub>2</sub>O
    Noise level 34.5dBA
