Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 17A/277VAC; 450mW

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: S22-12-1A
    Manufacturer: SHORI ELECTRIC
    Manufacturer code: S22-12-1A
    • Mounting
    • Operating temperature
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Coil current

    1.53 € 1.53 € (wo VAT) 1.53 EUR

    1.53 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 17A/277VAC; 450mW

    Mounting PCB
    Operating temperature -40...70°C

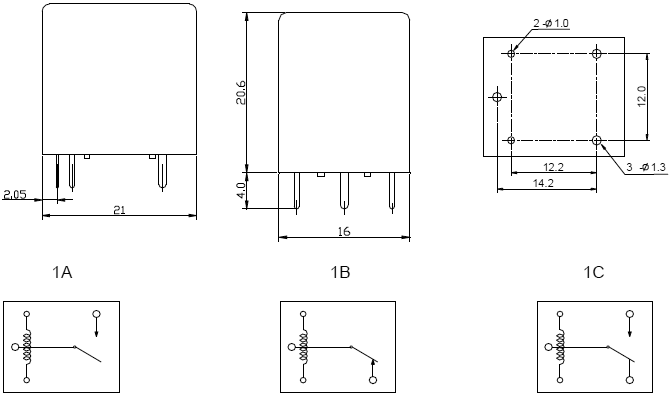

    Body dimensions 21x20.6x16mm
    Mechanical durability 10000000cycles
    Switched voltage max. 30V DC, max. 277V AC
    Electrical life 100000cycles
    Coil resistance 400Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 16A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 17A / 277V AC
    Contact current max. 16A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 450mW
    Relay series S22
    Coil current 30mA
