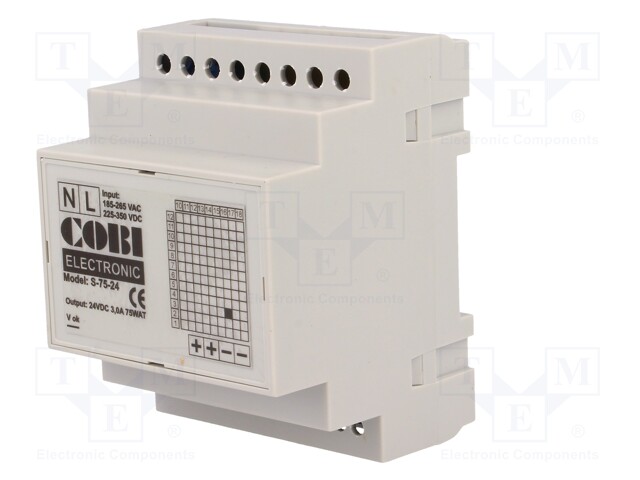

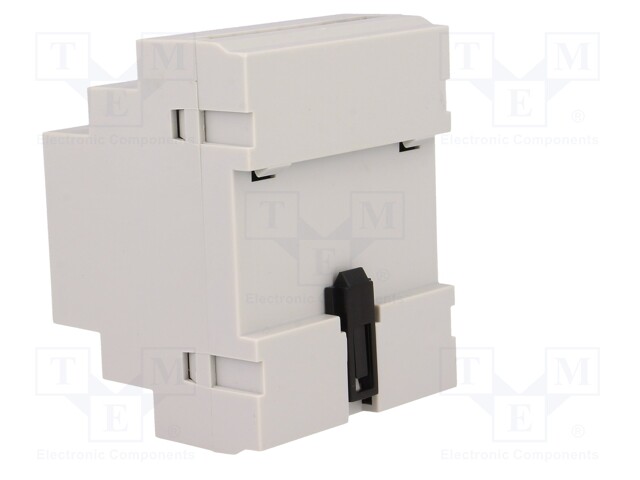

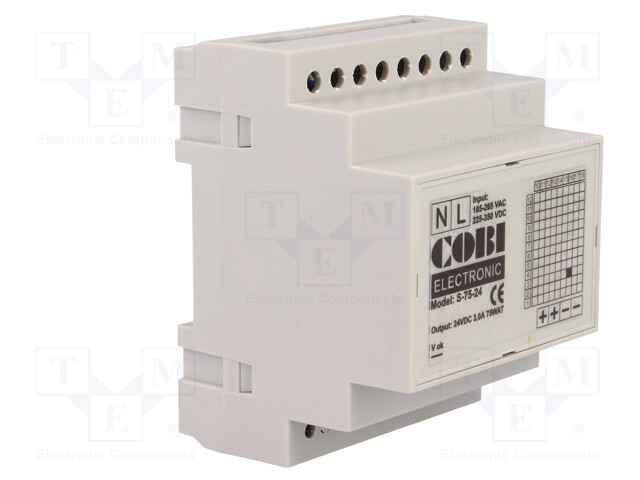

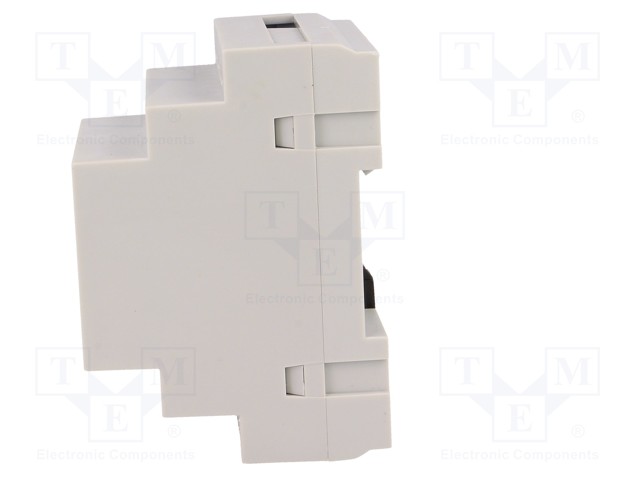

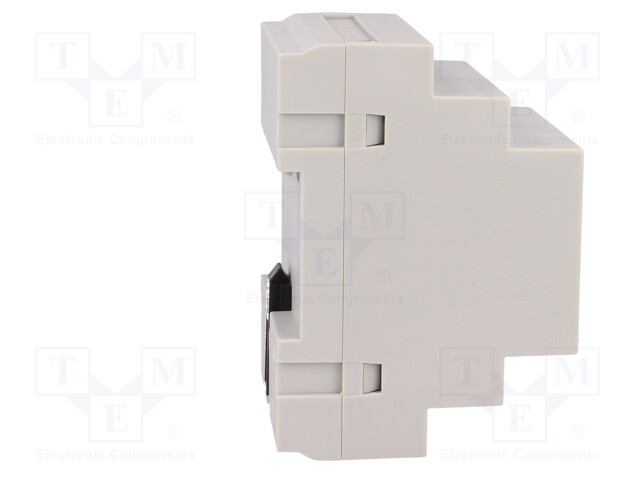

Power supply: switched-mode; 75W; 24VDC; 3A; 85÷265VAC; 90÷350VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: S-75-24
    Manufacturer: COBI ELECTRONIC
    Manufacturer code: S-75-24
    • Output current
    • Mounting
    • Supply voltage
    • Supply voltage
    • Power
    • Operating temperature
    • IP rating
    • Protection
    • Protection
    • Protection
    • Protection
    • Protection
    • Type of power supply
    • Body dimensions
    • Output voltage
    • Insulation voltage
    • Electrical connection
    • Kind of power supply

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Power supply: switched-mode; 75W; 24VDC; 3A; 85÷265VAC; 90÷350VDC

    Output current 3A
    Mounting for DIN rail mounting
    Supply voltage 85...265V AC, 90...350V DC
    Power 75W
    Operating temperature -25...60°C
    IP rating IP20
    Protection overheating, anti-overload, anti-overvoltage, short circuit protection, voltage drop
    Type of power supply switched-mode
    Body dimensions 90x65x70.5mm
    Output voltage 24V DC
    Insulation voltage 2.5kV
    Electrical connection terminal block
    Kind of power supply for DIN rail
