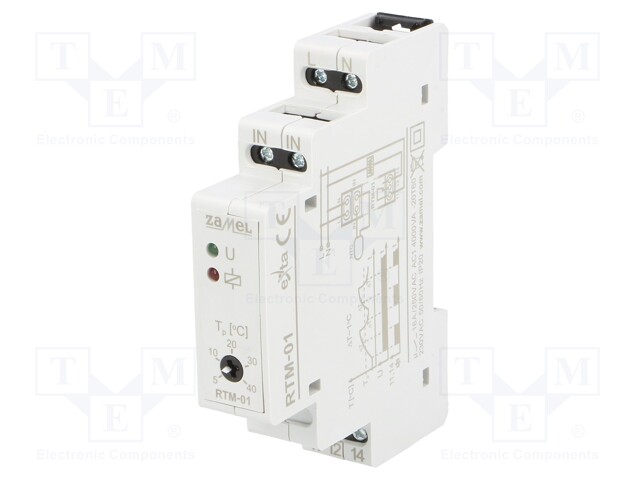

Module: regulator; NTC; temperature; Out: SPDT,relay; DIN; 5÷40°C

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RTM-01
    Manufacturer: ZAMEL
    Manufacturer code: RTM-01
    • Mounting
    • Supply voltage
    • Operating temperature
    • IP rating
    • Type of module
    • Series
    • Body dimensions
    • Additional functions
    • Additional functions
    • Number of terminals
    • Kind of output
    • Kind of output
    • Kind of temperature sensor
    • Controlled parameter
    • The programming method

    38.85 € 38.85 € (wo VAT) 38.85 EUR

    38.85 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Module: regulator; NTC; temperature; Out: SPDT,relay; DIN; 5÷40°C

    Mounting for DIN rail mounting
    Supply voltage 230V AC
    Operating temperature -20...60°C
    IP rating IP20
    Type of module regulator
    Series RTM
    Body dimensions 90x17.5x66mm
    Additional functions control of receivers depending on the temperature, LED status indicator
    Number of terminals 7
    Kind of output relay, SPDT
    Kind of temperature sensor NTC
    Controlled parameter temperature
    The programming method potentiometer
