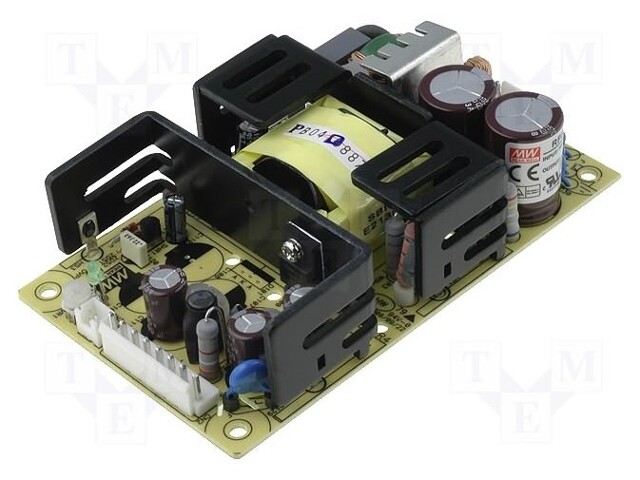

Power supply: switched-mode; 75W; 127÷370VDC; 90÷264VAC; OUT: 1

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RPS-75-15
    Manufacturer: MEAN WELL
    Manufacturer code: RPS-75-15
    • Output current
    • Supply voltage
    • Supply voltage
    • Power
    • Operating temperature
    • Protection
    • Protection
    • Protection
    • Type of power supply
    • Series
    • Application
    • Body dimensions
    • Output voltage
    • Efficiency
    • Number of outputs
    • Electrical connection
    • Kind of power supply

    23.03 € 23.03 € (wo VAT) 23.03 EUR

    23.03 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Power supply: switched-mode; 75W; 127÷370VDC; 90÷264VAC; OUT: 1

    Output current 5A
    Supply voltage 90...264V AC, 127...370V DC
    Power 75W
    Operating temperature -20...70°C
    Protection anti-overload, anti-overvoltage, short circuit protection
    Type of power supply switched-mode
    Series RPS-75
    Application medical applications
    Body dimensions 127x76.2x31mm
    Output voltage 15V DC
    Efficiency 83%
    Number of outputs 1
    Electrical connection plug with 3,96mm pitch
    Kind of power supply open
