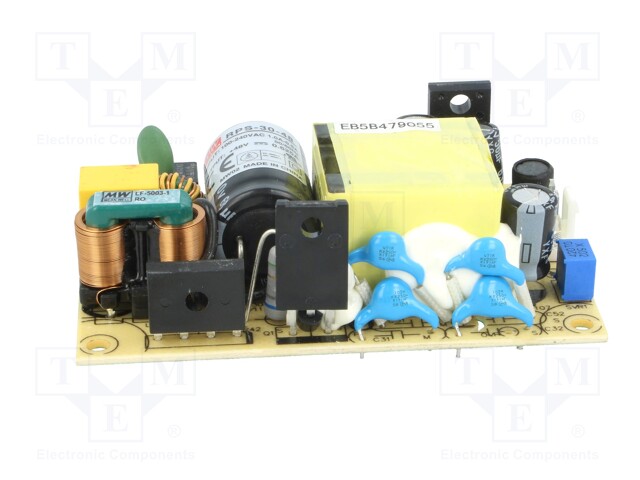

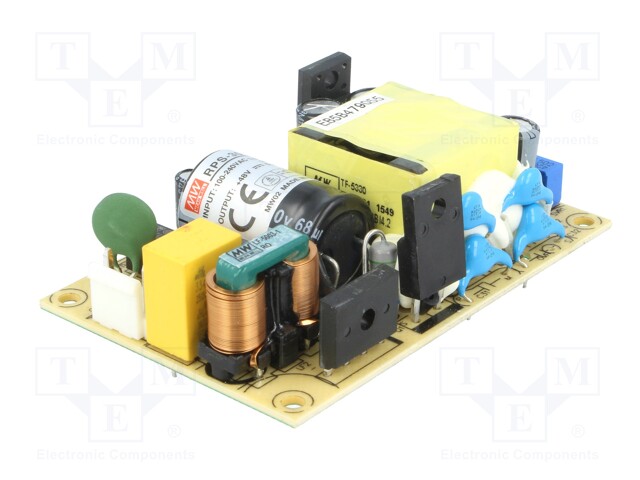

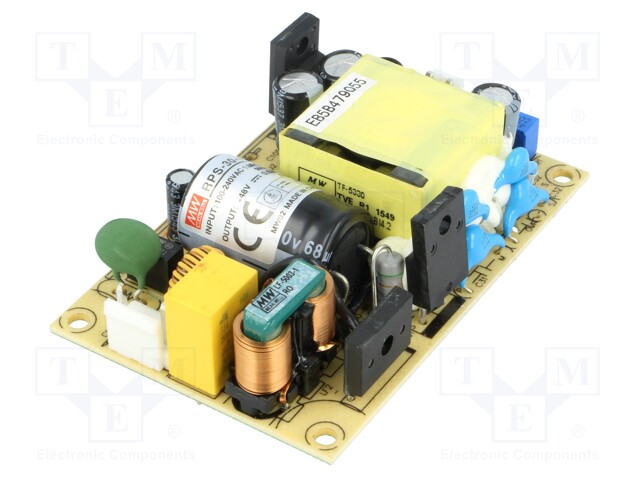

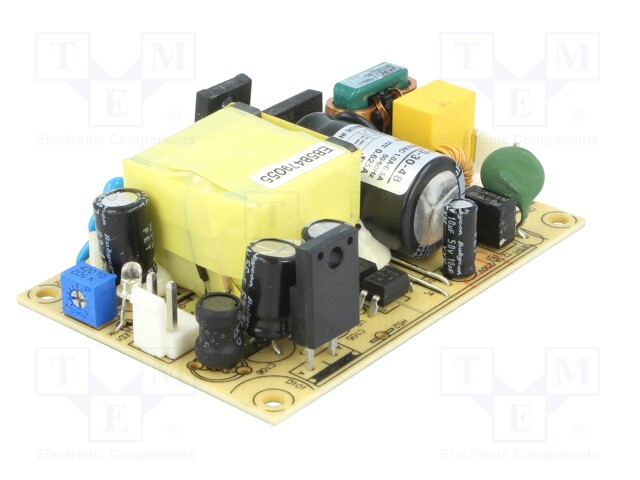

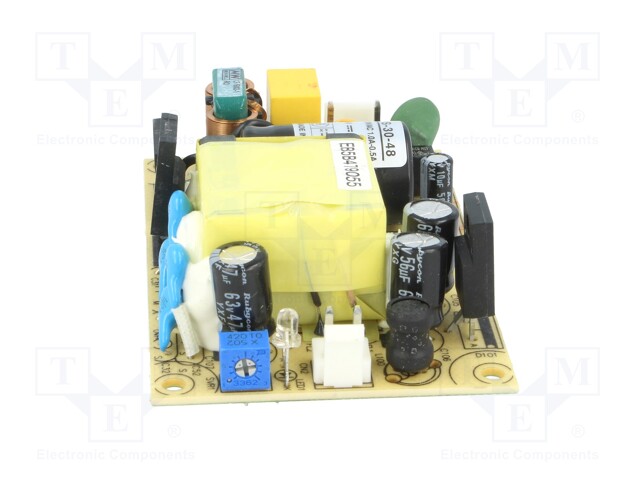

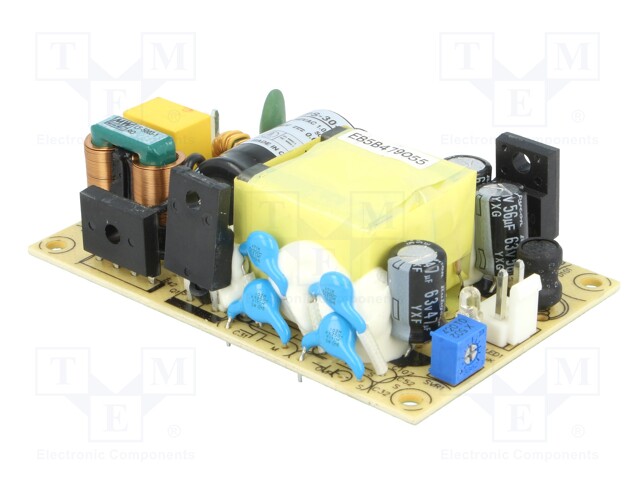

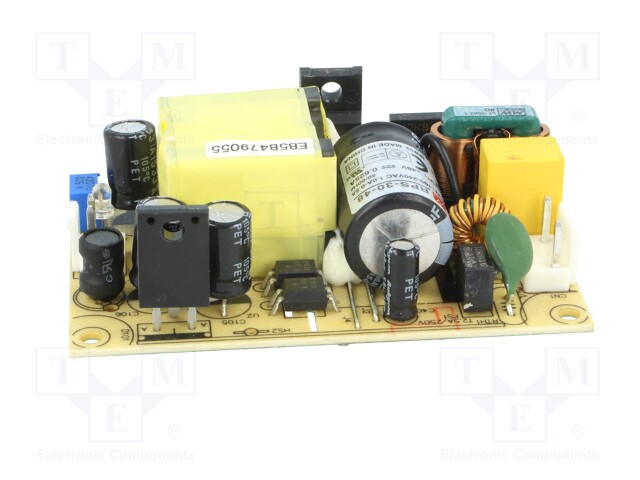

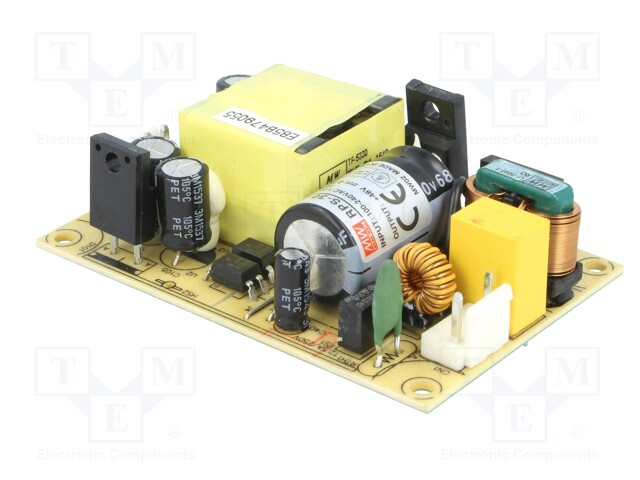

Power supply: switched-mode; 30W; 80÷264VAC; OUT: 1; 48VDC; 0.625A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RPS-30-48
    Manufacturer: MEAN WELL
    Manufacturer code: RPS-30-48
    • Output current
    • Supply voltage
    • Power
    • Operating temperature
    • Protection
    • Protection
    • Protection
    • Type of power supply
    • Series
    • Application
    • Body dimensions
    • Output voltage
    • Efficiency
    • Number of outputs
    • Electrical connection
    • Kind of power supply

    15.43 € 15.43 € (wo VAT) 15.43 EUR

    15.43 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Power supply: switched-mode; 30W; 80÷264VAC; OUT: 1; 48VDC; 0.625A

    Output current 625mA
    Supply voltage 80...264V AC
    Power 30W
    Operating temperature -30...70°C
    Protection anti-overload, anti-overvoltage, short circuit protection
    Type of power supply switched-mode
    Series RPS-30
    Application medical applications
    Body dimensions 76.2x50.8x24mm
    Output voltage 48V DC
    Efficiency 91%
    Number of outputs 1
    Electrical connection plug with 3,96mm pitch
    Kind of power supply open
