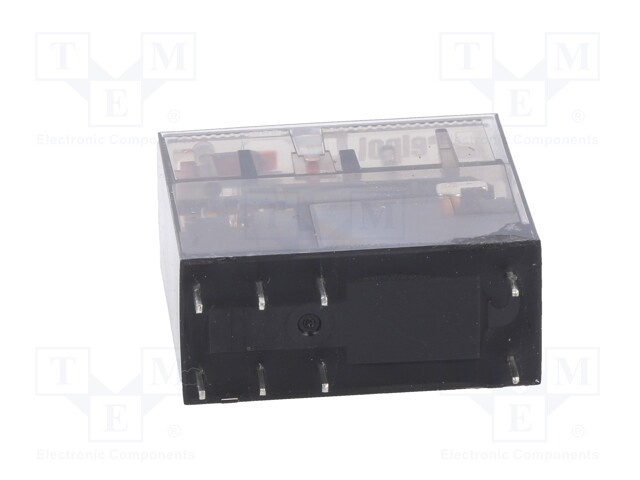

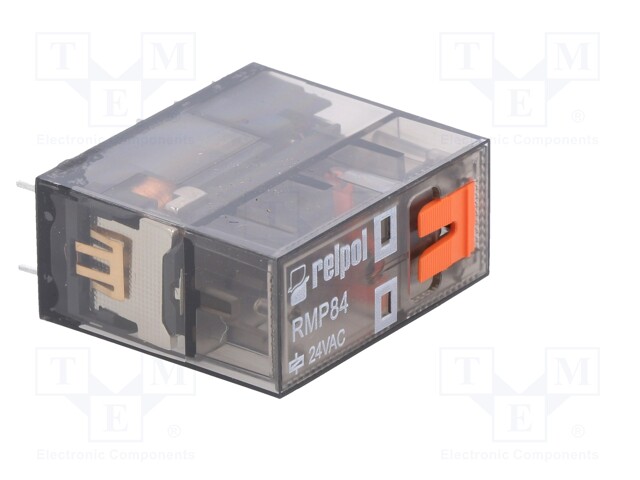

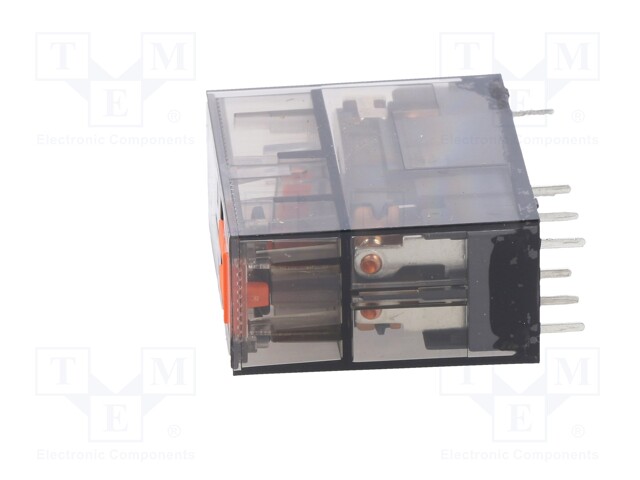

Relay: electromagnetic; DPDT; Ucoil: 24VAC; 8A/250VAC; 8A/24VDC; 8A
Multiples:
1.0
Minimum quantity:
1.0
Product code:
RMP84-2012-25-5024-WT
Manufacturer: RELPOL
Manufacturer code: RMP84-2012-25-5024-WT
Product downloads
Specification for Relay: electromagnetic; DPDT; Ucoil: 24VAC; 8A/250VAC; 8A/24VDC; 8A
Mounting | PCB |
Operating temperature | -40...70°C |
IP rating | IP40 |
Number of pins | 8 |
Contact material | AgNi |
Terminal pitch | 5.04mm |
Height | 25.5mm |
Body colour | transparent tinted |

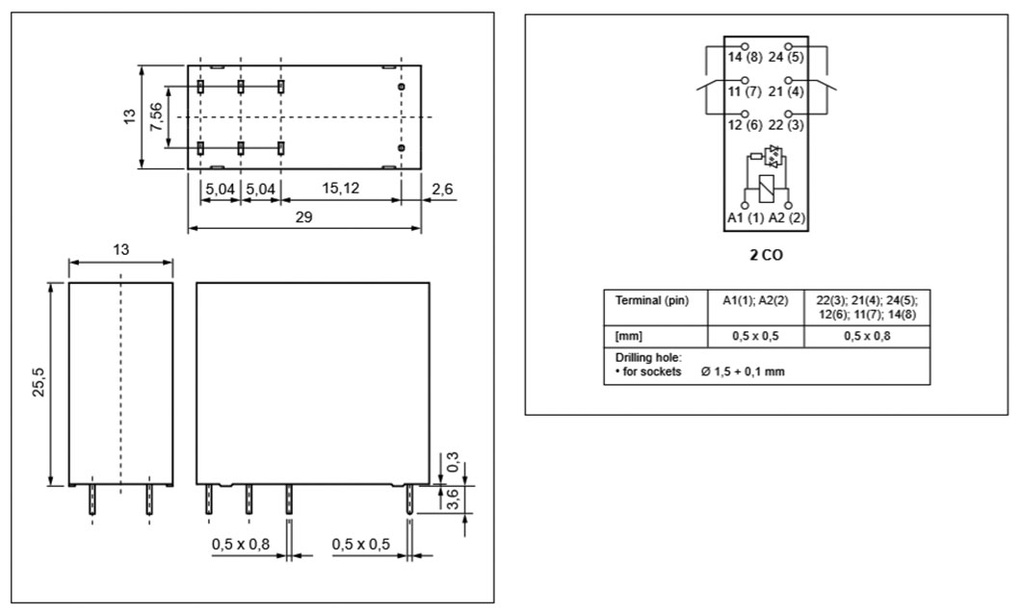

Body dimensions | 29x13x25.5mm |
Mechanical durability | 1000000cycles |
Insulation voltage | 5kV |
Switched voltage | max. 250V DC, max. 440V AC |
Coil resistance | 350Ω |
Contacts configuration | DPDT |
DC contacts rating @R | 8A / 24V DC |
Contact resistance | 100MΩ |
AC contacts rating @R | 8A / 250V AC |
Contact current max. | 8A |
Relay variant | miniature |
Type of relay | electromagnetic |
Coil power consumption | 0.75VA |
Relay series | RMP84 |
Operate time | 15ms |
Release time | 8ms |
