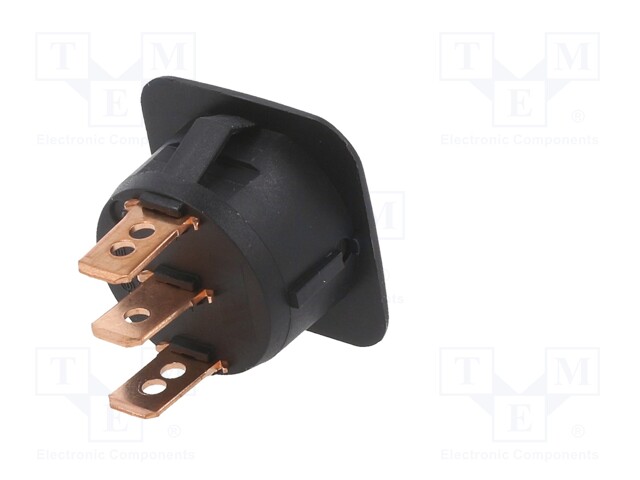

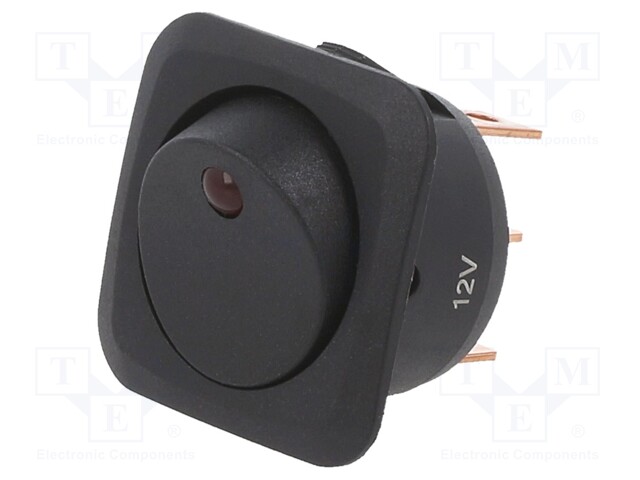

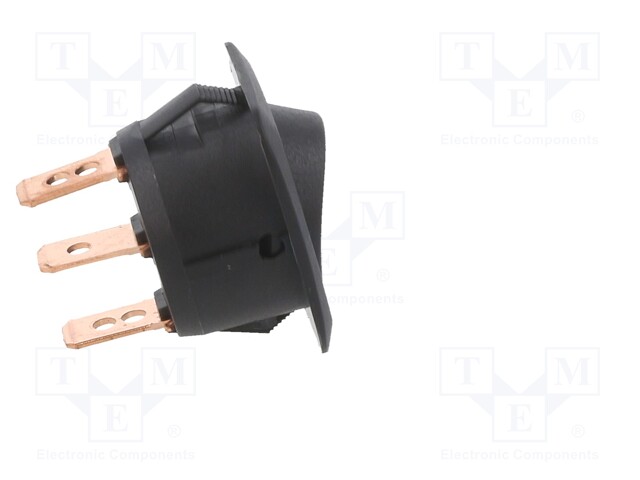

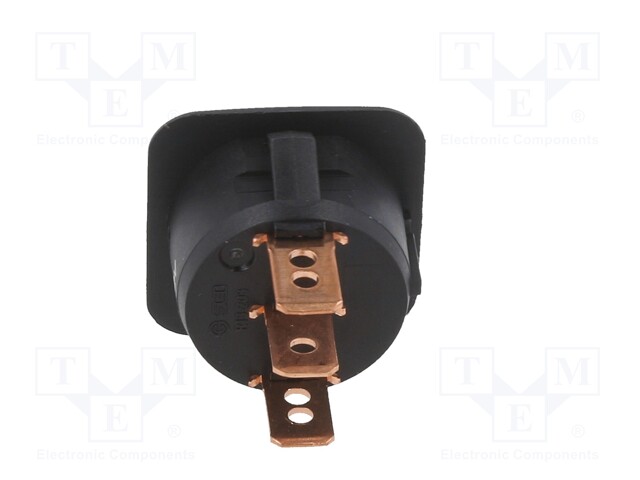

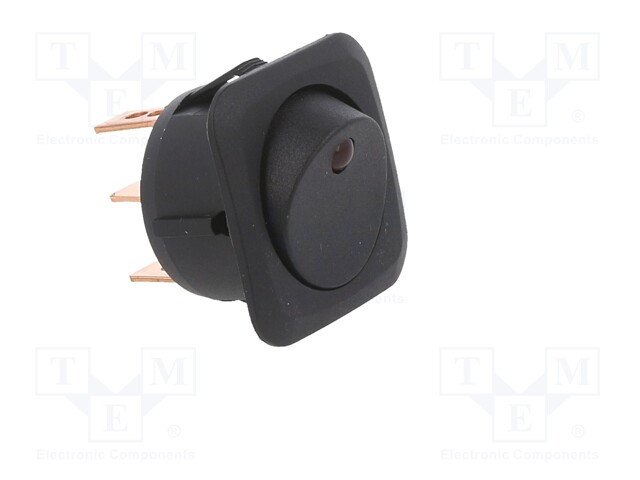

ROCKER; SPST; Pos: 2; OFF-ON; 25A/12VDC; black; LED; Rcont max: 50mΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RC-1A-DC-1-RL
    Manufacturer: SWITCH COMPONENTS
    Manufacturer code: RC-1A-DC-1-RL
    • Mounting
    • Operating temperature
    • Type of switch
    • Number of positions
    • Leads
    • Max. contact resistance:
    • Flammability rating
    • Body colour
    • Backlight colour
    • Illumination
    • Shape
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number
    • Button shape
    • Key button colour

    7.19 € 7.19 € (wo VAT) 7.19 EUR

    7.19 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for ROCKER; SPST; Pos: 2; OFF-ON; 25A/12VDC; black; LED; Rcont max: 50mΩ

    Mounting on panel
    Operating temperature -20...85°C
    Type of switch ROCKER
    Number of positions 2
    Leads 6,3x0,8mm connectors
    Max. contact resistance: 50mΩ
    Flammability rating UL94V-2
    Body colour black
    Backlight colour red
    Illumination LED
    Shape square
    Contacts configuration SPST
    DC contacts rating @R 25A / 12V DC
    Switching method ON-OFF
    Stable positions number 2
    Button shape round
    Key button colour black
