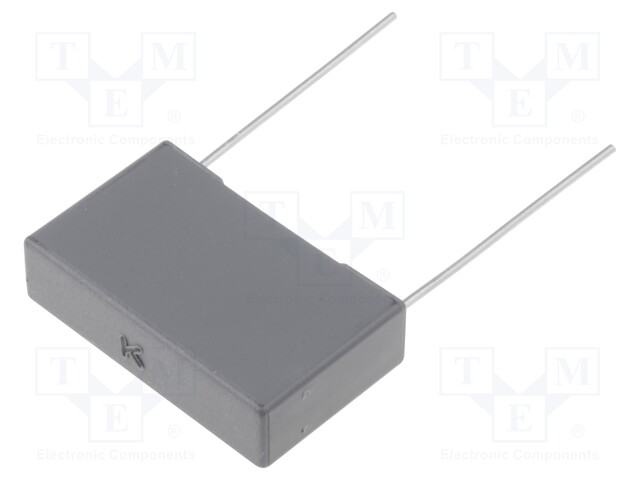

Capacitor: polypropylene; X2; 470nF; 22.5mm; ±10%; 26.5x7x16mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: R46KN347050N0K
    Manufacturer: KEMET
    Manufacturer code: R46KN347050N0K
    • Mounting
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Body dimensions
    • Max. operating voltage
    • Max. operating voltage
    • Capacitance
    • Kind of capacitor
    • Type of capacitor
    • Capacitor application
    • Lead length
    • Climate class

    1.70 € 1.70 € (wo VAT) 1.7 EUR

    1.70 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Capacitor: polypropylene; X2; 470nF; 22.5mm; ±10%; 26.5x7x16mm

    Mounting THT
    Operating temperature -40...110°C
    Tolerance ±10%
    Terminal pitch 22.5mm
    Body dimensions 26.5x7x16mm
    Max. operating voltage 275V AC, 560V DC
    Capacitance 470nF
    Kind of capacitor X2
    Type of capacitor polypropylene
    Capacitor application between the supply poles
    Lead length 25mm
    Climate class IEC60068-1
