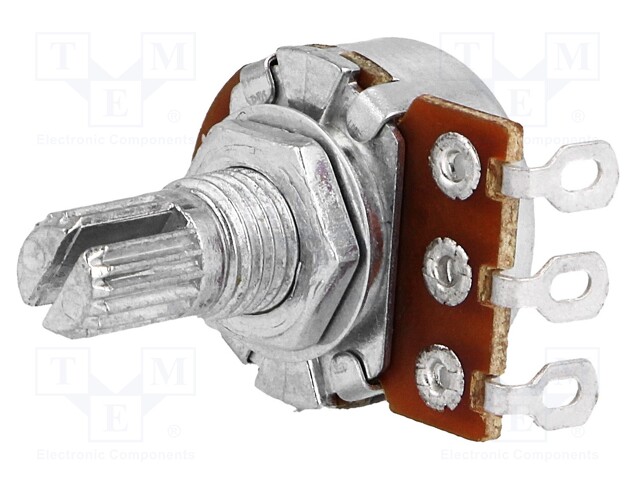

Potentiometer: shaft; single turn; 22kΩ; 125mW; ±20%; on cable; 6mm

    Multiples: 1.0
    Minimum quantity: 2.0
    Product code: R16148-1A-1-B22K
    Manufacturer: SR PASSIVES
    Manufacturer code: R16148-1A-1-B22K
    • Mounting
    • Power
    • Resistance
    • Tolerance
    • Leads
    • Body material
    • Body dimensions
    • Max. operating voltage
    • Panel cutout diameter
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Thread length
    • L shaft length
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics
    • Mechanical rotation angle
    • Potentiometer features
    • Poles number

    0.79 € 0.79 € (wo VAT) 0.79 EUR

    0.79 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Potentiometer: shaft; single turn; 22kΩ; 125mW; ±20%; on cable; 6mm

    Mounting on cable
    Power 125mW
    Resistance 22kΩ
    Tolerance ±20%
    Leads solder lugs
    Body material metal
    Body dimensions Ø17x9.2mm
    Max. operating voltage 200V
    Panel cutout diameter 7.2mm
    Shaft length 9mm
    Shaft diameter 6mm
    Shaft surface knurled
    Thread length 6mm
    L shaft length 15mm
    Kind of potentiometer single turn
    Type of potentiometer shaft
    Track material carbon
    Characteristics linear
    Mechanical rotation angle 300°
    Potentiometer features mono
    Poles number 1
