ROCKER; SPST; Pos: 2; OFF-ON; 10A/250VAC; black; IP65; none; 50mΩ
Multiples:
1.0
Minimum quantity:
1.0
Product code:
R13-278A8-02
Manufacturer: SCI
Manufacturer code: R13-278A8-02
Product downloads
Specification for ROCKER; SPST; Pos: 2; OFF-ON; 10A/250VAC; black; IP65; none; 50mΩ
Operating temperature | -20...85°C |
IP rating | IP65 |
Type of switch | ROCKER |
Number of positions | 2 |
Leads | 6,3x0,8mm connectors |
Max. contact resistance: | 50mΩ |
Flammability rating | UL94V-2 |
Mounting hole diameter | 23.3x11.6mm |
Body colour | black |

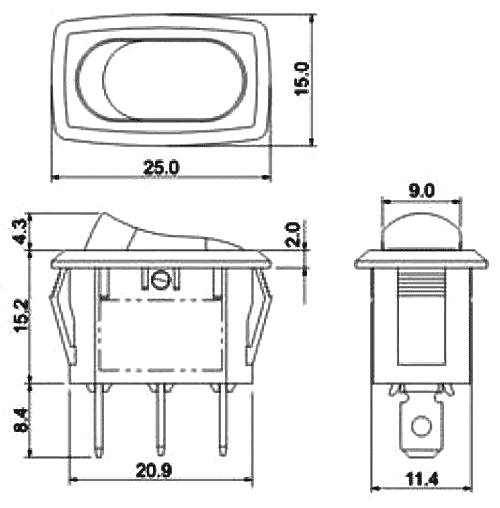

Body dimensions | 25x15x17.2mm |
Panel thickness | max. 3mm |
Illumination | none |
Shape | rectangular |
Contacts configuration | SPST |
AC contacts rating @R | 10A / 250V AC |
Switching method | ON-OFF |
Stable positions number | 2 |
Key button colour | black |
Button marking | blank |
