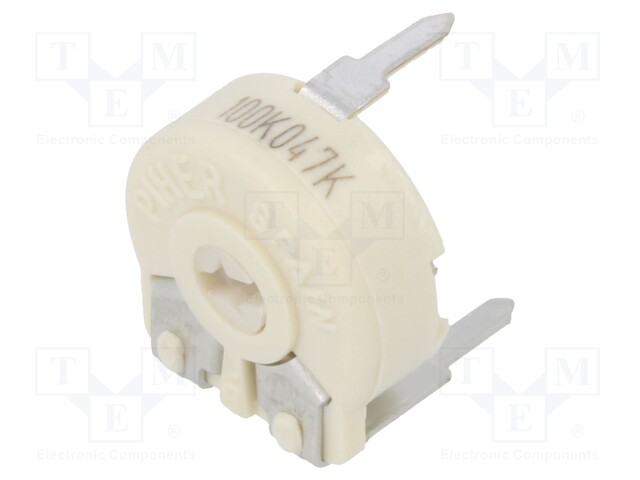

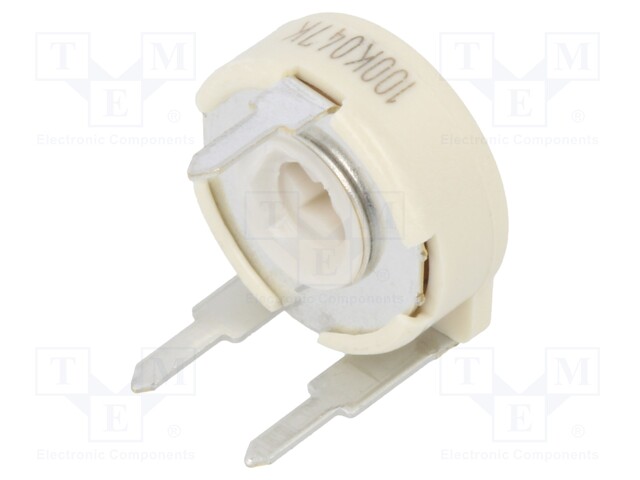

Potentiometer: mounting; single turn,horizontal; 100kΩ; 330mW

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PTC10LV10-104A1010-1
    Manufacturer: PIHER
    Manufacturer code: PTC10LV10-104A1010
    • Mounting
    • Power
    • Resistance
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Mechanical durability
    • Kind of potentiometer
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics
    • Temperature coefficient
    • Electrical rotation angle

    1.72 € 1.72 € (wo VAT) 1.72 EUR

    1.72 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Potentiometer: mounting; single turn,horizontal; 100kΩ; 330mW

    Mounting THT
    Power 330mW
    Resistance 100kΩ
    Operating temperature -40...90°C
    Tolerance ±10%
    Terminal pitch 5x10mm
    Mechanical durability 1000cycles
    Kind of potentiometer horizontal, single turn
    Type of potentiometer mounting
    Track material cermet
    Characteristics linear
    Temperature coefficient 100ppm/°C
    Electrical rotation angle 220°
