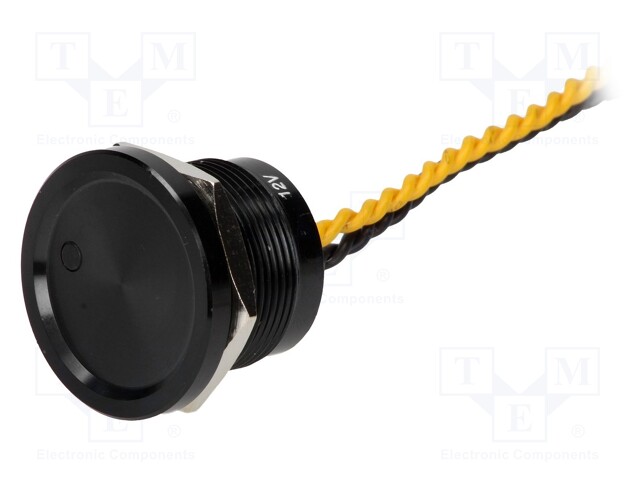

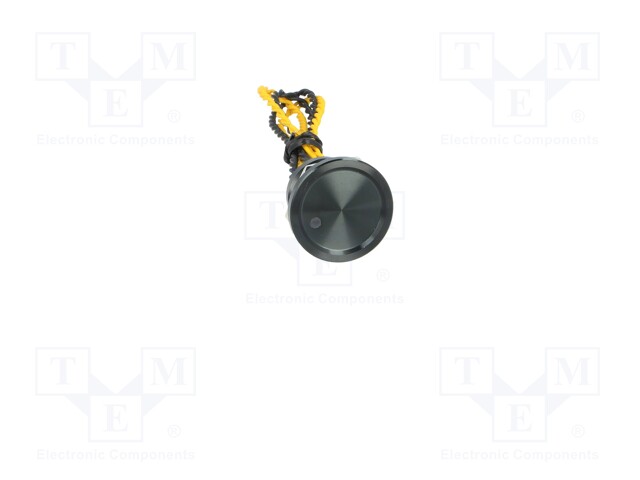

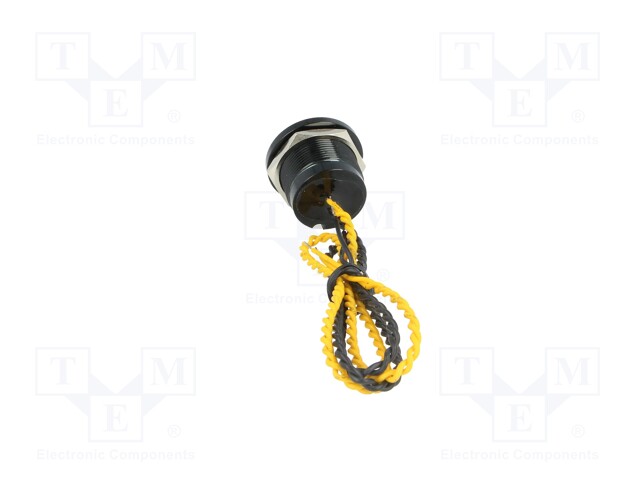

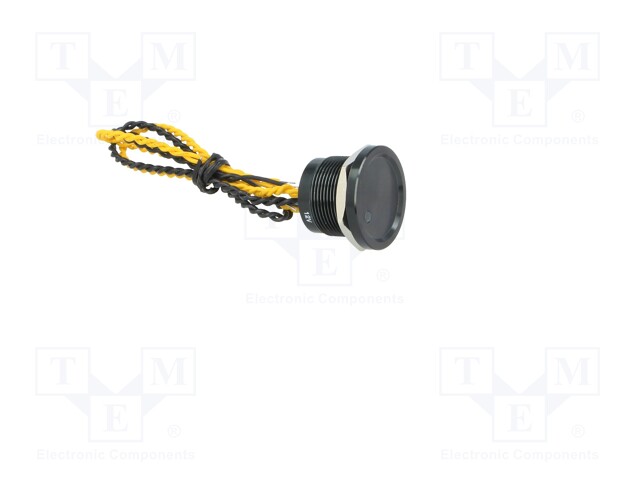

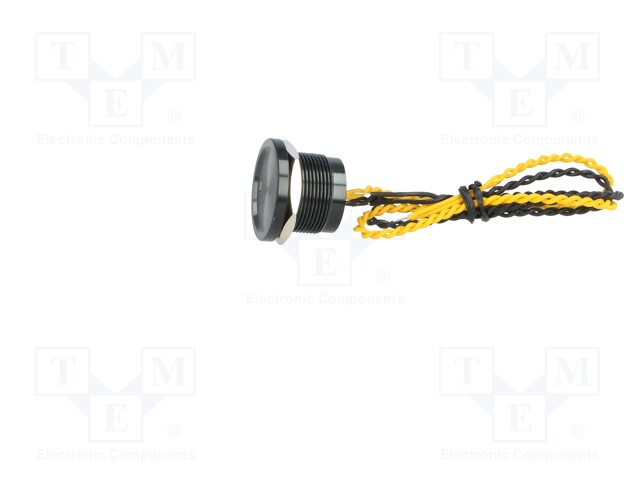

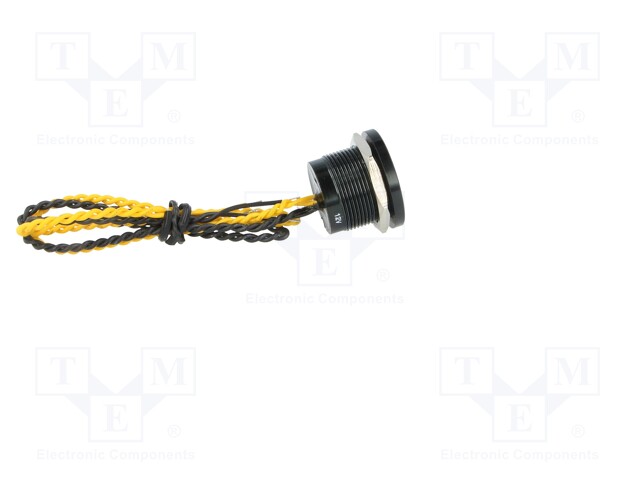

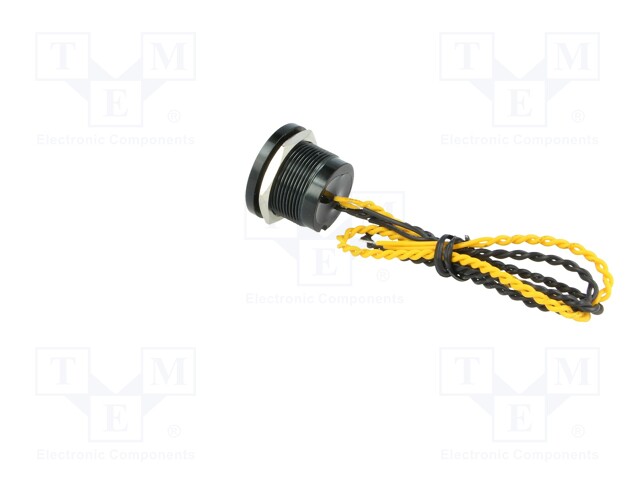

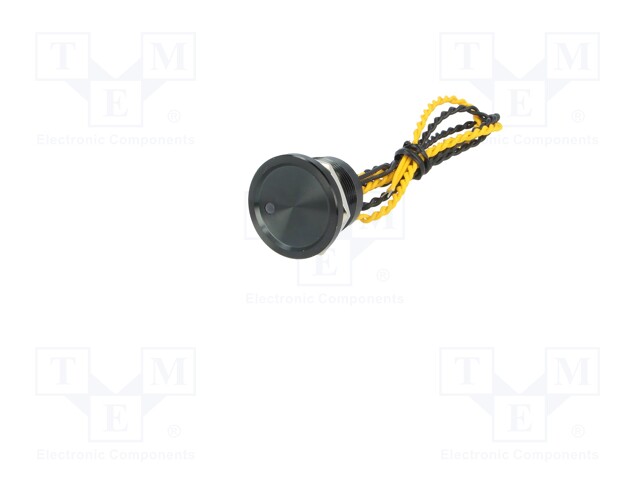

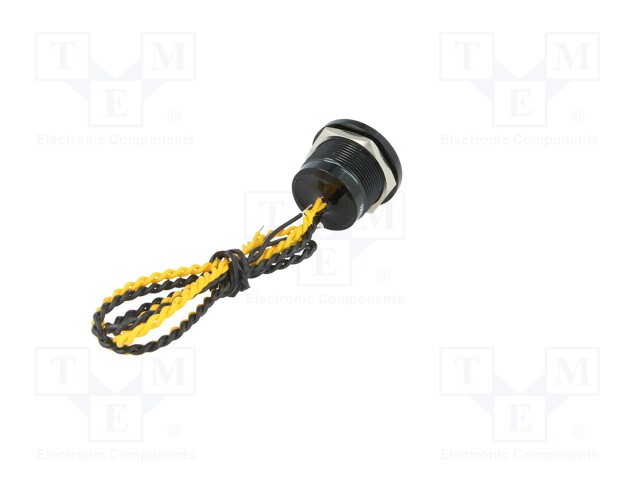

Switch: piezoelectric; Pos: 2; SPST-NO; 0.2A/24VAC; 0.2A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PS223Z10YBK1Y12VD
    Manufacturer: ONPOW
    Manufacturer code: PS223Z10YBK1Y12VD
    • Operating temperature
    • IP rating
    • Type of switch
    • Number of positions
    • Leads
    • Body material
    • Mounting hole diameter
    • Body colour
    • Switched voltage
    • Switched voltage
    • Backlight colour
    • Illumination
    • Illumination
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Button shape
    • Contact current max.

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: piezoelectric; Pos: 2; SPST-NO; 0.2A/24VAC; 0.2A/24VDC

    Operating temperature -40...75°C
    IP rating IP68
    Type of switch piezoelectric
    Number of positions 2
    Leads 30mm leads
    Body material aluminium
    Mounting hole diameter Ø22mm
    Body colour black
    Switched voltage max. 24V AC, max. 24V DC
    Backlight colour yellow
    Illumination point, LED
    Electrical life 50000000cycles
    Contacts configuration SPST-NO
    DC contacts rating @R 0.2A / 24V DC
    AC contacts rating @R 0.2A / 24V AC
    Switching method OFF-(ON)
    Stable positions number 1
    Operating Force 6N
    Button shape concave
    Contact current max. 0.2A
