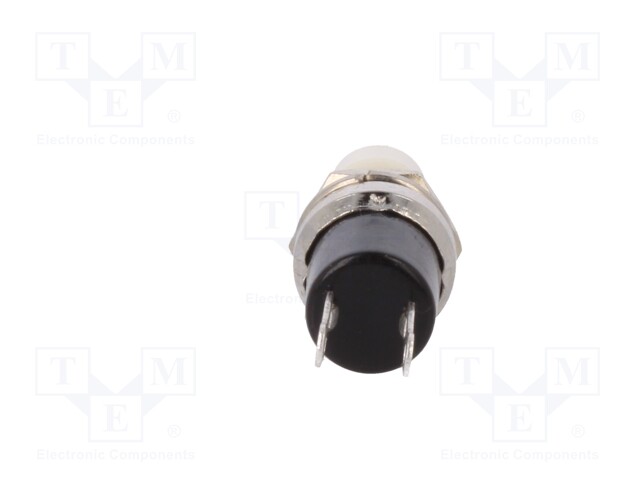

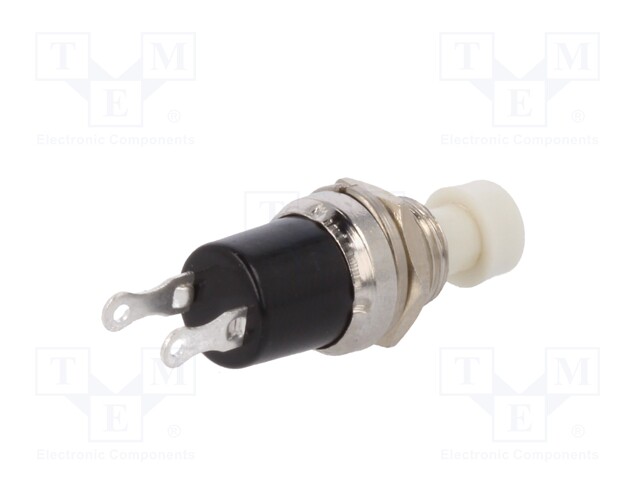

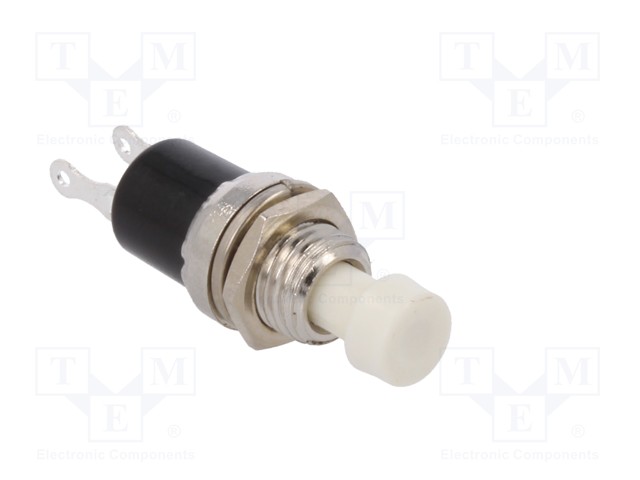

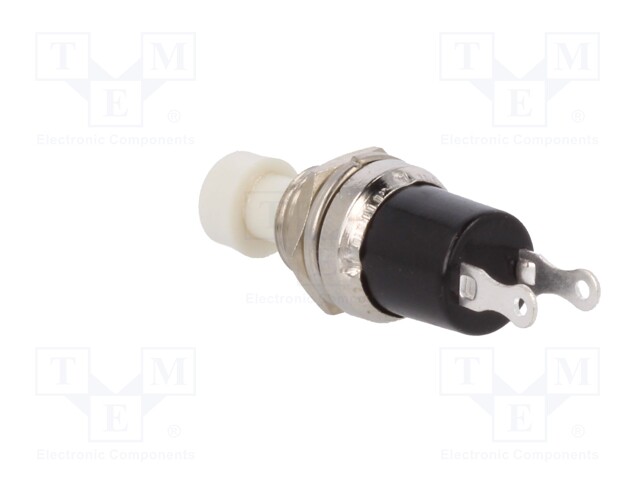

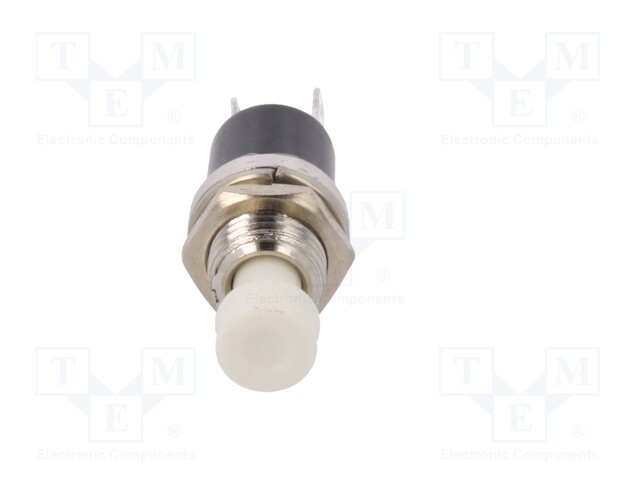

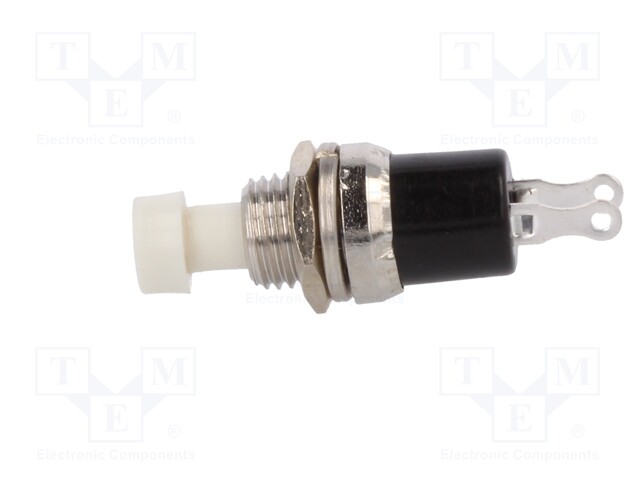

Switch: push-button; Pos: 2; SPST-NO; 1A/250VAC; white; Cutout: Ø7mm

    Multiples: 1.0
    Minimum quantity: 2.0
    Product code: PS10BWH
    Manufacturer: NINIGI
    Manufacturer code: PS10BWH
    • Mounting
    • Operating temperature
    • Type of switch
    • Number of positions
    • Leads
    • Max. contact resistance:
    • Body material
    • Body material
    • Mounting hole diameter
    • Body dimensions
    • Illumination
    • Electrical life
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Actuator colour
    • Button shape
    • Button shape
    • Height above panel

    1.26 € 1.26 € (wo VAT) 1.26 EUR

    1.26 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: push-button; Pos: 2; SPST-NO; 1A/250VAC; white; Cutout: Ø7mm

    Mounting on panel
    Operating temperature -25...70°C
    Type of switch push-button
    Number of positions 2
    Leads for soldering
    Max. contact resistance: 20mΩ
    Body material metal, plastic
    Mounting hole diameter Ø7mm
    Body dimensions Ø9.2x27.5mm
    Illumination none
    Electrical life 50000cycles
    Contacts configuration SPST-NO
    AC contacts rating @R 1A / 250V AC
    Switching method OFF-(ON)
    Stable positions number 1
    Actuator colour white
    Button shape prominent, round
    Height above panel 12mm
