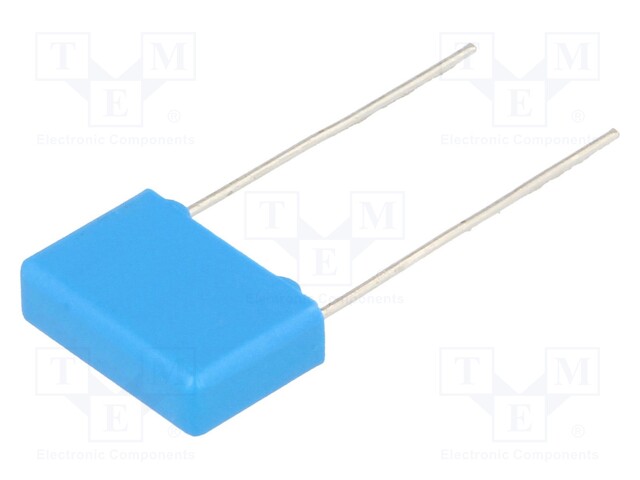

Capacitor: polypropylene; 100nF; 37.5mm; ±5%; 13x24x41mm; 800V/μs

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PHE450SR6100JR06L2
    Manufacturer: KEMET
    Manufacturer code: PHE450SR6100JR06L2
    • Mounting
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Body dimensions
    • Max. operating voltage
    • Max. operating voltage
    • Capacitance
    • Alias
    • Type of capacitor
    • Climate class
    • Climate class
    • Pulse resistance

    6.15 € 6.15 € (wo VAT) 6.15 EUR

    6.15 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Capacitor: polypropylene; 100nF; 37.5mm; ±5%; 13x24x41mm; 800V/μs

    Mounting THT
    Operating temperature -55...105°C
    Tolerance ±5%
    Terminal pitch 37.5mm
    Body dimensions 13x24x41mm
    Max. operating voltage 700V AC, 2kV DC
    Capacitance 100nF
    Alias F450RF104J2K0C
    Type of capacitor polypropylene
    Climate class 55/105/56, IEC60068-1
    Pulse resistance 800V/μs
