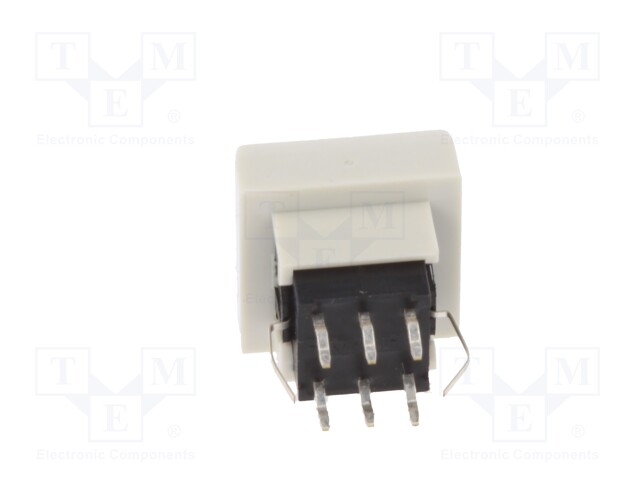

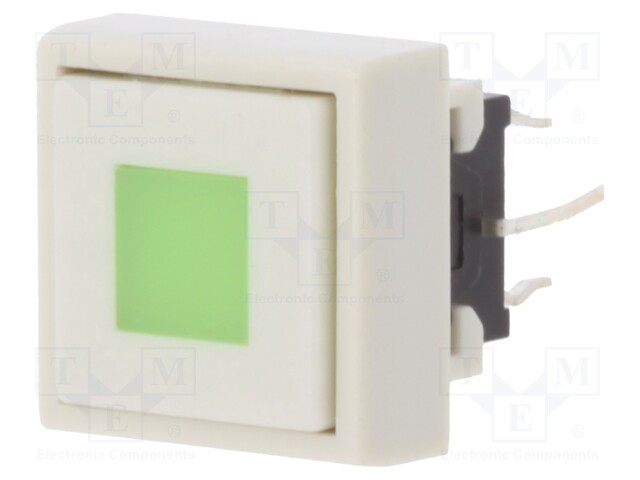

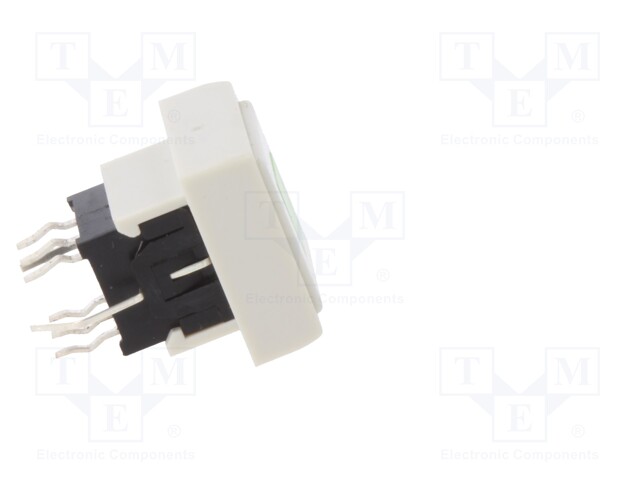

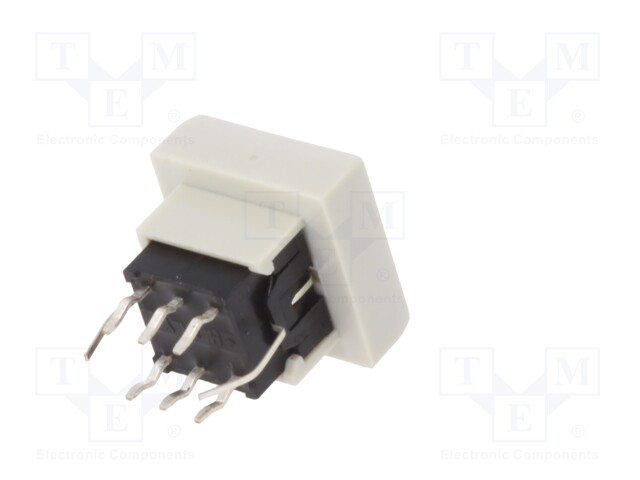

Switch: keypad; Pos: 2; DPDT; 0.1A/30VDC; white; Illumin: LED; green

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PB6135AL-3
    Manufacturer: HIGHLY
    Manufacturer code: PB6135AL-3
    • Mounting
    • Operating temperature
    • Type of switch
    • Number of positions
    • Leads
    • Leads
    • Max. contact resistance:
    • Terminal pitch
    • Backlight colour
    • Illumination
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Actuator colour
    • Button shape
    • Button height

    2.39 € 2.39 € (wo VAT) 2.39 EUR

    2.39 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: keypad; Pos: 2; DPDT; 0.1A/30VDC; white; Illumin: LED; green

    Mounting THT
    Operating temperature -10...80°C
    Type of switch keypad
    Number of positions 2
    Leads for PCB, straight
    Max. contact resistance: 50mΩ
    Terminal pitch 2.54x5.08mm
    Backlight colour green
    Illumination LED
    Electrical life 10000cycles
    Contacts configuration DPDT
    DC contacts rating @R 0.1A / 30V DC
    Switching method ON-ON
    Stable positions number 2
    Operating Force 1.5N
    Actuator colour white
    Button shape square
    Button height 12.5mm
