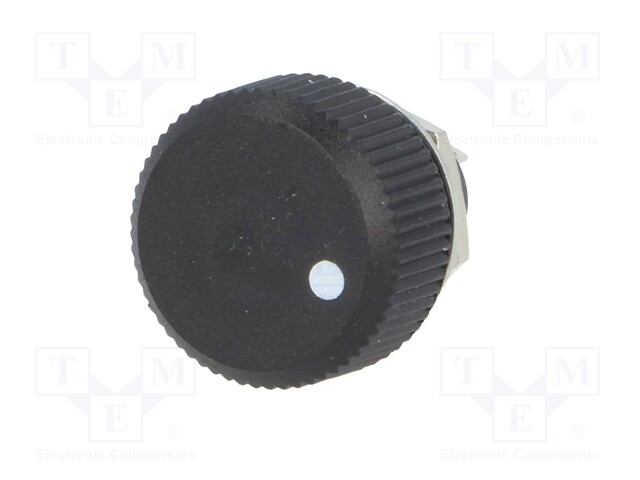

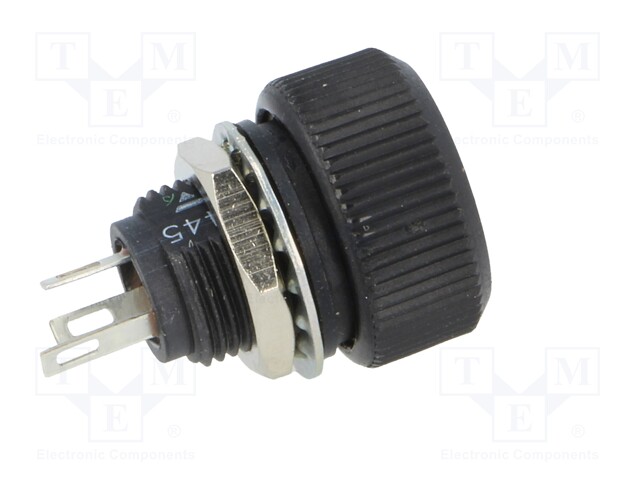

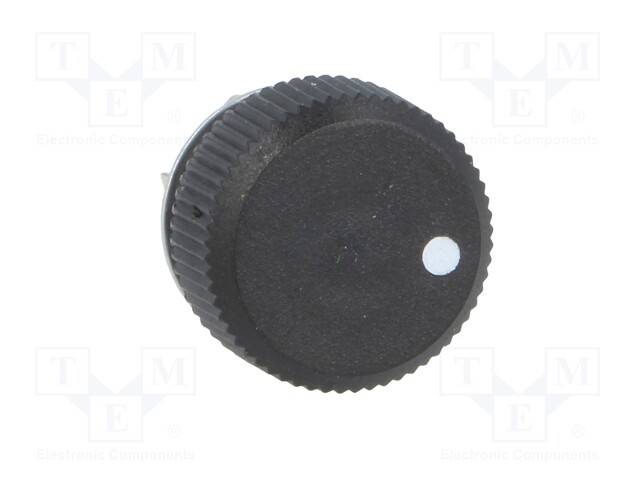

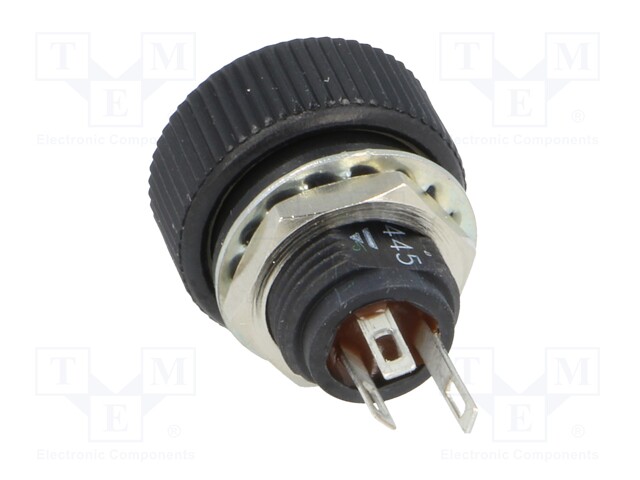

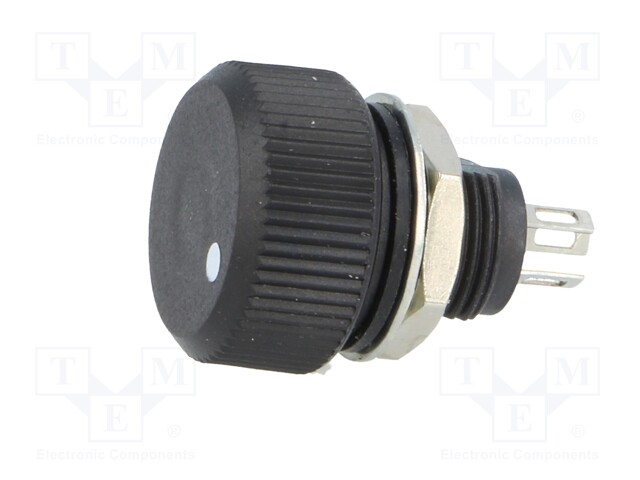

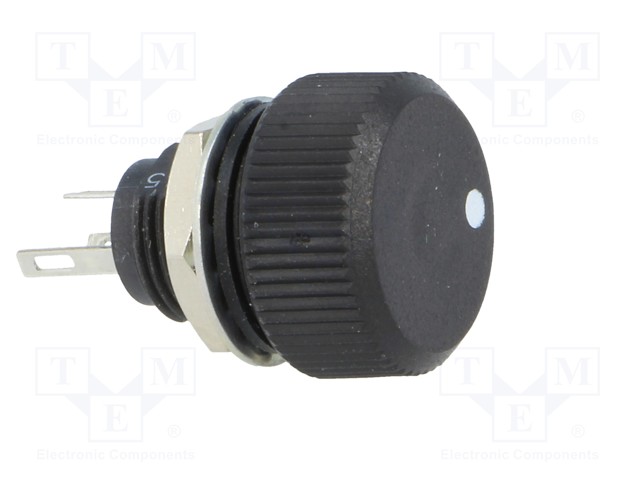

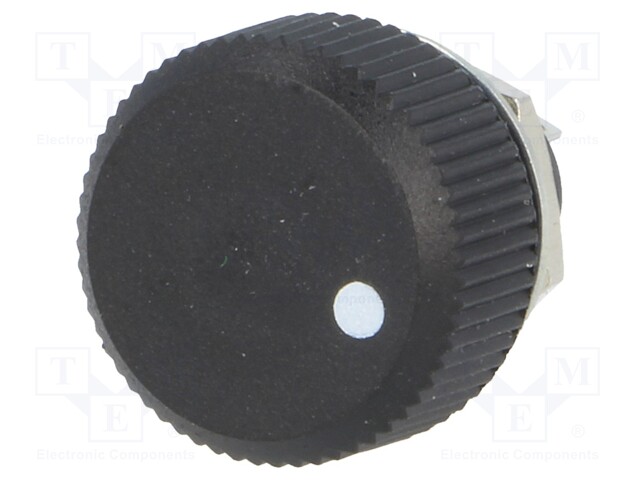

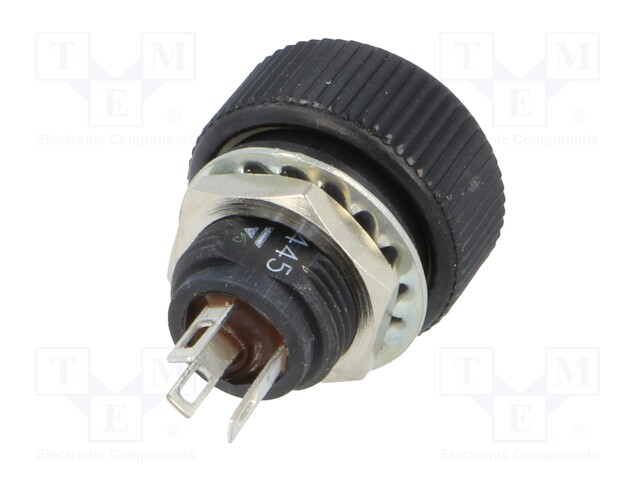

Potentiometer: shaft; single turn; 1MΩ; 500mW; ±20%; linear; cermet

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: P16NP105MAB15
    Manufacturer: VISHAY
    Manufacturer code: P16NP105MAB15
    • Mounting
    • Power
    • Resistance
    • Operating temperature
    • IP rating
    • Tolerance
    • Leads
    • Panel cutout diameter
    • Knob dimensions
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics
    • Temperature coefficient
    • Electrical rotation angle
    • Potentiometer features
    • Potentiometer features

    25.05 € 25.05 € (wo VAT) 25.05 EUR

    25.05 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Potentiometer: shaft; single turn; 1MΩ; 500mW; ±20%; linear; cermet

    Mounting soldered
    Power 1W
    Resistance 1MΩ
    Operating temperature -40...85°C
    IP rating IP67
    Tolerance ±20%
    Leads solder lugs
    Panel cutout diameter 10mm
    Knob dimensions Ø16x8mm
    Kind of potentiometer single turn
    Type of potentiometer shaft
    Track material cermet
    Characteristics linear
    Temperature coefficient 150ppm/°C
    Electrical rotation angle 270°
    Potentiometer features for industrial use, with knob
