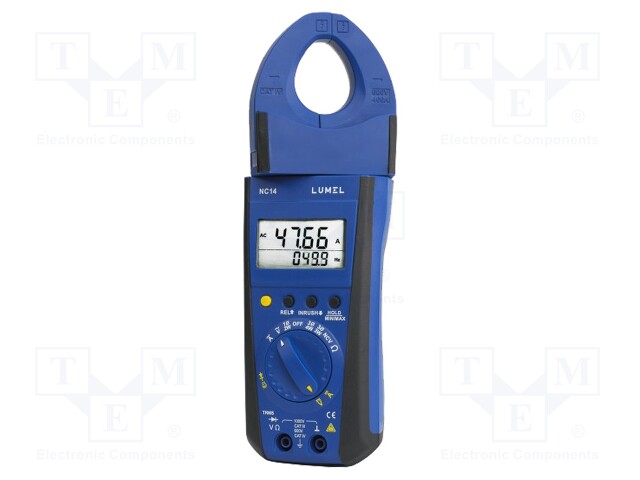

Power clamp meter; Øcable: 40mm; LED; I AC: 400A; VAC: 999,9V
Multiples:
1.0
Minimum quantity:
1.0
Product code:
NC14-100M1
Manufacturer: LUMEL
Manufacturer code: NC14-100M1
Product downloads
Specification for Power clamp meter; Øcable: 40mm; LED; I AC: 400A; VAC: 999,9V
Series | NC14 |
Dimensions | 90x270x70mm |
Kind of display used | LED |
Conform to the norm | CAT III 1000V, EN 61010 |
Measuring instrument features | automatic power-off, contactless voltage detector, HOLD function, low-pass filter, MIN/MAX function, with an extra quality inspection certificate |
Standard equipment | soft case, test leads |
Max. diameter of measured cable | 40mm |
Type of meter | power meter |
Measurement | AC current, AC voltage, active power, apparent power, crest factor, DC current, DC voltage, harmonics, inrush current, phase angle θ, power factor, reactive power, THD, peak current |
Weight with battery | 500g |
True effective value measurement | True RMS |
