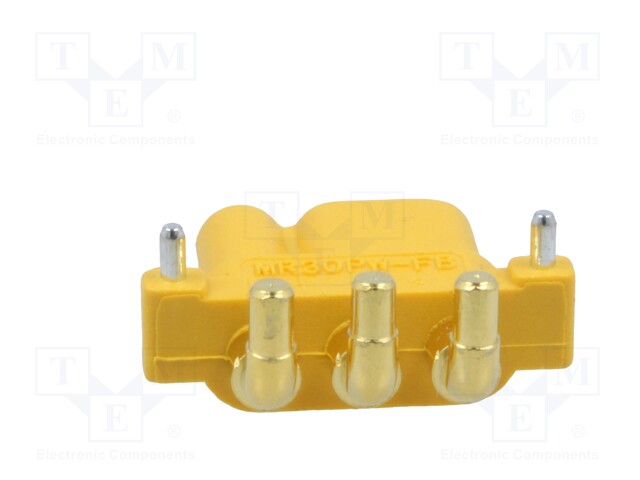

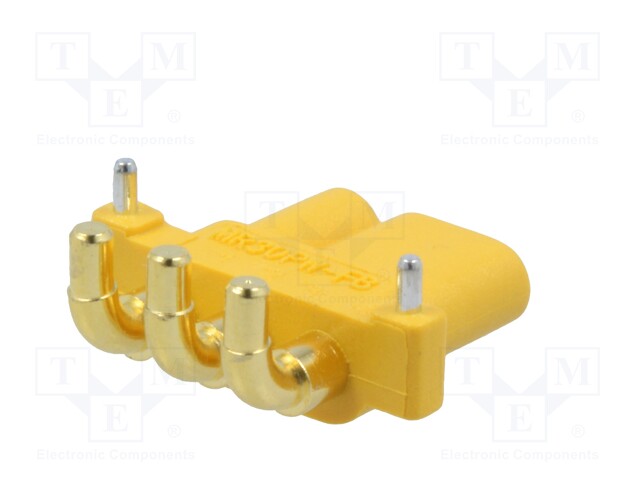

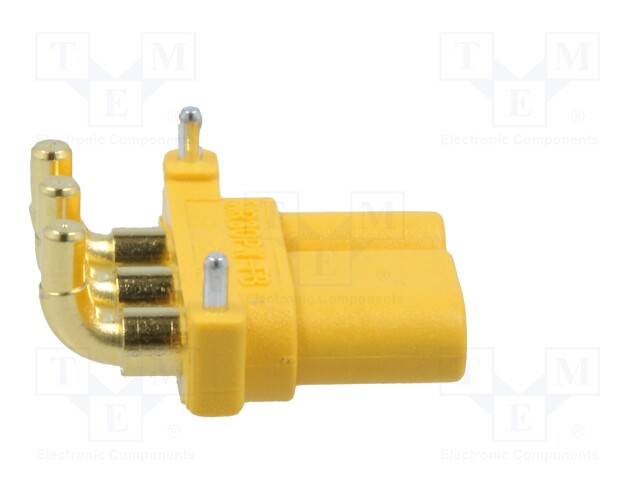

Socket; DC supply; MR30; female; PIN: 3; on PCBs; THT; Colour: yellow

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: MR30PW-FB
    Manufacturer: AMASS
    Manufacturer code: MR30PW-FB
    • Operating temperature
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Number of pins
    • Contact material
    • Body material
    • Flammability rating
    • Mechanical durability
    • Current rating
    • Rated voltage
    • Connector series
    • Spatial orientation

    1.44 € 1.44 € (wo VAT) 1.44 EUR

    1.44 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Socket; DC supply; MR30; female; PIN: 3; on PCBs; THT; Colour: yellow

    Operating temperature -20...120°C
    Electrical mounting THT
    Connector socket
    Kind of connector female
    Mechanical mounting on PCBs
    Colour yellow
    Contact plating gold flash
    Type of connector DC supply
    Number of pins 3
    Contact material brass
    Body material polyamide
    Flammability rating UL94V-0
    Mechanical durability 1000cycles
    Current rating 15A
    Rated voltage 500V
    Connector series MR30
    Spatial orientation angled 90°
