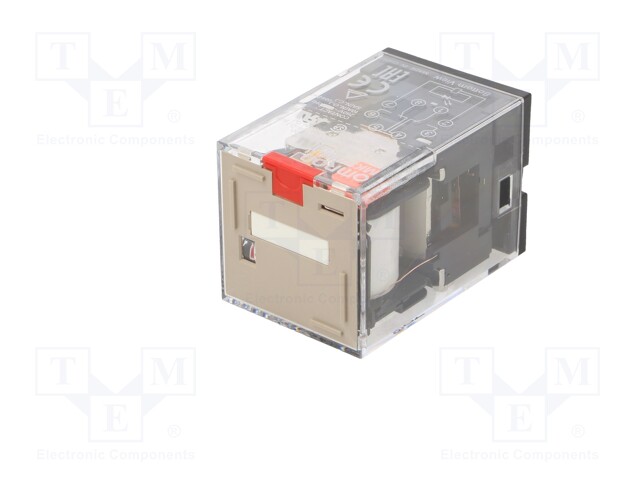

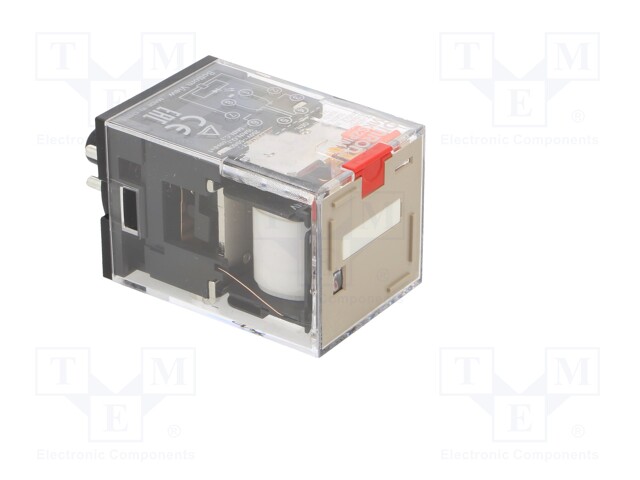

Relay: electromagnetic; DPDT; Ucoil: 24VAC; 10A/250VAC; 10A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: MKS2PIN AC24
    Manufacturer: OMRON
    Manufacturer code: MKS2PIN AC24
    • Mounting
    • Operating temperature
    • Kind of connector
    • Leads
    • Number of pins
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Electrical connection
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Optional equipment
    • Optional equipment
    • Optional equipment

    14.80 € 14.80 € (wo VAT) 14.8 EUR

    14.80 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 24VAC; 10A/250VAC; 10A/30VDC

    Mounting socket
    Operating temperature -25...60°C
    Kind of connector octal
    Leads stud terminals
    Number of pins 8
    Contact material AgSnIn
    Body dimensions 34.5x34.5x52.5mm
    Switched voltage max. 250V AC, max. 250V DC
    Electrical connection round socket
    Coil resistance 48.4Ω
    Contacts configuration DPDT
    DC contacts rating @R 10A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 2.3VA
    Relay series MKS
    Optional equipment LED indicator, mechanical indicator, test button with blocking function
