Relay: electromagnetic; 4PDT; Ucoil: 12VDC; 5A/240VAC; 5A/24VDC; 5A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: LB4HN-12DTS
    Manufacturer: RAYEX ELECTRONICS
    Manufacturer code: LB4HN-12DTS
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Indication
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time

    5.91 € 5.91 € (wo VAT) 5.91 EUR

    5.91 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; 4PDT; Ucoil: 12VDC; 5A/240VAC; 5A/24VDC; 5A

    Mounting socket
    Operating temperature -40...60°C
    Leads 2,5x0,5mm connectors

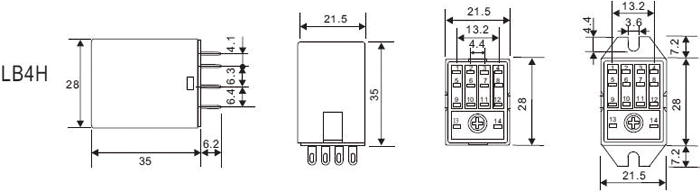

    Body dimensions 28x21.5x35mm
    Mechanical durability 10000000cycles
    Switched voltage max. 30V DC, max. 240V AC
    Indication LED
    Electrical life 100000cycles
    Coil resistance 160Ω
    Rated coil voltage 12V DC
    Contacts configuration 4PDT
    DC contacts rating @R 5A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 5A / 240V AC
    Contact current max. 5A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1.1W
    Relay series LB4HN
    Operate time 15ms
    Release time 15ms
