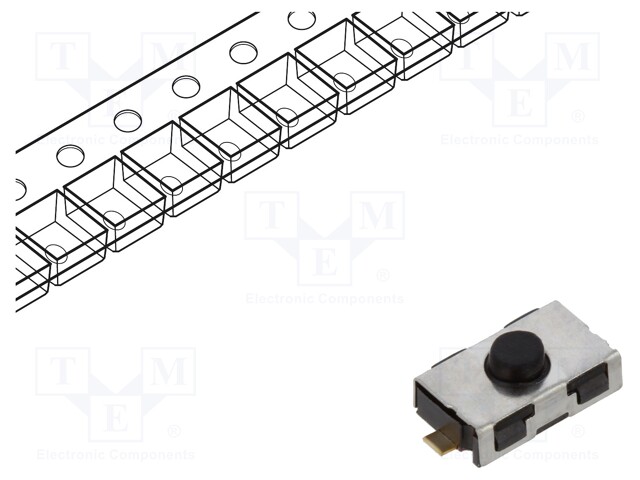

Microswitch TACT

    Multiples: 1.0
    Minimum quantity: 5.0
    Product code: KSR252GLFS
    Manufacturer: C&K
    Manufacturer code: KSR252GLFS
    • Mounting
    • Operating temperature
    • IP rating
    • Type of switch
    • Kind of package
    • Kind of package
    • Number of positions
    • Leads
    • Max. contact resistance:
    • Body dimensions
    • Mechanical durability
    • Quantity in package
    • Min. insulation resistance
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Button shape
    • Button height

    1.03 € 1.03 € (wo VAT) 1.03 EUR

    1.03 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Microswitch TACT

    Mounting SMT
    Operating temperature -40...85°C
    IP rating IP50
    Type of switch microswitch TACT
    Kind of package reel, tape
    Number of positions 2
    Leads for PCB
    Max. contact resistance: 100mΩ
    Body dimensions 6x3.8x1.75mm
    Mechanical durability 200000cycles
    Quantity in package 2500pcs.
    Min. insulation resistance 1GΩ
    Contacts configuration SPST-NO
    DC contacts rating @R 0.05A / 32V DC
    Switching method OFF-(ON)
    Stable positions number 1
    Operating Force 4.5N
    Button shape round
    Button height 2.5mm
