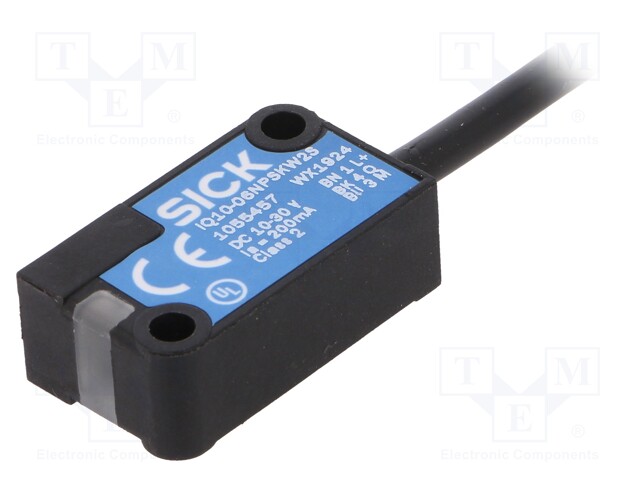

Sensor: inductive; 0÷6mm; PNP / NO; Usup: 10÷30VDC; 200mA; lead 2m

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: IQ10-06NPSKW2S
    Manufacturer: SICK
    Manufacturer code: IQ10-06NPSKW2S
    • Supply voltage
    • Operating temperature
    • IP rating
    • Body material
    • Body dimensions
    • Range
    • Output configuration
    • Overall length
    • Type of sensor
    • Connection
    • Switching frequency max
    • Kind of forehead

    76.41 € 76.41 € (wo VAT) 76.41 EUR

    76.41 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Sensor: inductive; 0÷6mm; PNP / NO; Usup: 10÷30VDC; 200mA; lead 2m

    Supply voltage 10...30V DC
    Operating temperature -25...75°C
    IP rating IP67
    Body material VISTAL
    Body dimensions 10x16x28mm
    Range 0...6mm
    Output configuration PNP / NO
    Overall length 28mm
    Type of sensor inductive
    Connection lead 2m
    Switching frequency max 2kHz
    Kind of forehead non-embedded
