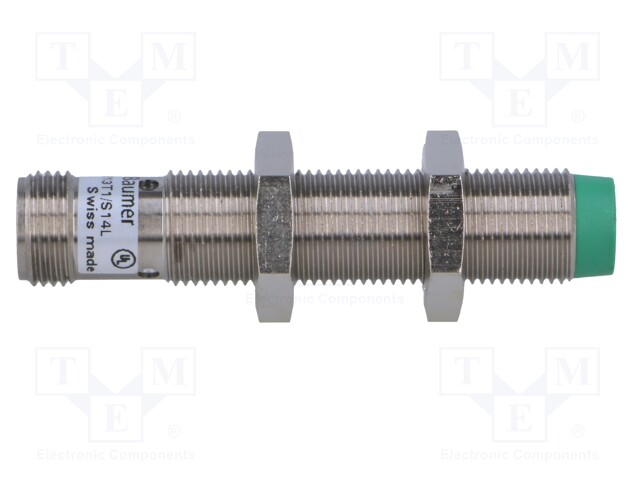

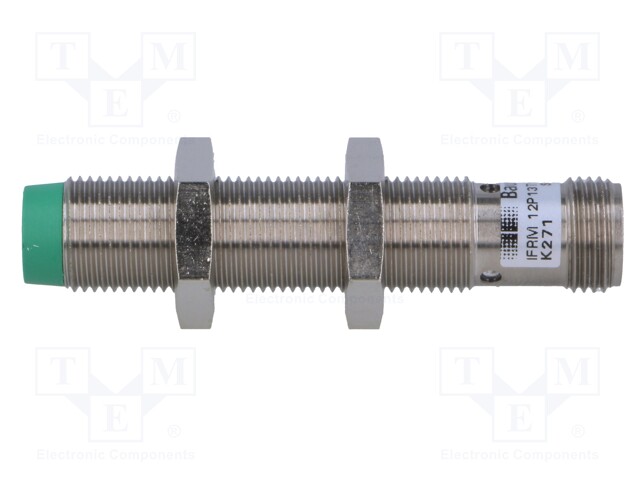

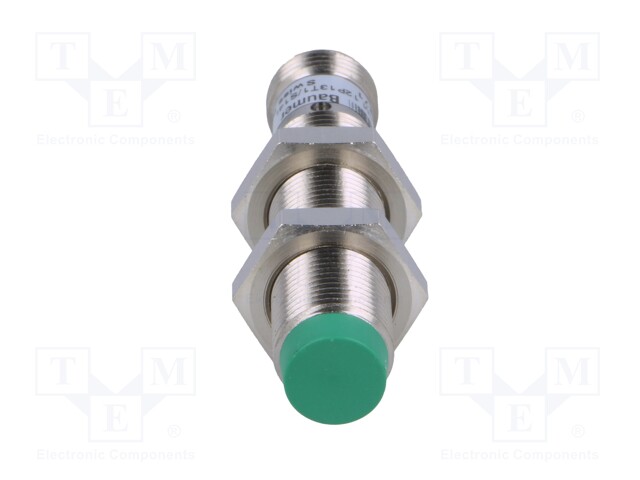

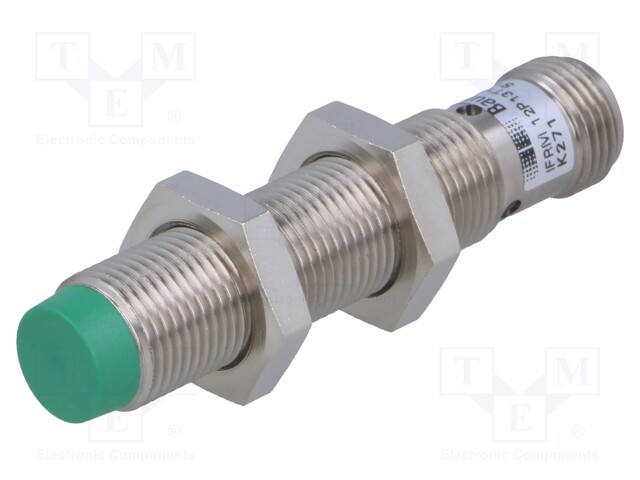

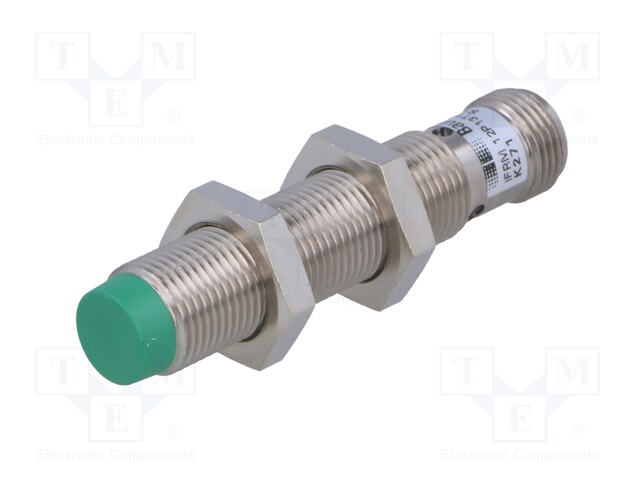

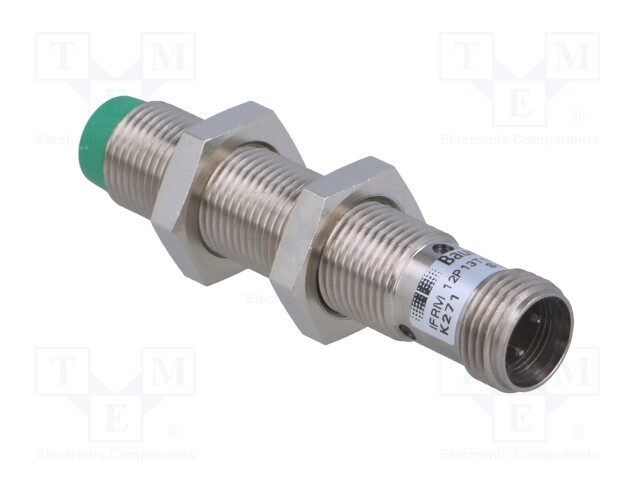

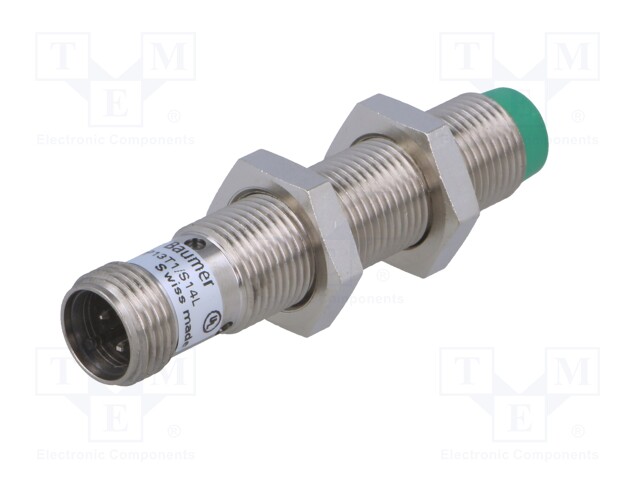

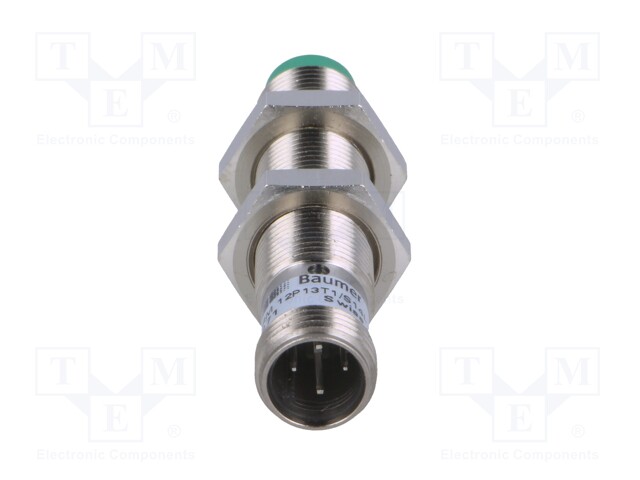

Sensor: inductive; Output conf: PNP / NO; 0÷6mm; 10÷30VDC; M12

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: IFRM 12P13T1/S14L
    Manufacturer: BAUMER
    Manufacturer code: IFRM 12P13T1/S14L
    • Supply voltage
    • Operating temperature
    • IP rating
    • Number of pins
    • Body material
    • Range
    • Output configuration
    • Overall length
    • Body plating
    • Type of sensor
    • Connection
    • Switch housing
    • Switching frequency max
    • Kind of forehead

    87.98 € 87.98 € (wo VAT) 87.98 EUR

    87.98 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Sensor: inductive; Output conf: PNP / NO; 0÷6mm; 10÷30VDC; M12

    Supply voltage 10...30V DC
    Operating temperature -40...80°C
    IP rating IP67
    Number of pins 4
    Body material brass
    Range 0...6mm
    Output configuration PNP / NO
    Overall length 60mm
    Body plating nickel
    Type of sensor inductive
    Connection connector M12
    Switch housing M12
    Switching frequency max 2kHz
    Kind of forehead non-embedded
