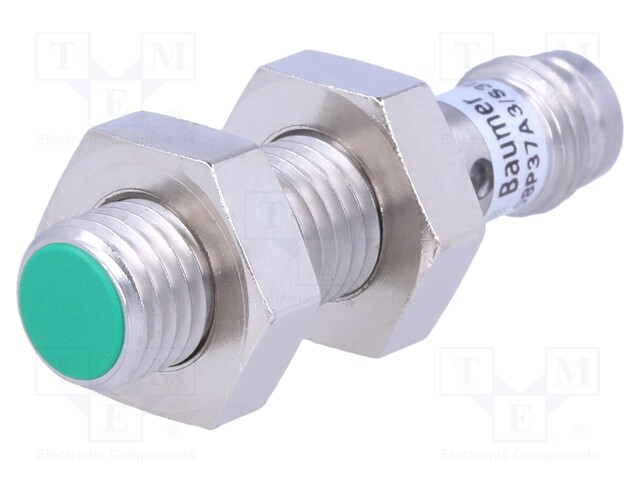

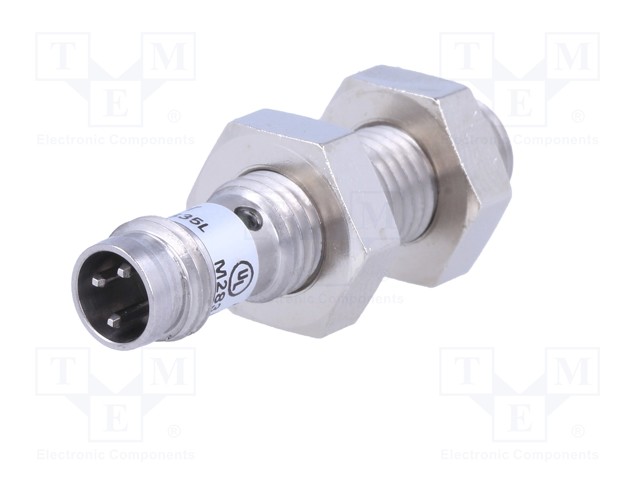

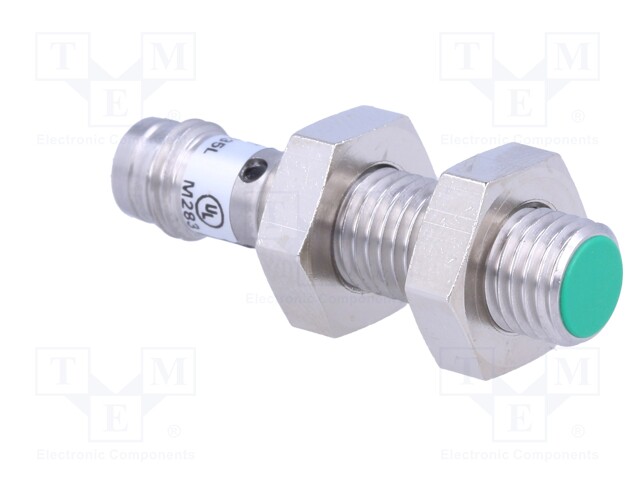

Sensor: inductive; Output conf: PNP / NC; 0÷2mm; 10÷30VDC; M8; IP67

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: IFRM 08P37A3/S35L
    Manufacturer: BAUMER
    Manufacturer code: IFRM 08P37A3/S35L
    • Supply voltage
    • Operating temperature
    • IP rating
    • Number of pins
    • Body material
    • Range
    • Output configuration
    • Type of sensor
    • Connection
    • Switch housing
    • Switching frequency max
    • Kind of forehead

    90.79 € 90.79 € (wo VAT) 90.79 EUR

    90.79 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Sensor: inductive; Output conf: PNP / NC; 0÷2mm; 10÷30VDC; M8; IP67

    Supply voltage 10...30V DC
    Operating temperature -25...75°C
    IP rating IP67
    Number of pins 3
    Body material stainless steel
    Range 0...2mm
    Output configuration PNP / NC
    Type of sensor inductive
    Connection connector M8
    Switch housing M8
    Switching frequency max 5kHz
    Kind of forehead embedded
