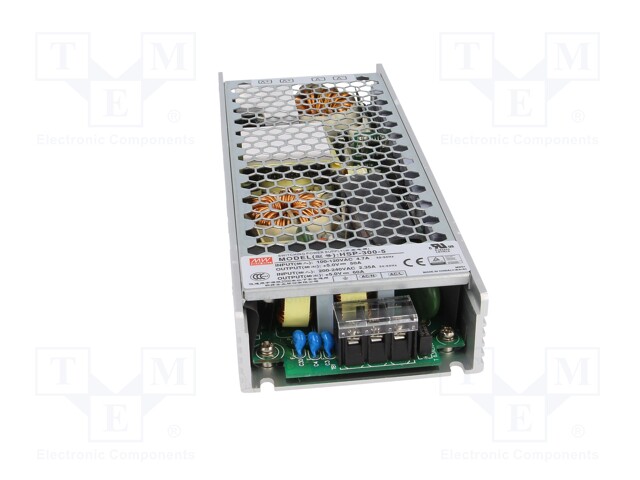

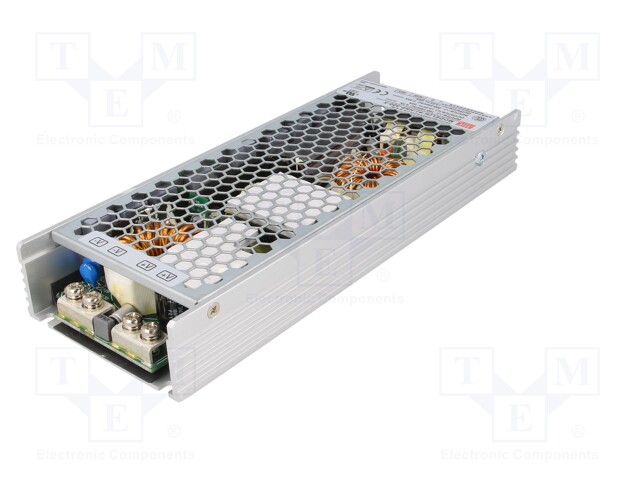

Power supply: switched-mode; modular; 300W; 5VDC; 210x81x32mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HSP-300-5
    Manufacturer: MEAN WELL
    Manufacturer code: HSP-300-5
    • Output current
    • Supply voltage
    • Supply voltage
    • Power
    • Operating temperature
    • Protection
    • Protection
    • Protection
    • Protection
    • Type of power supply
    • Series
    • Application
    • Body dimensions
    • Output voltage
    • Additional functions
    • Efficiency
    • Number of outputs
    • Electrical connection
    • Kind of power supply
    • Kind of case

    68.42 € 68.42 € (wo VAT) 68.42 EUR

    68.42 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Power supply: switched-mode; modular; 300W; 5VDC; 210x81x32mm

    Output current 60A
    Supply voltage 90...264V AC, 127...370V DC
    Power 300W
    Operating temperature -30...70°C
    Protection overheating, anti-overload, anti-overvoltage, short circuit protection
    Type of power supply switched-mode
    Series HSP-300
    Application for LED sign panels
    Body dimensions 210x81x32mm
    Output voltage 5V DC
    Additional functions active PFC
    Efficiency 87%
    Number of outputs 1
    Electrical connection terminal block
    Kind of power supply modular
    Kind of case 233B
