Power supply: switched-mode; modular; 600W; 30VDC; 280x144x48.5mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HEP-600-30
    Manufacturer: MEAN WELL
    Manufacturer code: HEP-600-30
    • Output current
    • Supply voltage
    • Supply voltage
    • Power
    • Operating temperature
    • Protection
    • Protection
    • Protection
    • Protection
    • Type of power supply
    • Series
    • Body dimensions
    • Output voltage
    • Additional functions
    • Additional functions
    • Efficiency
    • Number of outputs
    • Electrical connection
    • Kind of power supply
    • Kind of case

    248.04 € 248.04 € (wo VAT) 248.04 EUR

    248.04 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Power supply: switched-mode; modular; 600W; 30VDC; 280x144x48.5mm

    Output current 10...20A
    Supply voltage 90...264V AC, 127...373V DC
    Power 600W
    Operating temperature -40...70°C
    Protection overheating, anti-overload, anti-overvoltage, short circuit protection
    Type of power supply switched-mode
    Series HEP-600

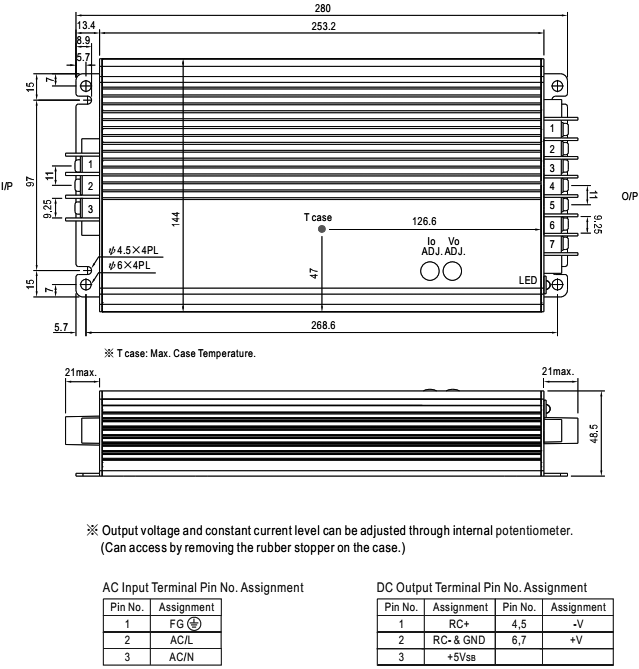

    Body dimensions 280x144x48.5mm
    Output voltage 30V DC
    Additional functions active PFC, adjustable output voltage and current level
    Efficiency 95.5%
    Number of outputs 1
    Electrical connection terminal block
    Kind of power supply modular
    Kind of case 228A
