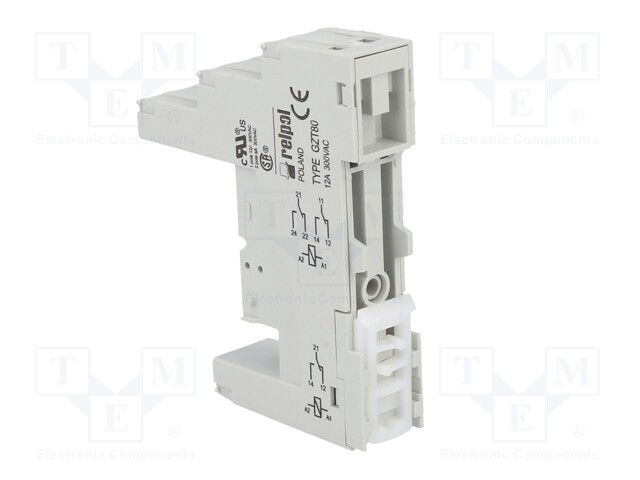

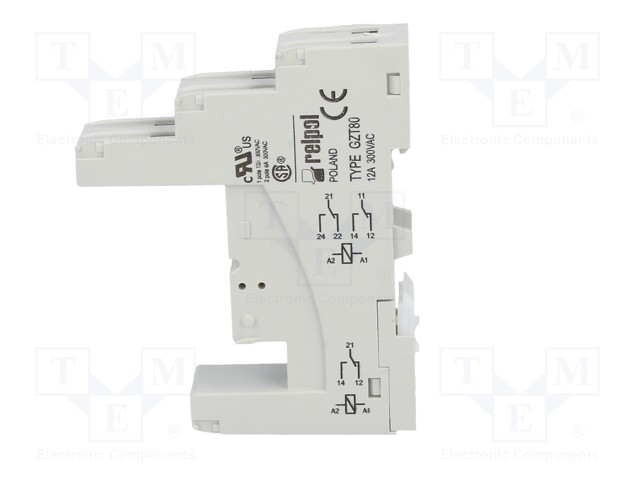

Socket; PIN: 8; 12A; 300VAC; Mounting: DIN,on panel; -40÷70°C
Multiples:
1.0
Minimum quantity:
1.0
Product code:
GZT80
Manufacturer: RELPOL
Manufacturer code: GZT80
Product downloads
Specification for Socket; PIN: 8; 12A; 300VAC; Mounting: DIN,on panel; -40÷70°C
| Mounting | on panel, for DIN rail mounting |
| Operating temperature | -40...70°C |
| Leads | screw terminals |
| Number of pins | 8 |
| Body dimensions | 75.3x15.5x61mm |
| Current rating | 12A |
| Rated voltage | 300V AC |
| Type of relays accessories | socket |
| Relay series | RM84, RM85, RM87L, RM87P, RMB841, RMB851 |
