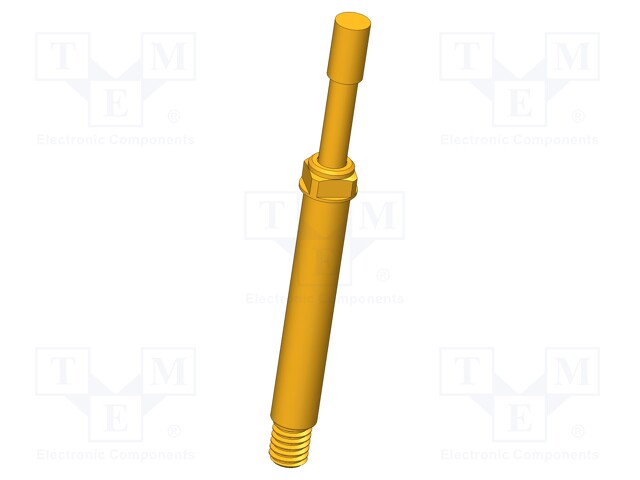

Needle-like test probe; GKS-103

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GKS-103 102 230 A 5002 M
    Manufacturer: INGUN
    Manufacturer code: GKS-103 102 230 A 5002 M
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Length
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Blade tip shape

    3.87 € 3.87 € (wo VAT) 3.87 EUR

    3.87 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Needle-like test probe; GKS-103

    Mounting screw-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material brass
    Max. contact resistance: 30mΩ
    Length 32.3mm
    Current rating 5A

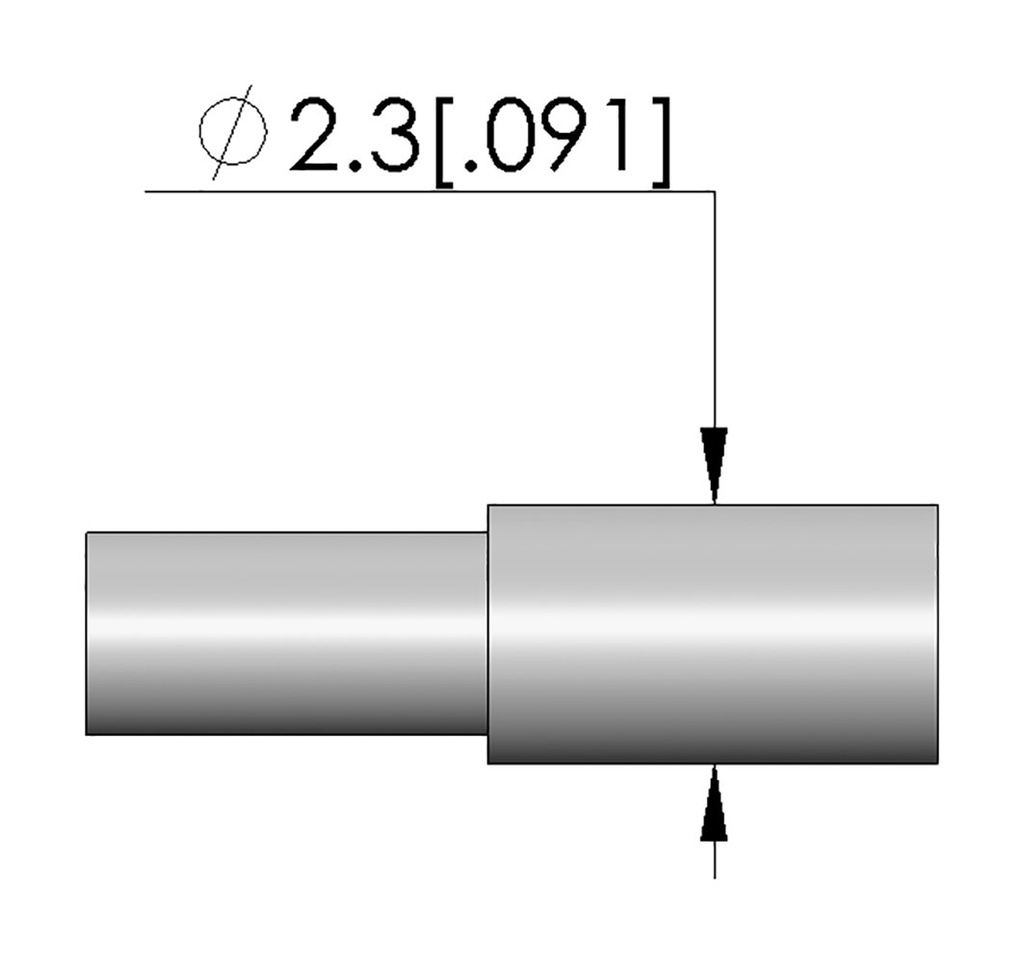

    Tip diameter 2.3mm
    Type of test accessories test probe
    Blade tip shape flat
