Needle-like test probe; Operational spring compression: 4.3mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GKS-075 303 120 A 2000 E
    Manufacturer: INGUN
    Manufacturer code: GKS-075 303 120 A 2000 E
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Length
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Maksimum spring compression

    4.56 € 4.56 € (wo VAT) 4.5600000000000005 EUR

    4.56 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Needle-like test probe; Operational spring compression: 4.3mm

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance: 20mΩ

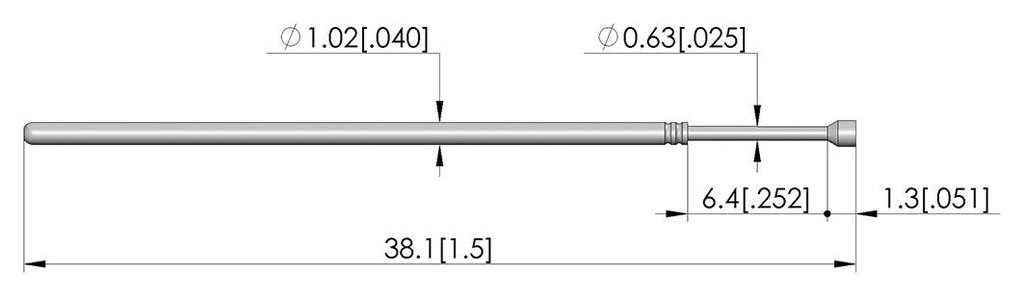

    Length 38.1mm
    Current rating 3A

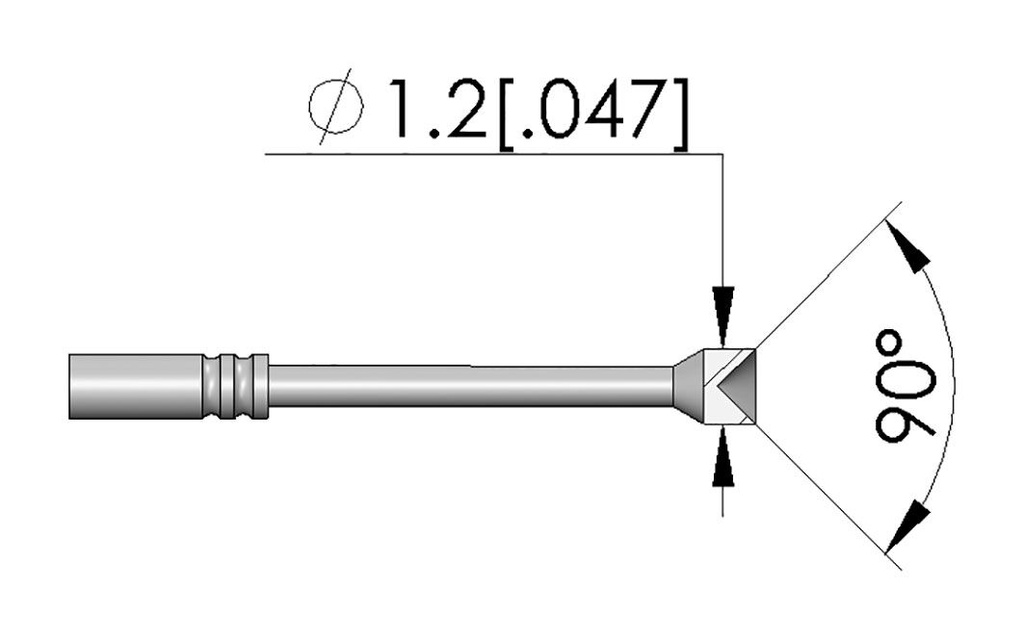

    Tip diameter 1.2mm
    Type of test accessories test probe
    Maksimum spring compression 6.35mm
