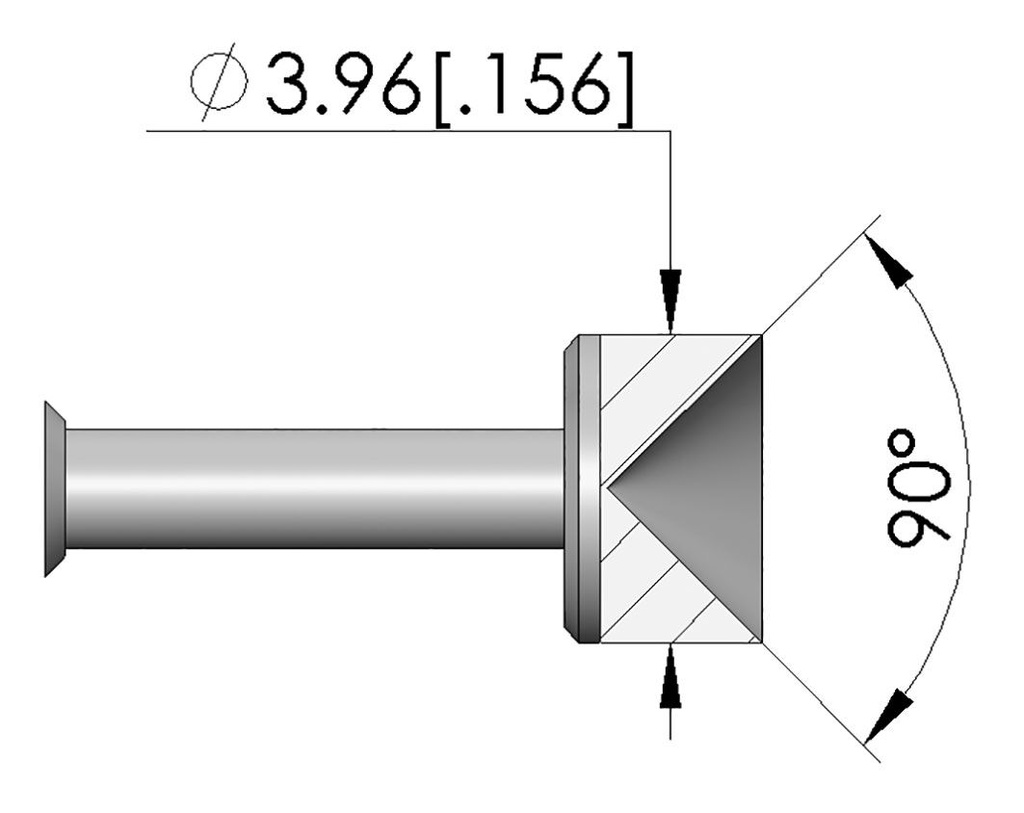

Test needle; Operational spring compression: 4.4mm; 6A; Ø: 3.96mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GKS-004 203 396 A 2000
    Manufacturer: INGUN
    Manufacturer code: GKS-004 203 396 A 2000
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Current rating
    • Type of test accessories
    • Maksimum spring compression

    2.85 € 2.85 € (wo VAT) 2.85 EUR

    2.85 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Test needle; Operational spring compression: 4.4mm; 6A; Ø: 3.96mm

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material steel
    Max. contact resistance: 20mΩ
    Current rating 6A
    Type of test accessories test probe
    Maksimum spring compression 6.35mm
